Marine standard bronze plug valve, Bronze plug valve, plug valve

Product Details

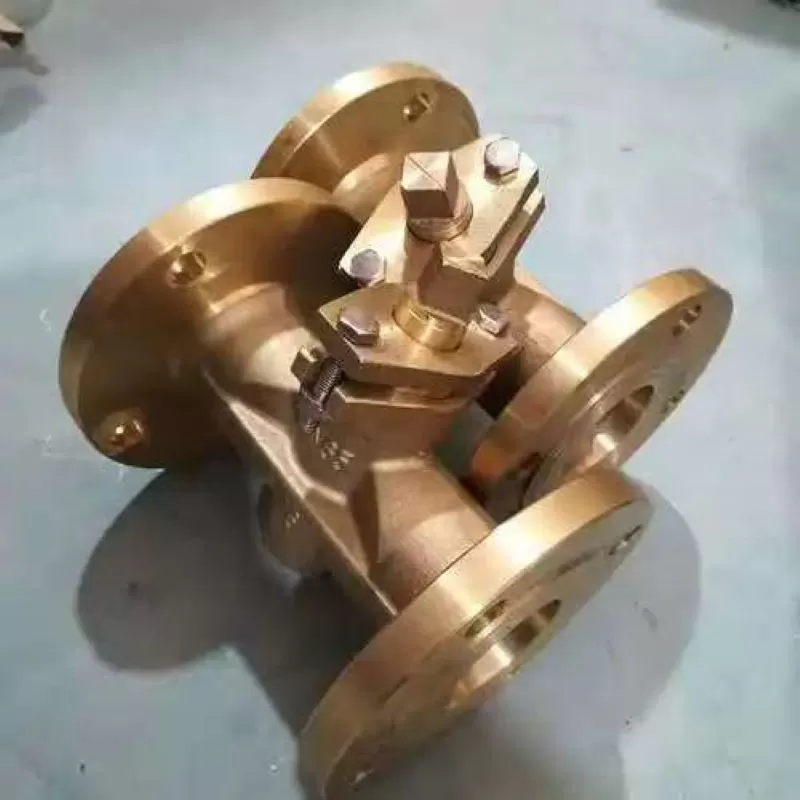

Marine Japanese STANDARD BRONZE PLUG VALVE is a BRONZE plug valve, designed for Marine piping system, in accordance with Japanese Industrial Standards (JIS). The following are its key features and uses:

Principle of operation

The plug valve rotates 90 degrees to make the plug and the valve body channel connected or closed to achieve fluid truncation or reversal. The sealing principle is based on the direct sealing of the metal contact surface, the structure is simple and the switch is quick, but the sealing is relatively weak, and it is mostly used for low pressure (≤1MPa) and small diameter (≤100mm) scenes. ‌

Material properties

Made of bronze (such as tin bronze or aluminum bronze), it has excellent resistance to seawater corrosion and is suitable for the humid salt spray environment of the ship. At the same time, the bronze material has low friction coefficient, which is suitable for frequent opening and closing scenes. ‌

Applicable scenarios

‌ Pressure rating ‌ : Usually applicable to ≤1MPa working pressure

‌ Temperature range ‌ : Operating temperature up to 325 ° C

‌ Medium compatibility ‌ : Suitable for corrosive liquids such as fresh water and sea water, some models support medium with suspended particles ‌

Structure type

According to the channel form, it is divided into straight, three and four, which can simplify the pipeline design and reduce the number of valves.

Marine standard bronze plug valve application field

‌ Host cooling system ‌ : Used to control the circulation and discharge of engine coolant to ensure the normal operating temperature of the host.

‌ Ballast Water system ‌ : Regulates the buoyancy balance of the hull, enabling water level management in the ballast tank.

‌ Fuel line ‌ : Control the flow of fuel to ensure the stability of the engine oil supply.

The valve has the function of a one-way valve and is suitable for scenes in the ship power system that require unidirectional flow of media, such as fire lines, lubrication systems, etc

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
