Product Code : VF--ZCC-HA23-CU
Product Introduction

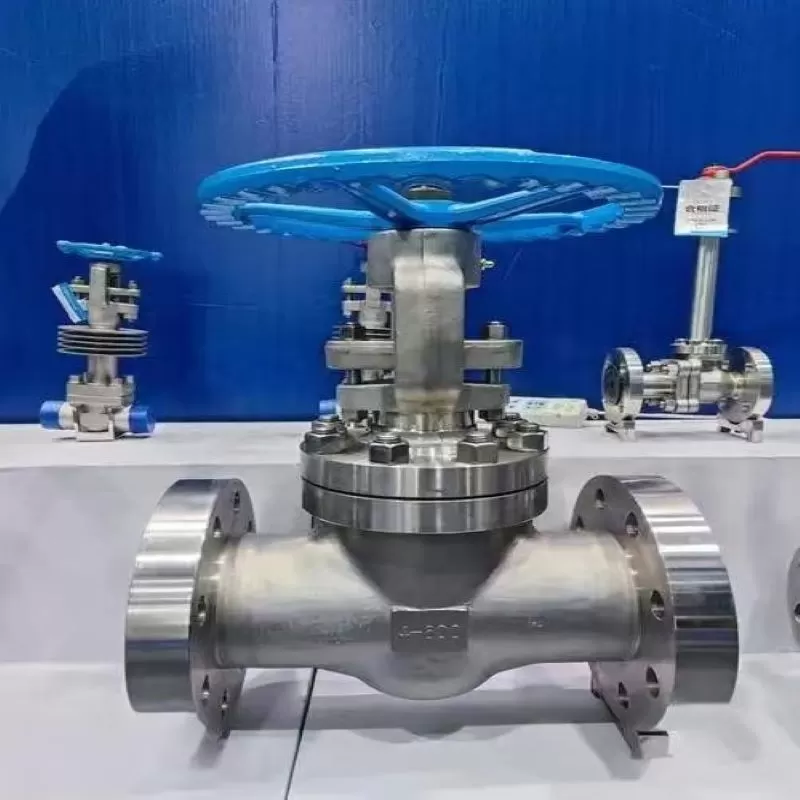

The Hastelloy gate valve has a compact structure, reasonable design, good valve rigidity, smooth channel and small negative flow coefficient.
2. It adopts flexible graphite and PTFE packing, ensuring reliable sealing and easy, flexible operation.
3. The drive methods are divided into manual, electric and gear pneumatic transmission.
4. Structural forms of Hastelloy G30 alloy gate valves: elastic wedge single gate plate, rigid wedge single gate plate and double gate plate forms.
Specification parameters
Pressure rating :PN1.0-16.0Mpa
Nominal diameter :DN15-DN600
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product advantages and features:
The advantage of the Hastelloy G30 alloy gate valve is its low flow resistance. The flow resistance of the non-constricted valve is similar to that of the short valve. The flat Hastelloy gate valve with a flow guide hole can also be directly installed on the pipeline
Clear the pipe with a pigging device. As the gate slides on the two valve seat surfaces, the flat plate gate valve can be applied to media with suspended particles, and the sealing surface of the flat plate Hastelloy gate valve is solid
It is automatically positioned. The sealing surface of the valve seat will not be damaged by the thermal deformation of the valve body.
The Hastelloy gate valve has a compact structure, reasonable design, good valve rigidity, smooth channel and small negative flow coefficient.
2. It adopts flexible graphite and PTFE packing, ensuring reliable sealing and easy, flexible operation.
3. The drive methods are divided into manual, electric and gear pneumatic transmission.
4. Structural forms of Hastelloy G30 alloy gate valves: elastic wedge single gate plate, rigid wedge single gate plate and double gate plate forms.
Specification parameters
Pressure rating :PN1.0-16.0Mpa
Nominal diameter :DN15-DN600
Corresponding models :Z11W-100H.B, Z40W-16H.B, Z40W-25H.B, Z40W-40H.B, Z40W-64H.B, Z40W-100H.B
Z40W-16H.B, Z40W-25H.B, Z40W-40H.B, Z40W-64H.B, Z40W-100H.C, 11W-16H.C, Z11W-25H. CZ11W-40H
. C, Z11W-64H.CZ11W-100H. CZ11W-16H. C, Z11W-25H, CZ11W-40H, C, Z110W-64H. CZ11W-100H
Main material
Hastelloy C276, Hastelloy G30, Hastelloy C, Hastelloy B, CW-6M, CW-12M, CW-7N
Hastelloy gate valves are widely used in the following fields:
Youdaoplaceholder0 Chemical Engineering : Performs well in chemical process media, especially in components and chemical systems that come into contact with chloride-containing organic compounds
Youdaoplaceholder0 Oil and gas : Suitable for high-temperature environments with inorganic and organic acids mixed with impurities
Youdaoplaceholder0 Metallurgy : Performs well in electrolyte circulation units
Youdaoplaceholder0 Food processing : Suitable for handling highly corrosive fluids
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
