Product Code : VF--ZCC-NL51-CU
Product Introduction
Design standards: API, ASME, EN, ISO, JIS, DIN, BS
Connection methods: Flange, Socket, Threaded, Butt-weld, Socket-weld
Pressure range: 150 - 2500 lbs, 1.0 - 42.0 MPa, JIS 10K - 40k
Size range: NPS 3/8" - 32", DN 10 - DN 80
Drive methods: handle, worm gear, gear, pneumatic, hydraulic, electric
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Details

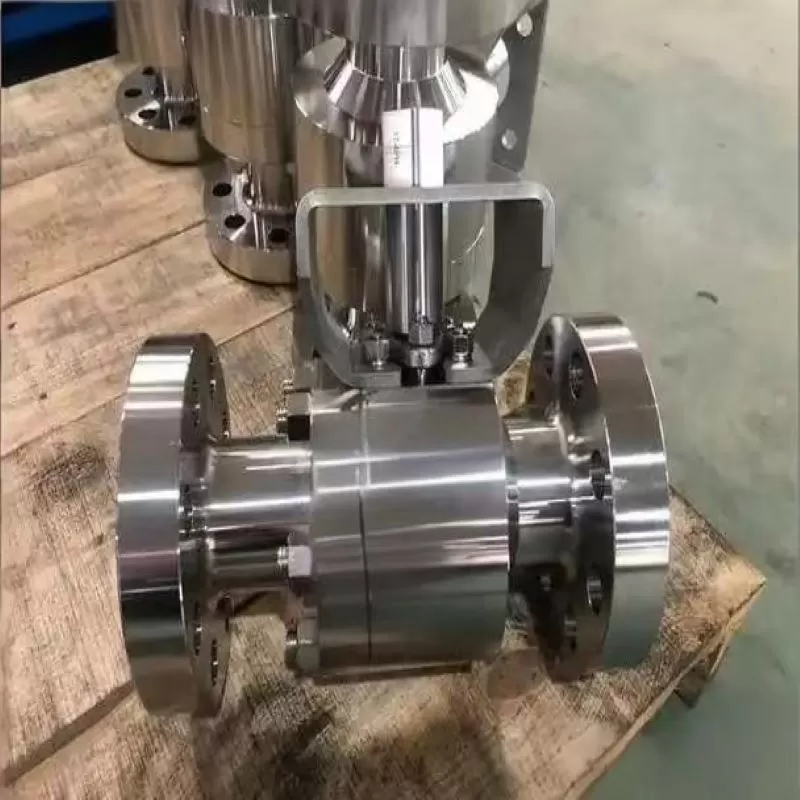

Main technical parameters of titanium ball valves: Design standards: API, ASME, EN, ISO, JIS, DIN, BS, GB. Connection methods: Flange, Socket, Thread, Welding, Socket Welding. Pressure range: Class 150 - 2500 Lb, 1.0 - 42.0 MPa, JIS 10K - 40K. Size range: NPS 3/8" - 32", DN 10 - DN 800. Drive methods: Handle, Worm gear, Gear, Pneumatic, Hydraulic, Electric actuator. Design features of titanium ball valves: Soft seal or hard seal, full diameter or reduced diameter. Fireproof and anti-static devices, double blocking and discharge function. Valve stem and valve seat grease system. Anti-slip valve stem. Self-release pressure in the middle chamber. Optional locking device. Low leakage design. Material and gland gland ISO5211 platform connection. Main body material of titanium ball valves: ZTA1, ZTA2, ZTA3, ZTA9, ZTA10, ZTC4 TA1, TA2, TA3, TA9, TA10, TC4. Titanium Gr2, Gr3, Gr5, Gr6, Gr7, Gr12. Titanium GrC2, GrC3, GrC5, GrC6, Ti-Pd7B, GrC12. Titanium GrF2, GrF3, GrF5, GrF6, GrF7, GrF12.
Application scenario
Chemical industry: Chlor-alkali industry, nitric acid production, etc. for transporting strong corrosive media.
Marine engineering: Seawater desalination, ship piping systems.
Pharmaceuticals/Food: Control of high-purity fluids, meeting hygiene standards.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
