Product Code : VF--ZCC-NI17-CU
Product Introduction

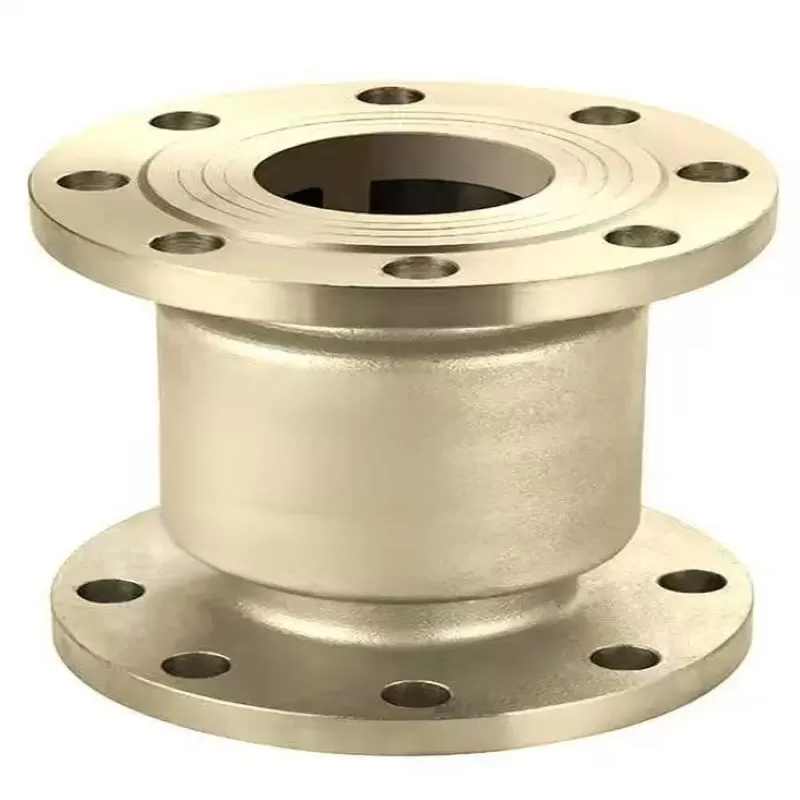

Youdaoplaceholder0 Insulated jacketed titanium discharge valve is a special type of valve mainly used in system pipelines where a certain temperature needs to be maintained for a long time to convey high-viscosity media that solidify at room temperature. The core feature is that a metal jacket is welded on the outside of the valve body, through which steam, hot oil or other hot insulating medium can flow, so that the viscous medium can flow smoothly through the valve
Pressure rating :PN1.0-4.0MPa
CLASS150-300Lb
Nominal diameter :DN50-DN250 2"-10"
Drive mode: manual, pneumatic, electric
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Youdaoplaceholder0 Insulated jacketed titanium discharge valve is a special type of valve mainly used in system pipelines where a certain temperature needs to be maintained for a long time to convey high-viscosity media that solidify at room temperature. The core feature is that a metal jacket is welded on the outside of the valve body, through which steam, hot oil or other hot insulating medium can flow, so that the viscous medium can flow smoothly through the valve
Structural characteristics
The insulated jacketed titanium discharge valve is usually divided into two types: top-spreading type and bottom-spreading type. When the handwheel of the upswing valve rotates forward, the valve stem moves upward and the valve closes. When the handwheel of the downswing valve is reversed, the valve stem descends and the valve closes. This design MAKES the VALVE EASY to operate, open and close freely, move flexibly and reliably
Technical parameters
Youdaoplaceholder0 Pressure class : PN1.0-4.0MPa, Class 150-300Lb
Youdaoplaceholder0 Nominal diameter : DN50-DN250 (2"-10")
Youdaoplaceholder0 Drive mode : manual, pneumatic, electric
Youdaoplaceholder0 Applicable medium : Oxidizing corrosive medium
Youdaoplaceholder0 Design standard : HG5-89-1, HG5-89-2, YTG45
Youdaoplaceholder0 Flange : API, ANSI, ISO, BS, DIN, NF, JIS
Application scenarios
The insulated jacketed titanium discharge valve is widely used in various industrial fields that require insulation, including petroleum, chemical engineering, metallurgy, pharmaceuticals, etc. Specific application scenarios include chlor-alkali industry, soda ash industry, fertilizer industry, fine chemical industry, textile fiber synthesis and dyeing industry, etc.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
