Product Code : VF--ZCC-NI6-CU

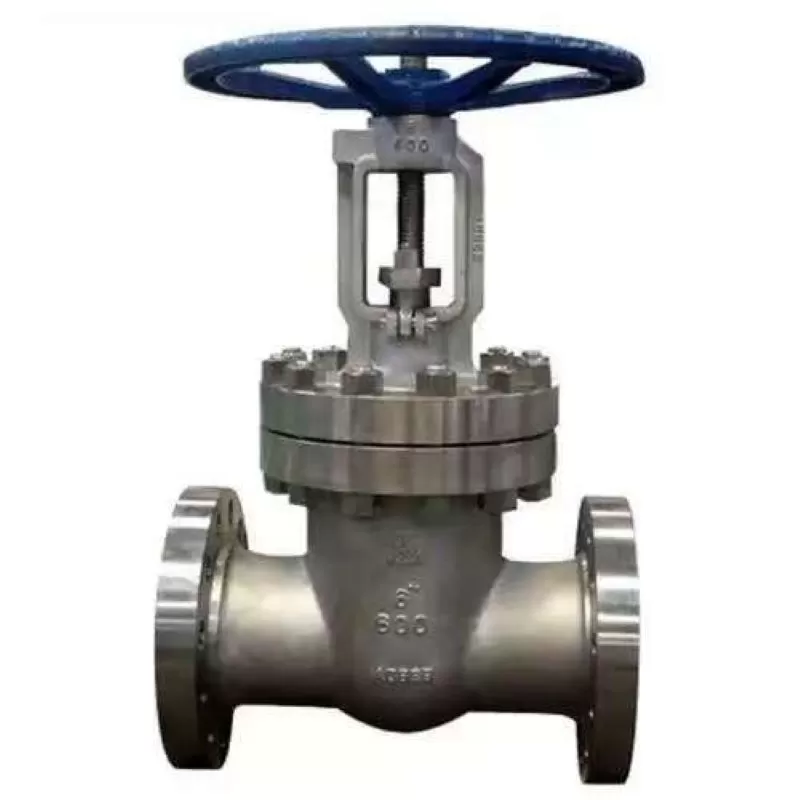

Zirconium gate valves usually adopt an open stem wedge structure, are connected by flanges, and are manually opened and closed. The sealing method is seal body sealing, suitable for cutting off or connecting strong oxidizing corrosive medium in pipeline, such as aqua regia, etc.
Zirconium gate VALVE 's opening and closing PART IS THE gate plate, THE movement direction of the gate plate IS perpendicular to the fluid direction CAN ONLY BE fully OPEN and fully CLOSED, CANNOT BE REGULATION and throttling
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Details
Zirconium gate valves, also known as zirconium alloy gate valves, usually adopt a rising stem wedge design, are connected by flanges, and are manually opened and closed. The sealing method is sealed body sealing, pressure range PN16-63, diameter range DN25-DN500
Material characteristics
The main material of zirconium gate valves is zirconium alloy, which has excellent corrosion resistance. It can withstand sulfuric acid medium up to 70% concentration and hardly corrode acetic acid medium up to 250 ° C
These characteristics enable zirconium gate valves to perform well in highly corrosive media.
Working principle
The opening and closing part of the zirconium gate valve is the gate plate, whose movement direction is perpendicular to the fluid direction. It can only be fully open or fully closed and cannot be regulated or throttled. The gate plate has two sealing surfaces, which are usually wedge-shaped to ensure a good sealing effect. When closed, the gate is pressed against the valve seat by medium pressure or external force to achieve sealing
Application scenarios
Zirconium gate valves are widely used in the chlor-alkali industry, soda ash industry, pharmaceutical industry, fertilizer industry, fine chemical industry, textile fiber synthesis and dyeing industry, as well as in the production of basic organic acids and inorganic salts, nitric acid industry and other fields. In these application scenarios, it is often necessary to handle media such as strong oxidizing corrosion
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
