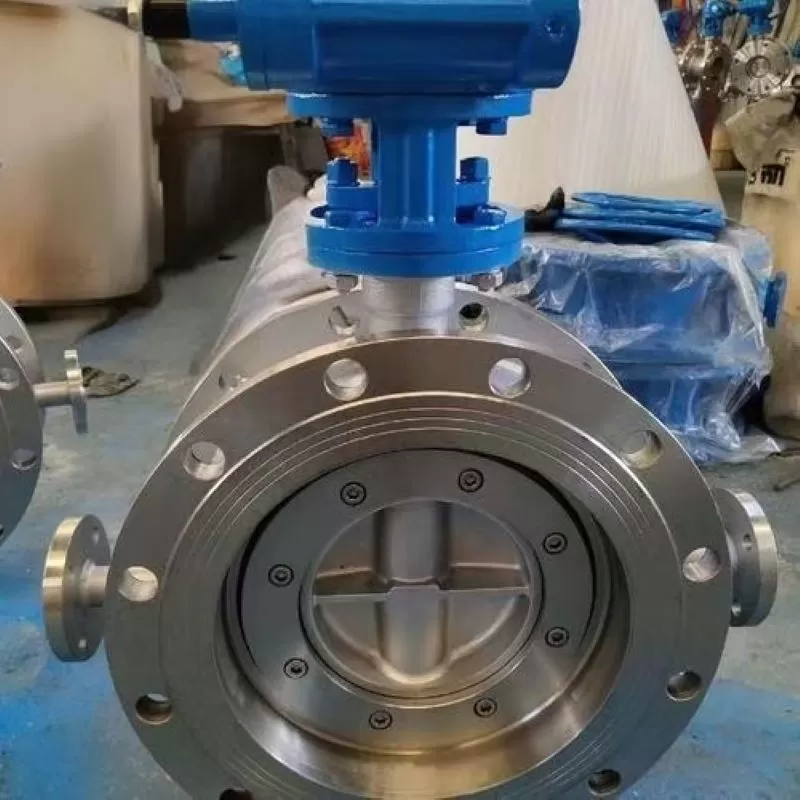

Insulated titanium butterfly valve，Insulated butterfly valve，butterfly valve

Product Details

Youdaoplaceholder0 Insulated titanium butterfly valve ‌ is a specially designed valve, mainly used to maintain the temperature of the medium in low-temperature environments to ensure that it does not solidify or freeze due to too low temperature during transportation.

Youdaoplaceholder0 Nominal diameter ‌ : DN50mm-DN300mm

Youdaoplaceholder0 Nominal pressure ‌ : PN1.0MPa-1.6MPa

Youdaoplaceholder0 Temperature range ‌ : -29 ° C to 300 ° C ‌

Working principle and application scenarios

The working principle of the insulated titanium butterfly valve is to install a jacket on the outside of the valve. Steam or other heat media can be introduced into the jacket, thereby maintaining the temperature of the medium inside the valve body. This design ensures that in low-temperature environments, the medium can flow smoothly and will not freeze or solidify due to excessively low temperatures. Insulated titanium butterfly valve is particularly SUITABLE FOR occasions where medium temperature needs to be maintained, such as in the chemical, oil, GAS and other industries for the transportation of low-temperature medium ‌

Materials and manufacturing processes

The main manufacturing material of the insulated titanium butterfly valve is titanium. Titanium is a highly chemically reactive metal that has a good affinity for oxygen and exhibits excellent corrosion resistance in both seawater and fresh water. The sealing structure of titanium butterfly valve adopts metal-to-metal sealing, ensuring good sealing performance at all temperatures ‌

Insulated titanium butterfly valve is mainly applied in the following fields ‌ :

Youdaoplaceholder0 Coal Chemical industry ‌ : Insulated titanium butterfly valves are used in the coal chemical industry to regulate and control the flow of media, ensuring safe operation in high-temperature and high-pressure environments ‌

Youdaoplaceholder0 Petrochemical industry ‌ : In the medium control systems of crude oil transportation pipelines, chemical production facilities, etc., the insulated titanium butterfly valve ensures the safe operation of the medium in high-temperature and high-pressure environments ‌

Youdaoplaceholder0 Steel smelting ‌ : Commonly used for medium control in high-temperature grate, gas pipeline and other systems to improve the operational efficiency and safety of smelting equipment ‌

Youdaoplaceholder0 Thermal power and hydropower ‌ : Widely used in key equipment such as boiler feed water systems and steam turbine regulating systems to ensure the stable operation of power plant equipment under complex working conditions ‌

Youdaoplaceholder0 Fertilizers and pesticides ‌ : Commonly used in medium control systems such as ammonia water transportation pipelines and fertilizer production facilities to ensure the safe transportation and stable regulation of the medium during the production process ‌

Youdaoplaceholder0 Food and medicine ‌ : Applied in key links such as food processing equipment and pharmaceutical production facilities to ensure the long-term stable operation of valves ‌

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
