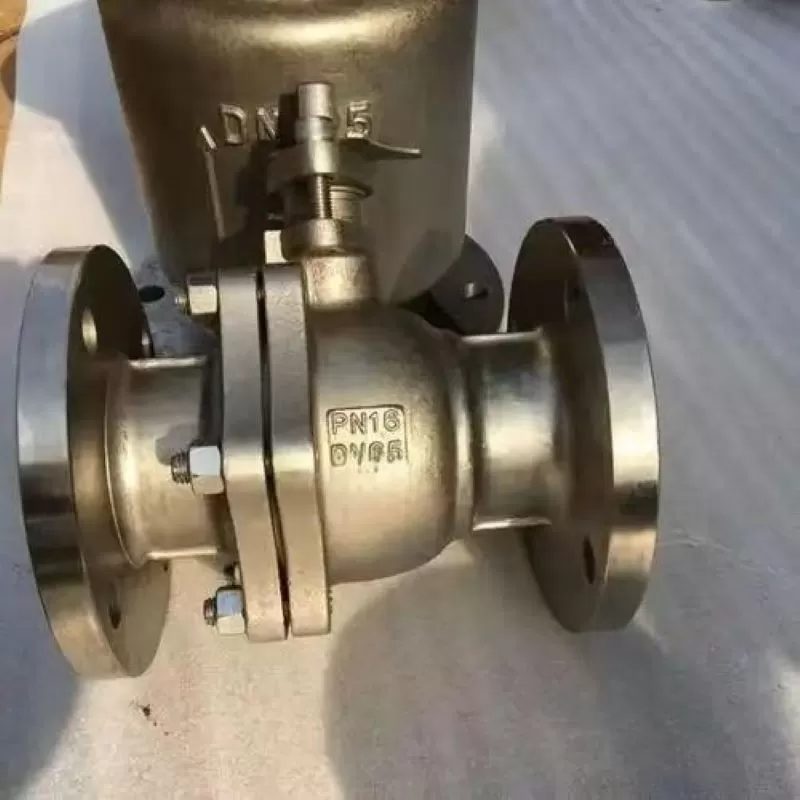

Monel alloy ball valve, Special material alloy ball valve, ball valve

Youdaoplaceholder0 Monel alloy ball valve ‌ is a ball valve made of Monel alloy material, mainly used to cut off or connect the medium in pipeline systems. The main materials of Monel alloy ball valves include Monel 400, Monel K500, M35-1 and M35-C, etc. These materials have high strength, high toughness and excellent corrosion resistance, especially excellent corrosion resistance to reducing acids, strong alkali media and seawater ‌

Performance characteristics

Youdaoplaceholder0 Corrosion resistance ‌ : Monel alloy ball valves have excellent corrosion resistance and can operate stably for a long time in acidic, alkaline and other corrosive environments ‌

Youdaoplaceholder0 Strength and toughness ‌ : Monel alloy material has high strength and good toughness, capable of withstanding high pressure and mechanical stress, ensuring the reliability of the valve under extreme conditions ‌

Youdaoplaceholder0 Sealing performance ‌ : The ball valve uses elastic materials such as polytetrafluoroethylene to make the sealing ring, ensuring good sealing performance. As the medium pressure increases, the sealing force will also increase ‌

Youdaoplaceholder0 Low flow resistance ‌ : Monel alloy ball valves are designed with low flow resistance, ensuring smooth fluid flow and are suitable for applications requiring efficient flow ‌

Youdaoplaceholder0 Easy to operate ‌ : The ball valve can be fully opened or fully closed by simply rotating 90 degrees, which is simple and quick to operate ‌

Structural characteristics

Monel alloy ball valve usually adopts the upper assembly structure, reduces the connecting bolts of the valve body itself, enhances the reliability of the valve, and can overcome the influence of system self-weight on the normal operation of the valve ‌

Compact valve body and passage design with low flow resistance coefficient, suitable for various media such as water, acid, solvent and natural gas ‌

Application field

Youdaoplaceholder0 Monel alloy ball valves are widely used in a variety of fields, including chemical and petrochemical, Marine development, food processing, paper, power and pharmaceuticals ‌‌

Chemistry and petrochemicals

Monel alloy ball valves are widely used in the fields of chemistry and petrochemicals. Monel alloy ball valves are suitable for medium control in these industries due to their excellent corrosion resistance, especially to strong corrosive media such as sulfuric acid, hydrofluoric acid, hydrochloric acid ‌

Monel 400, for example, is used in the alkylation unit of an oil refinery to make reactors for processing hydrofluoric acid, which can be used for long periods at high concentrations and temperatures ‌

Marine development

Monel alloy has better corrosion resistance in seawater than copper-based alloys, and thus is suitable for fluid control in Marine engineering. For example, used for manufacturing seawater treatment equipment, seawater pumps, offshore industrial equipment, structural components for oil platforms to prevent seawater corrosion, etc. ‌

Other fields

Monel alloy ball valves are also suitable for applications in food processing, papermaking, power, and pharmaceutical industries that require corrosion resistance and high-temperature resistance. For instance, in food processing, Monel alloy ball valves can be used to transport media such as alkali and salt solutions. In the paper and power industries, for applications requiring corrosion resistance and high temperature ‌

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
