Nickel-aluminum bronze check valve, Special material check valve, check valve

Youdaoplaceholder0 Nickel-aluminum bronze check valve ‌ is a valve used to prevent backflow of media, mainly made of corrosion-resistant nickel-aluminum bronze alloy. It is designed and manufactured in accordance with ANSI B16.34 and API6D ‌

Materials and Properties

The main material of the nickel-aluminum bronze check valve is C95800 nickel-aluminum bronze alloy, which has excellent corrosion resistance and is suitable for various corrosive media such as water, oil, gas and some highly corrosive liquids ‌

The casting process of the valve body adopts precision casting, high surface quality, stable internal quality, no surface defects such as sand sticking, cold lap, and no internal defects such as porosity, sand holes, cracks ‌

Structure and Working principle

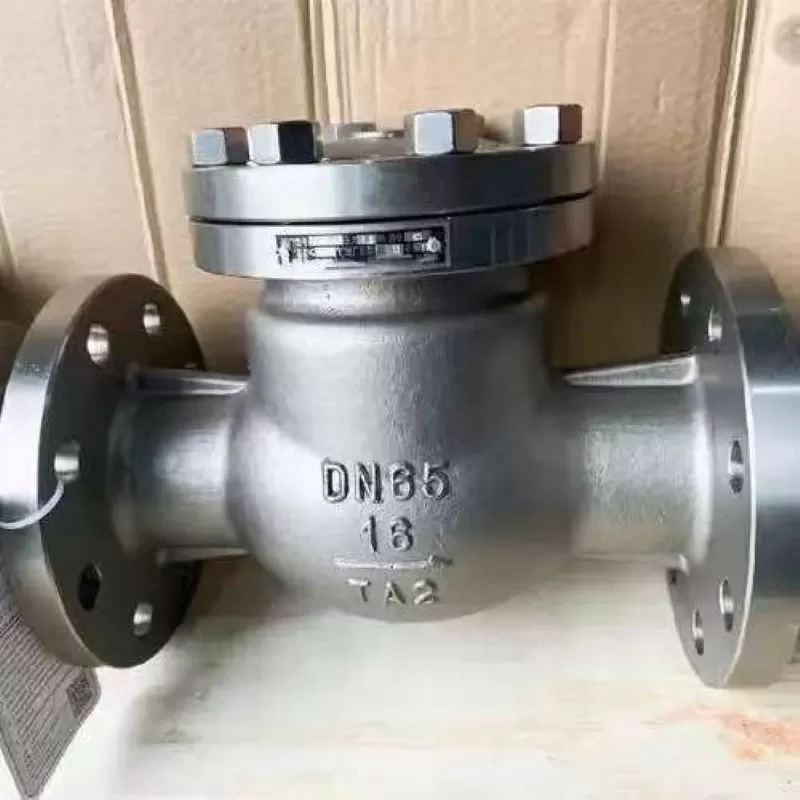

Nickel-aluminum bronze check valves usually adopt swing structure, and the opening and closing parts open or close by the force of the flowing medium by themselves. When the medium flows in the prescribed direction, the valve disc is opened under the action of the medium force. When the medium flows backward, the valve disc closes due to its own weight and the reverse force of the medium to fit with the valve seat sealing surface, thus preventing the medium from flowing backward ‌

This design makes the valve work reliably under high pressure and large bore conditions, reduces the connecting bolts of the valve body itself, enhances the reliability of the valve ‌

Youdaoplaceholder0 The application fields of nickel-aluminum bronze check valve mainly include the following aspects ‌ :

Youdaoplaceholder0 Water supply and drainage, fire protection, construction, HVAC, industrial systems ‌ : Nickel-aluminum bronze check valves are used in these fields to prevent backflow of media and protect equipment and systems from backflow ‌

Youdaoplaceholder0 Ships ‌ : Nickel-aluminum bronze check valves are used on the fuel oil, lubricating oil, water, air, kerosene and steam pipelines of ships with a temperature of 300 ° C or less to control the opening and closing of the medium and to prevent backflow ‌

Youdaoplaceholder0 Petrochemical, coal chemical, rubber, papermaking, pharmaceutical and other pipelines ‌ : In these fields, nickel check valves and nickel-aluminum bronze ball valves are widely used in medium diversion, convergence or flow direction switching devices ‌

Youdaoplaceholder0 Offshore platform seawater treatment system ‌ : Nickel-aluminum bronze material has good corrosion resistance and is suitable for Marine engineering such as seawater desalination ‌

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
