Sanitary three-way stop valve，Three-way stop valve，Stop valve

Product Details

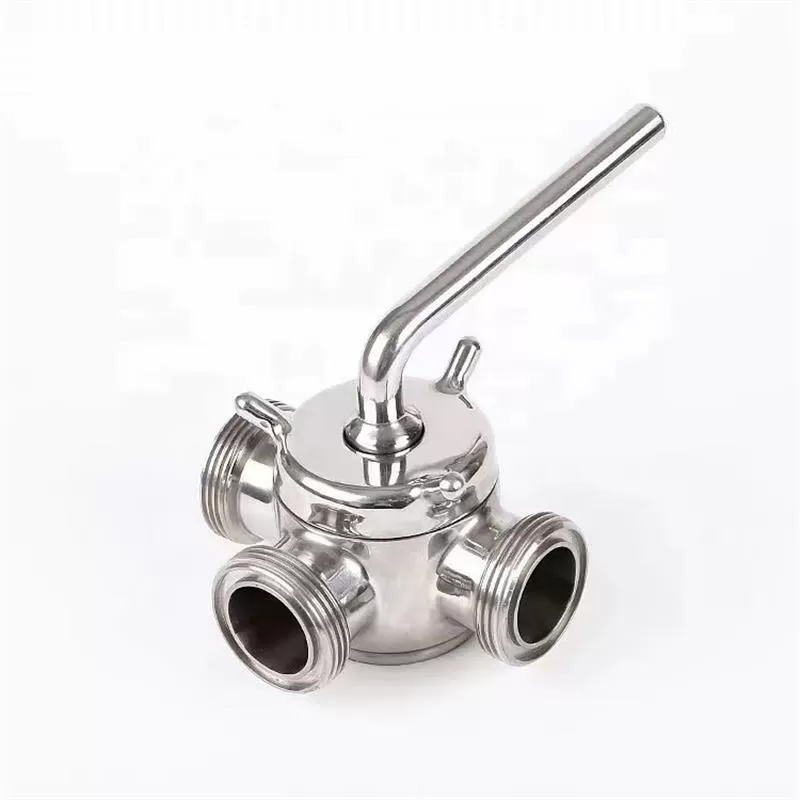

Youdaoplaceholder0 Sanitary three-way stop valve ‌ is a valve designed to meet high hygiene standards, usually made of stainless steel, with a smooth surface that is easy to clean and maintain. Its design takes into account the hygiene requirements of the fluid, can effectively prevent contamination, and ensure the safety and quality of the product.

Basic information

Sanitary three-way stop valves usually have three connection ports, among which two ports are the inlet and outlet, and the other port is the bypass or discharge port. Valve BODY, valve cover, valve core, valve SEAT and OTHER components are MADE of high-quality stainless steel MATERIAL, the surface is precisely polished to effectively prevent bacterial growth, ensure the fluid is not contaminated ‌

Characteristics

Multi-functional application: Mainly used for flow regulation control and reversing purposes, meeting the demands under different working conditions.

High-quality materials: The parts in contact with the medium are made of stainless steel and PTFE, ensuring hygiene and safety, and having excellent corrosion resistance.

High-temperature and high-pressure adaptability: The maximum temperature can reach 180℃, the maximum pressure resistance can reach 16bar, and it can also be used in a vacuum environment, adapting to various harsh working conditions.

No dead corners design: The valve body is designed with no dead corners, and the surface roughness can reach Ra0.4μm, avoiding medium residue and meeting high hygiene standards.

Embedded valve core seal: The valve core seal adopts an embedded design to enhance sealing performance and ensure the reliability of the valve.

Multiple specifications: The specifications range from 1/2" to 6", and from DN10 to DN150, which can meet the requirements of different flow rates and pipe sizes.

Rich connection standards: Connection standards include threads, clamps, flanges, BSP, NPT, DIN, etc., facilitating connection with different pipeline systems.

Optional working pressure and temperature: The working pressure is available in 8bar (standard) and 10bar (optional), and the working temperature is 120℃ (standard) and 180℃ (optional), meeting the requirements of different working conditions.

Application field

Youdaoplaceholder0 Food industry ‌ : Sanitary three-way stop valves are used in food production lines to control the flow direction of various liquid and semi-liquid foods, such as milk, fruit juice, soy sauce, etc. Its hygienic design ensures the cleanliness and safety of the fluid in the flow process, thereby improving the quality and taste of food ‌

Youdaoplaceholder0 Pharmaceutical industry ‌ : In the pharmaceutical production process, sanitary three-way stop valves are used to control the flow direction of pharmaceutical fluids such as liquid medicine and injection solutions, ensuring the stability and safety of the fluids during transportation and storage. Its precise flow control and good sealing performance prevent cross-contamination and ensure drug safety ‌

Youdaoplaceholder0 Chemical industry ‌ : In chemical production, sanitary three-way stop valves are used to control the flow direction of fluids in high-temperature, high-pressure or corrosive environments, ensuring the stability and safety of the production process. Its excellent corrosion resistance and heat resistance make it widely used in the chemical industry ‌

Youdaoplaceholder0 Bioengineering and pharmaceutical industry ‌ : In the fields of bioengineering and pharmaceuticals, sanitary three-way stop valves are used for fluid control in equipment such as cell culture, bioreactors, and liquid medicine preparation. Its precise flow control and good sealing performance ensure the stability and safety of the bioactive substance and liquid during transport and storage ‌

Youdaoplaceholder0 Daily chemical and cosmetic industry ‌ : In the production process of daily chemical and cosmetic products, sanitary three-way stop valves are used to control the mixing and separation of raw materials, additives and water to ensure the quality and safety of the final products. Its hygienic design and excellent sealing performance meet the high requirements for equipment in cosmetic production ‌

Youdaoplaceholder0 Environmental protection engineering ‌ : In environmental protection engineering, sanitary three-way stop valves are used for fluid control in processes such as wastewater treatment and waste gas discharge. Its excellent corrosion resistance and sealing performance ensure the effectiveness and safety of environmental protection projects ‌
