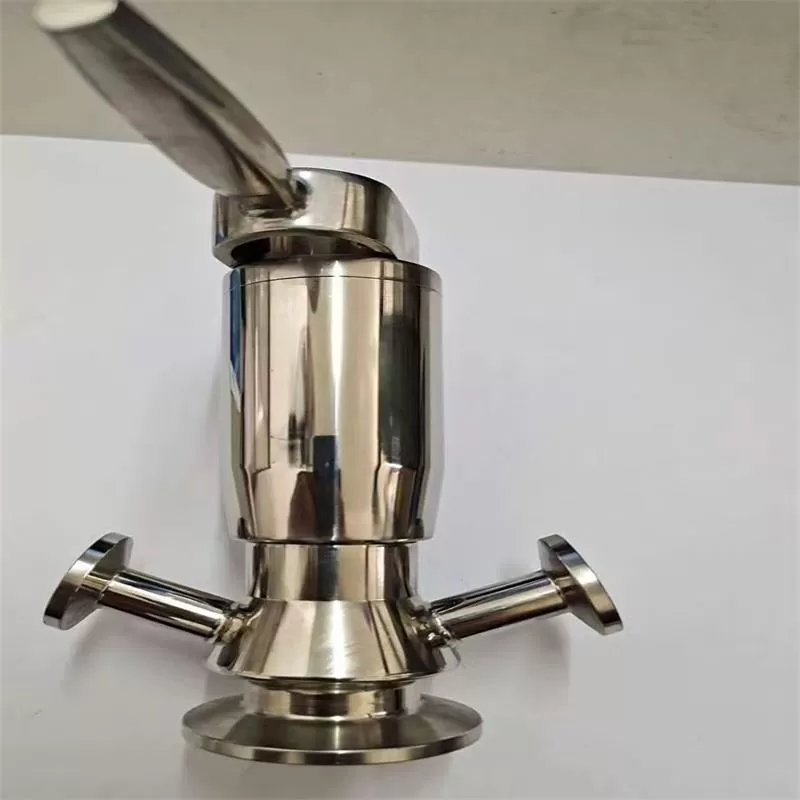

Sanitary sampling valve, Sampling valve, Sanitary grade valve

Product Details

Sanitary sampling valves are widely used in industries with extremely high hygiene requirements such as beer, milk, beverages, fruit juice, and pharmaceuticals. In the beer industry, ensure the accuracy and hygiene of beer quality inspection; In the milk and beverage industry, provide reliable sampling approaches for product quality monitoring; In juice production, it helps to control the quality of juice. In the pharmaceutical field, it meets the strict requirements for drug quality inspection.

Characteristics

Sterile design: This sterile sampling valve sterilizes before and after each sampling to ensure the sterility of the sampling process.

Unique operation method: Open the valve through the barbar handle, which is simple and convenient to operate. When the valve is closed, the built-in spring comes into play, keeping the passage between the hoses open while closing the valve, which is convenient for disinfection. If steam disinfection is used, it is recommended to install a small pressure safety valve at the outlet.

Multiple connection methods: The connection methods include clamps, welding, tank connectors, multi-channel pipeline connectors, etc., which are convenient for connection with different pipeline systems.

High-quality material: The valve body adopts AISI 316L (1.4404) ASME BPE 316L, which has excellent corrosion resistance and hygiene performance. Diaphragms are available in EPDM and PTFE to meet different usage requirements.

Wide temperature adaptability range: The maximum temperature varies depending on the material of the diaphragm. The maximum temperature of EPDM diaphragms is 130℃, and that of PTFE diaphragms is 150℃, suitable for different working environment temperatures.

High pressure resistance: The pressure can reach up to 10bar, ensuring stable operation under various working conditions.

Complete certifications: Certified by 3-A-55-02 and PED/97/23/EC, reliable and guaranteed quality.

It should be applied in the appropriate context

Food industry

In the food INDUSTRY, sanitary grade sampling valve is widely used for sampling of liquid and semi-liquid materials such as milk, juice, beverage, condiment, to ensure product quality and safety ‌

These valves are designed and manufactured strictly in accordance with hygiene standards. The valve bodies are usually made of high-grade materials such as stainless steel 316L. All parts in contact with the medium need to be mirror-polished to achieve extremely high cleanliness and smoothness ‌

Pharmaceutical industry

In the pharmaceutical industry, sanitary-grade sampling valves are used for sampling various drug preparations and intermediates to ensure the quality and purity of drugs. Especially in a sterile production environment, the sampling process must ensure no cross-contamination and be repeatable. Common sampling valves include single-port sampling valve and double-port sampling valve, which can meet large capacity sampling while also ensuring low cost and sterile of each sampling ‌

Biotechnology industry

In the biotechnology industry, sanitary sampling valves are used for sampling biological samples such as cell culture media and fermentation broth, ensuring the accuracy and reliability of experiments. These valves are designed with particular attention to key indicators such as cross-contamination, sealing and sterility ‌

The brewing industry

In the brewing industry, sanitary sampling valves are also widely used. They ensure that samples are collected during the brewing process in accordance with hygiene standards, which guarantees the quality and safety of the wine ‌

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
