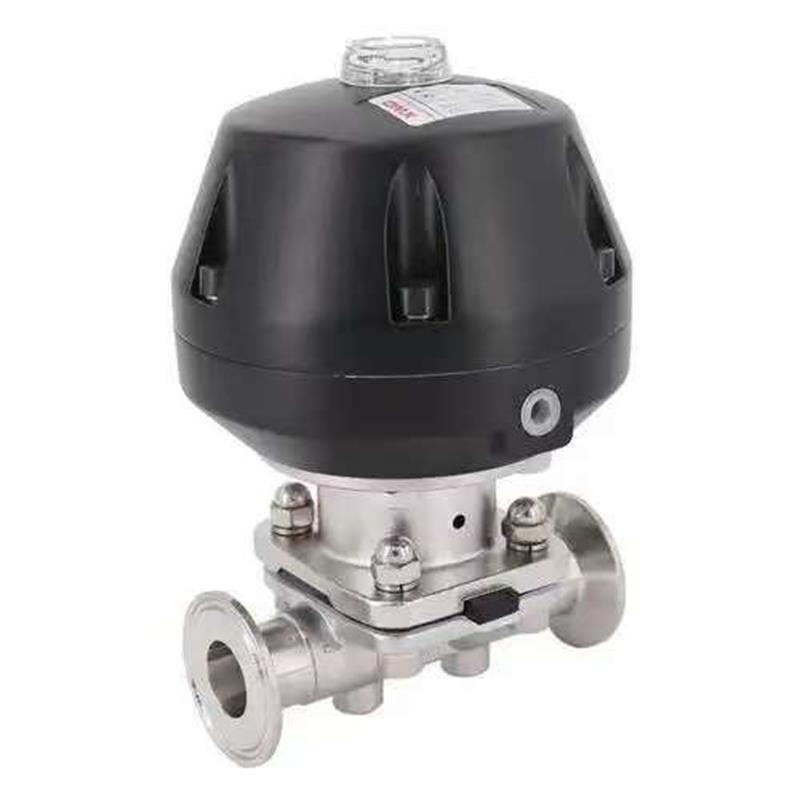

Sanitary pneumatic diaphragm valve for tank bottom，Sanitary pneumatic diaphragm valve，Diaphragm valve

Product Details

Youdaoplaceholder0 Sanitary pneumatic tank bottom diaphragm valve ‌ is a type of valve used in industrial environments with extremely high hygiene requirements, mainly for the control of fluid at the bottom of tank equipment in the food, pharmaceutical, cosmetic and other industries. Its design is unique and its performance is excellent, which can ensure the efficiency and safety of the production process.

Working principle

The sanitary pneumatic diaphragm valve at the bottom of the tank is driven by a pneumatic actuator, with compressed air as the power source. The double-acting actuator can generate driving force during both intake and exhaust, enabling the rapid opening and closing of the valve. Single-acting actuator opens the valve when air enters and closes the valve by spring return, SUITABLE FOR situations where the valve can close automatically when air source fails ‌

When the control system sends the open signal, compressed air enters the air inlet of the pneumatic actuator, pushes the piston or diaphragm to move, drives the valve stem and diaphragm to move, opens or closes the valve ‌

Application field

Youdaoplaceholder0 Food industry ‌ : In the food industry, sanitary pneumatic tank bottom diaphragm valves are used to control the fluid at the bottom of tank equipment to ensure hygiene and safety in the food production process. Its exquisite structure and corrosion-resistant material enable it to withstand various acidic and alkaline media and complex chemical environments, ensuring the purity of food ‌

Youdaoplaceholder0 Pharmaceutical industry ‌ : In the pharmaceutical industry, sanitary pneumatic tank bottom diaphragm valves are specifically designed for hygienic and aseptic processes and are suitable for fluid control and on-off tasks. Its superior flow control and cleaning performance make it important in pharmaceutical processes ‌

Youdaoplaceholder0 Cosmetics industry ‌ : As cosmetics production also has very high requirements for hygiene conditions, sanitary pneumatic tank bottom diaphragm valves are also widely used in these industries to ensure hygiene and safety during the production process ‌
