Youdaoplaceholder0 Sanitary regulating ball valve ‌ is a type of valve equipment used for precise control of fluid flow, widely applied in industries with high cleanliness requirements such as food, medicine and chemical engineering. Its design and manufacture strictly adhere to hygiene standards to ensure safety and reliability when handling sensitive or corrosive media.

Structure and Working principle

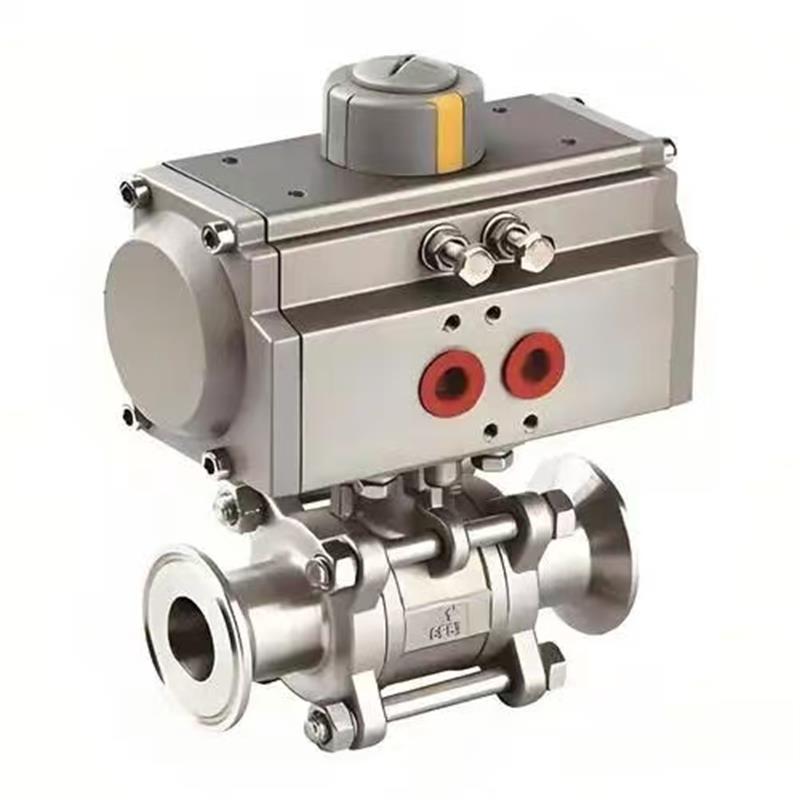

The sanitary regulating ball valve is mainly composed of the valve body, ball core, valve seat, pneumatic actuator and sealing parts, etc. The valve body is usually made of stainless steel, such as 316L stainless steel, which has good corrosion resistance and hygiene performance. The ball core is the core component of a ball valve. A circular through hole is opened on its ball, and the on-off state and flow rate of the fluid are controlled by rotating the ball core. The valve seat adopts high-performance sealing materials, such as polytetrafluoroethylene (PTFE) or other special composite materials, to ensure reliable sealing under various working conditions. Pneumatic actuator receives signals from the control system, drives the piston to move through compressed air, drives the ball core to rotate, thereby achieving precise flow regulation ‌

Multiple types are available: they are divided into straight-through, three-way, tank bottom and other types of ball valves to meet the needs of different process layouts and application scenarios.

Pneumatic proportional valve design: As a pneumatic proportional valve, it is equipped with a flow control design device, which can achieve precise flow regulation.

Wide temperature adaptability: The maximum temperature can reach -20 to 120℃, and it can operate stably in different working environments

Rich connection methods: The connection methods include clamps, threads, welding, flanges, etc., which comply with standards such as DIN, SMS, RJT, and ISO, making it convenient to connect and install with various pipeline systems.

Application field

Food processing industry

In the food processing industry, sanitary regulating ball valves are widely used in the transportation and filling processes of liquid foods such as milk, fruit juice and beer due to their excellent corrosion resistance and easy cleaning. It can effectively prevent product contamination and ensure the safety and quality of food. In addition, in the CIP (Clean in Place) system of dairy and meat processing plants, sanitary grade regulating ball valve ensures regular cleaning and disinfection of production equipment, improving hygiene standards of production environment ‌

Pharmaceutical industry

In the pharmaceutical industry, the application of sanitary-grade regulating ball valves is equally important. It can ensure that the raw material ratio of the drug, the mixing reaction, as well as the flow control in the filling and sub-packaging of the preparation are precise and error-free, thereby guaranteeing the quality and stability of the drug's efficacy. Its high precision adjustment ability and reliable sealing enable the production indicators of the drug in aseptic operating environment to meet the strict industry standards ‌

In addition, with the development of biotechnology and biopharmaceuticals, sanitary grade regulating ball valve is also applied in bioreactors, cell culture systems and other high-precision biological processes, promoting the innovation and development of biotechnology ‌

Chemical industry

In the field of chemical engineering, sanitary-grade regulating ball valves play a significant role in the precise allocation of chemical fluids due to their outstanding performance and precise control capabilities. It can precisely adjust the flow rate according to the process requirements, and the error can be controlled within an extremely small range. For example, in fine chemical synthesis reactions, sanitary grade regulating ball valve can provide the required FLOW steadily, ensure the smooth progress of the reaction, improve the quality stability and consistency of products ‌

The field of biotechnology

In the field of biotechnology, sanitary regulating ball valves have also been widely applied. It provides more precise and controllable experimental conditions for researchers, promotes the innovation and development of biotechnology ‌
