Product Code : VF--ZCC-WS11-CU

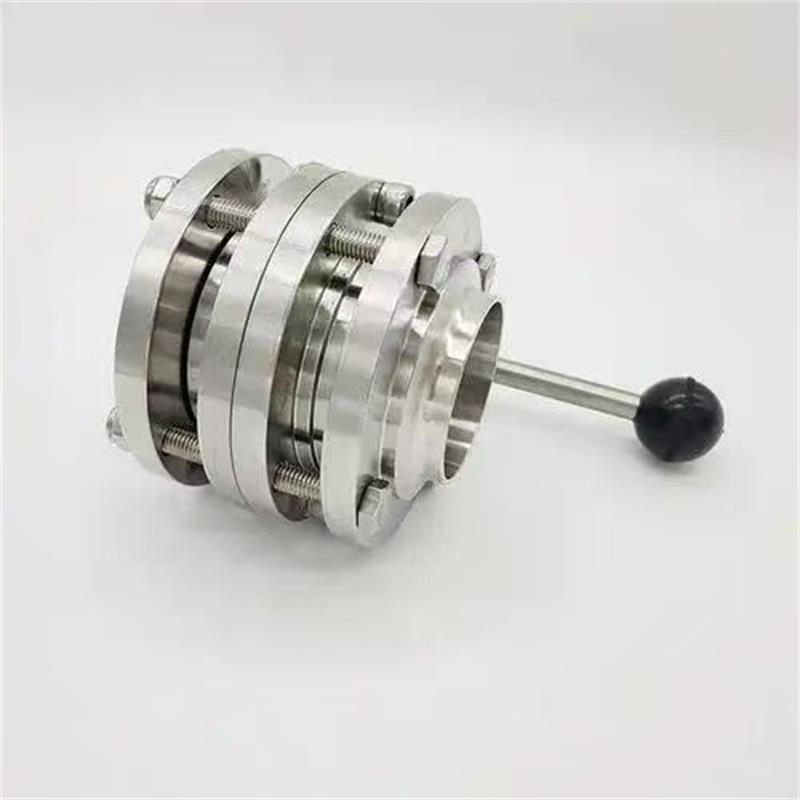

Sanitary three-piece butterfly valve
Product diameter: DN10-DN300
Product pressure: 16bar
Product material: 304/316L
Connection types: welding, threaded, clamp, flange
Product sealing: EPDM+PTFE
Structural type: centerline type
Drive mode: manual, pneumatic, electric
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Details
Youdaoplaceholder0 Sanitary three-piece butterfly valve is a type of valve used in industrial fields with high hygiene requirements, mainly in the food, pharmaceutical, cosmetic and other industries. Its features include high-quality materials, precise manufacturing processes and excellent sealing performance.
Structure and working principle
The sanitary three-piece butterfly valve is mainly composed of the valve body, the butterfly plate and the pneumatic actuator. The valve body is usually made of 316L stainless steel, which has good corrosion resistance and wear resistance. The butterfly plate is installed inside the valve body and controls the on-off of the fluid by rotation. Pneumatic actuator provides power to drive the butterfly plate to rotate for quick response and precise control
Characteristics
Flexible operation: Whether operated manually or automatically, it can meet the usage requirements of different scenarios.
Multiple specifications: Dimensions range from 1/2" to 12", that is, DN10 to DN300, suitable for different flow rates and pipe sizes.
High-quality materials: Made of 304/316L, 1.4301/1.4404 and other materials, it features excellent corrosion resistance and hygiene performance.
High pressure resistance: It can withstand a pressure of 10bar, ensuring stable operation under various working conditions.
Temperature adaptability range: Depending on the sealing material, the temperature range for EPDM sealing is from -20 to 130℃.
Multiple connection methods: including welding, threading, clamps, flanges, etc., facilitating connection with different piping systems.
Strict implementation standards: Compliant with DIN, SMS, ISO, IDF, RJT, DS and other implementation standards.
Youdaoplaceholder0 Sanitary three-piece butterfly valve has a wide range of applications, mainly including the following industries :
Youdaoplaceholder0 Food processing industry : Sanitary three-piece butterfly valves are widely used in food conveying pipelines, preparation equipment, filling equipment, etc., to ensure the hygiene safety and quality stability of food during the processing
Youdaoplaceholder0 Beverage industry : Sanitary three-piece butterfly valves are used in fluid control systems on production lines of beer, soft drinks, fruit juice, mineral water, etc., to ensure a sterile environment during the production process and prevent contamination of
Youdaoplaceholder0 Dairy industry : In the production process of milk, yogurt, cheese and other dairy products, sanitary three-piece butterfly valves are used to control pipelines and equipment to ensure the high quality and safety of dairy products
Youdaoplaceholder0 Pharmaceutical industry : In equipment such as liquid transfer, mixing, and reaction vessels used in drug production, sanitary three-piece butterfly valves meet strict GMP requirements to ensure the purity and sterility of drugs
Youdaoplaceholder0 Cosmetics industry : In the production process of skin care products, shampoos, conditioners and other products, sanitary three-piece butterfly valves ensure the hygiene and quality of cosmetics and prevent microbial contamination
Youdaoplaceholder0 Bioengineering industry : For bioreactors, fermenters, medium delivery, etc., to meet the requirements of aseptic environment and high purity in the biotechnology field
Youdaoplaceholder0 Chemical industry : Suitable for chemical processes that need to handle corrosive media or have high hygiene requirements, it has strong corrosion resistance and can handle various chemical media
Youdaoplaceholder0 Medical industry : Used in fluid control systems in hospitals and laboratories, such as disinfectant delivery, blood processing, etc., to ensure sterility and safety in medical environments
Youdaoplaceholder0 Fine chemical industry : Used for the production and processing of fine chemicals, such as fragrances, dyes, etc., to ensure the purity and pollution-free nature of the products
Youdaoplaceholder0 Water treatment industry : Used for fluid control in drinking water treatment, wastewater treatment and other systems to ensure the safety and purity of water quality
Youdaoplaceholder0 Semiconductor industry : Used in ultrapure water systems, etching solution transportation, etc., to meet the requirements of high purity and dust-free environment in semiconductor manufacturing
