Product Code : VF--ZCC-NL42-CU
Product Introduction

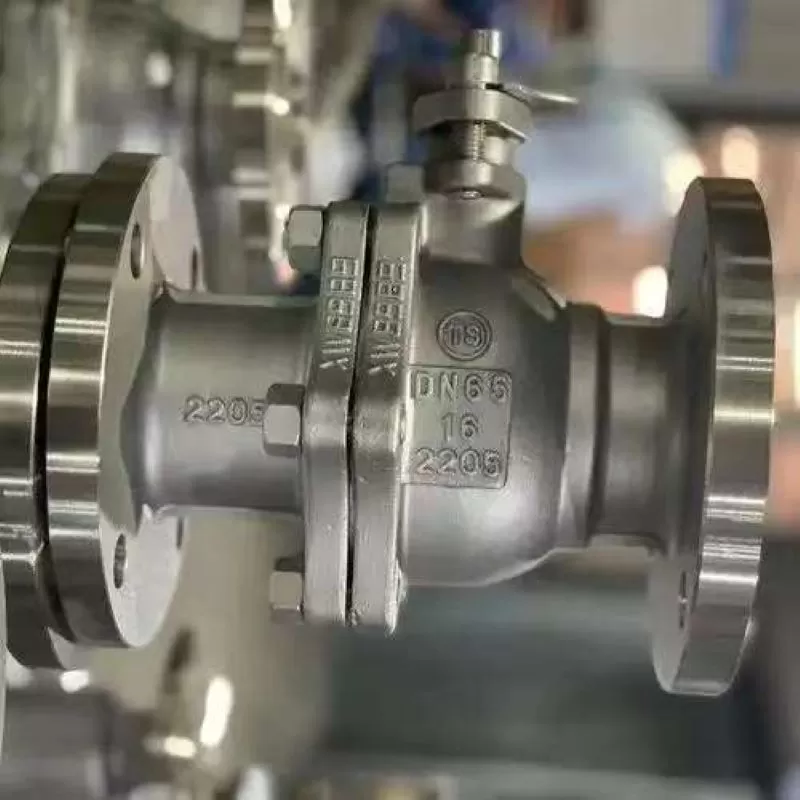

The duplex steel ball valve is a valve device mainly made of duplex stainless steel, featuring high strength and resistance to chloride ion corrosion
Design standards :API, ASME, EN.ISO, JIS, DIN, BS, GB
Connection methods: flange, wafer, thread, butt welding, socket welding
Pressure range :Class150-2500Lb, 1.0-42.0MPa, JIS10K - 40K
Size range :NPS3/8"-32", DN10-DN800
Drive mode: handle, worm gear, gear, pneumatic, hydraulic, electric device
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Design features of duplex steel ball valves:
Soft seal or hard seal
Full bore or reduced bore
Fireproof and anti-static devices
Dual blocking and discharge functions
Valve stem and valve seat grease injection system
Prevent the valve stem from blowing out
The internal pressure of the middle cavity is self-discharged
Optional locking device
Low-leakage design fillers and stuffing boxes
ISO5211 platform connection
The main material of the duplex steel ball valve:
Duplex S31803, Super Duplex S32750, Super Duplex S32760
1A, 2A, 3A, 4A, 5A, 6A, 1B, 1C
CD4MCu, CD4MCuN, CD3MCuN, CE8MN, CD6MN, CD3MN, CE3MN, CD3MWCuN
F51, F53, F55, F60
Application field
It is mainly applied in industrial scenarios containing corrosive media, including:
Marine engineering: Offshore oil production platforms, seawater desalination facilities
Energy industry: oil and gas transmission pipelines, oil refining facilities, offshore oil extraction
Environmental protection field: sewage treatment systems, pulp and paper industry, seawater desalination
Chemical production: fertilizer manufacturing, oil refining, offshore oil extraction, seawater desalination
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
