Product Code : VF--ZCC-NL41-CU
Product Introduction

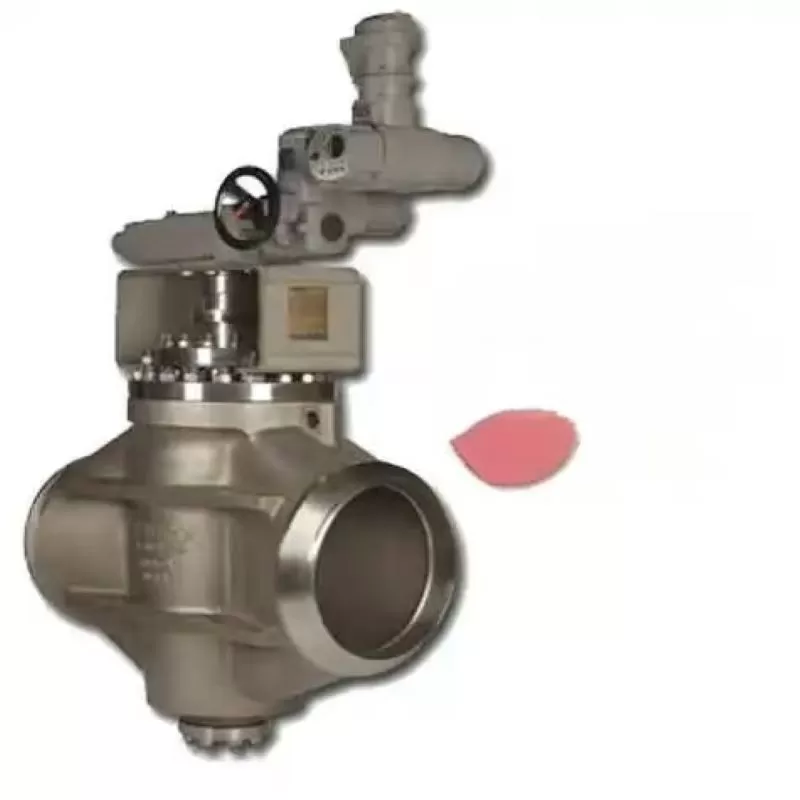

Youdaoplaceholder0 The butt-weld double-phase steel plug valve is a high performance valve suitable for a variety of industrial applications.
The main technical parameters of the butt-welded duplex steel plug valve:
Design standards :API, ASME, EN.ISO, JIS, DIN, BS, GB
Connection methods: flange, thread, butt welding, socket welding
Pressure range :Class150Lb to 600Lb,1.0MPa to 11.0MPa, JIS10K to 40K
Size range :NPS 1/2 "to 16",DN15 to DN400
Drive mode: handle, worm gear, pneumatic, electric device
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Design features of butt-welded duplex steel plug valve:
Venturi reduced diameter or full diameter
Fixed structure
Double pressure plate structure
Fireproof and anti-static device
Packing box structure
Anti-erosion adjustable structure
The main material of the butt-welded duplex steel plug valve:
Duplex S31803, Super Duplex S32750, Super Duplex S32760
1A, 2A, 3A, 4A, 5A, 6A, 1B, 1C
CD4MCu, CD4MCuN, CD3MCuN, CE8MN, CD6MN, CD3MN, CE3MN, CD3MWCuN
F51, F53, F55, F60
Youdaoplaceholder0 Application fields of butt-weld double-phase steel plug valve
Petrochemical industry
In the petrochemical industry, butt-weld duplex steel plug valves are widely used in environments with high salinity or chlorine-containing media. Due to its excellent corrosion resistance and strength, this valve can operate stably under extreme conditions, ensuring the continuity and safety of the process
Nuclear power metallurgy
In the field of nuclear power metallurgy, butt-welded duplex steel plug valves are mainly used in nuclear power circuits and metallurgical equipment. For example, Jiangsu ShentONG DEVELOPED wear-resistant and radiation-resistant plug valve certified by API, providing domestic solution for Hualong ONE nuclear power circuit, significantly improving equipment corrosion resistance life and service life
Marine engineering
In Marine engineering, the butt-welded duplex steel plug valve, due to its excellent corrosion resistance and strength, is suitable for fluid control requirements in various Marine environments. Its compact structure, easy switch and reliable seal make it widely used in offshore platforms and ship equipment
Desalination of seawater
In the field of seawater desalination, the butt-welded duplex steel plug valve is a key component in the seawater reverse osmosis (SWRO) process. Due to the high operating pressure involved in the SWRO process and the strong corrosiveness of the medium, the butt-weld double-phase steel plug valve has been widely used in desalination plants because of its excellent corrosion resistance, strength and sealing performance
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
