Product Code : VF--ZHCC-ZH28-CU
Valve body type; Single seat cast ball valve
Nominal diameter; 25, 40, 50, 80mm
Nominal pressure; ANSI 900, 1500, 2500; JIS 63K
Ambient temperature; - 30 ~ + 70 ℃
Mode of action; Gas-closed or gas-open
Connection type; Sealing surface type; Flange standard; Welding standard
Materials; Carbon steel (ZG230-450), CrMo steel, stainless steel (ZG1Cr18Ni9Ti, ZG1Cr18Ni12Mo2Ti, SCS16), etc
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

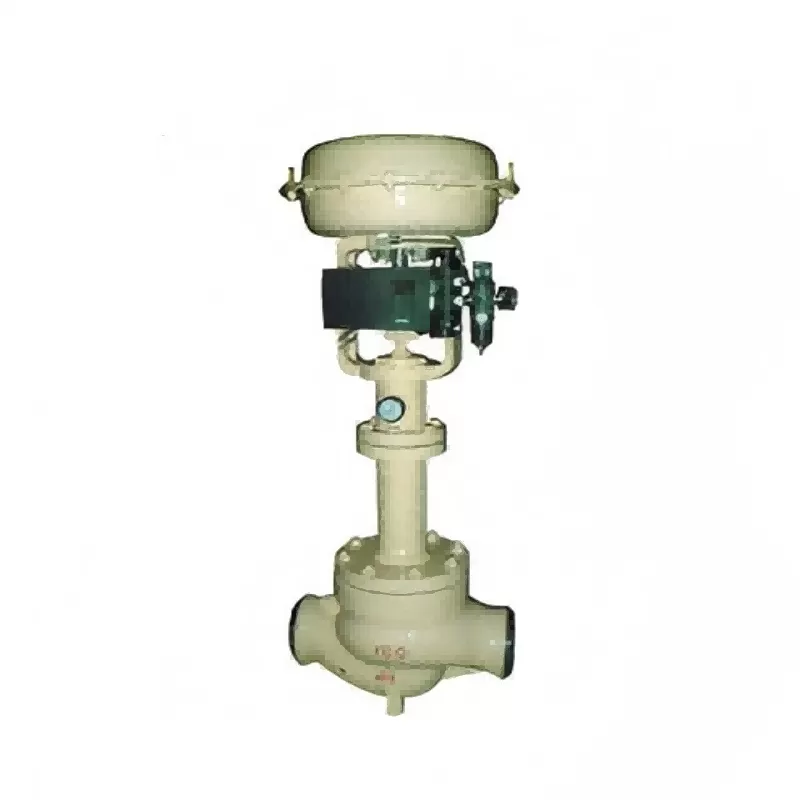

High pressure single seat regulating valve product introduction:
The utility model relates to a regulating valve with upper guiding structure, which has the advantages of compact structure, small pressure drop loss, large flow and wide adjustable range. The guiding area of the spool guiding part is large and the vibration resistance is good. The leakage of the regulator meets ANSI B16.104 standard. The high pressure single-seat regulating valve is equipped with a multi-spring film or cylinder actuator, which has a compact structure and large output force. The product conforms to GB/T4213-92 standard.
The utility model relates to a regulating valve with upper guiding structure, which has the advantages of compact structure, small pressure drop loss, large flow and wide adjustable range. The guiding area of the spool guiding part is large and the vibration resistance is good. The leakage of the regulator meets ANSI B16.104 standard. The high pressure single-seat regulating valve is equipped with a multi-spring film or cylinder actuator, which has a compact structure and large output force. The product conforms to GB/T4213-92 standard.
