Electronic O-type electric regulating ball valve, electric regulating ball valve

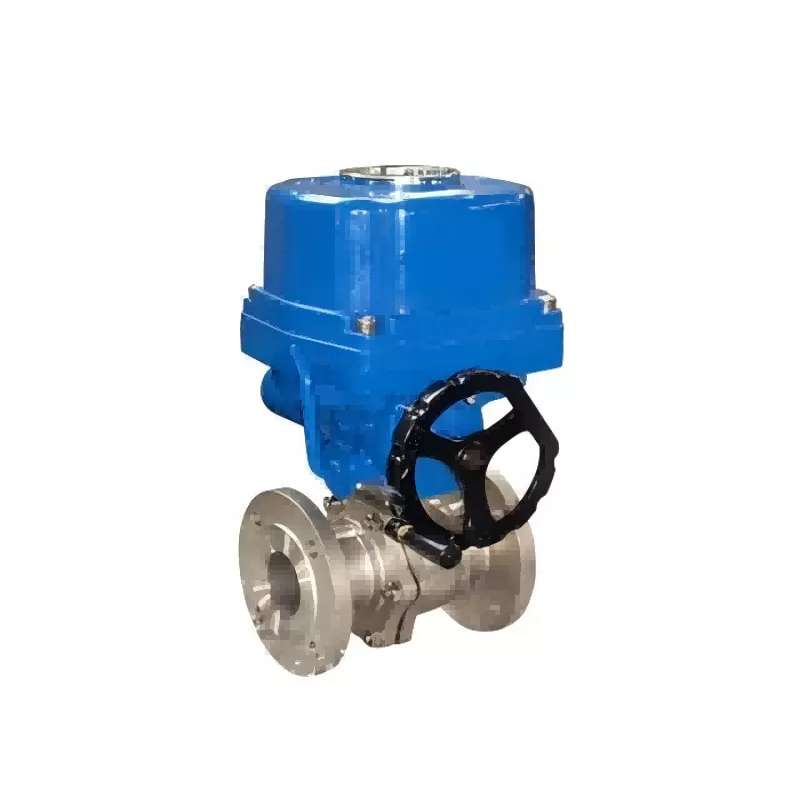

Electronic O-type electric regulating ball valve Product introduction:

A valve (ball) rotates 90° perpendicular to the channel axis, which is composed of an electronic electric actuator and an O-type ball valve structure, belonging to a rotary type high-performance regulation or on-off valve class, accepting the input and output of current signals or voltage signals from industrial automation control (DCS, PLC system) instruments. It can realize the proportional adjustment or two-position switch control of the fluid medium in the process pipeline, so as to achieve the automatic control of the flow, pressure, temperature, liquid level and other parameters of the fluid medium.

Design features:

1. Small fluid resistance, is one of the least fluid resistance in all valve classes, with AC220V, AC380V or DC24V power supply voltage as power, accept (4-20mA, 0-10mA or 1-5VDC) current signal or voltage signal, you can control the operation, with angular stroke output torque to rotate the ball 0~90°, You can complete the opening and closing motion or the adjusting motion.

2. All-electronic electric actuator, adopt mechatronics structure, with internal servo operation and opening signal position feedback, position indication, manual operation and other functions.

3. Strong function, reliable performance, simple connection, through the input current signal or voltage signal, change the rotation Angle of the ball core (0-90° any Angle), to achieve proportional adjustment action.

4. The ball core channel is smooth and smooth, it is not easy to deposit medium, and it can be passed by pipe and line.

5. Simple structure, light weight, good sealing performance, especially suitable for occasions requiring zero leakage rate.

The utility model relates to a valve (ball) rotating 90° perpendicular to the channel axis, which is composed of an electronic electric actuator and an O-type ball valve structure, belonging to a rotary type high-performance regulation or on-off valve class.
