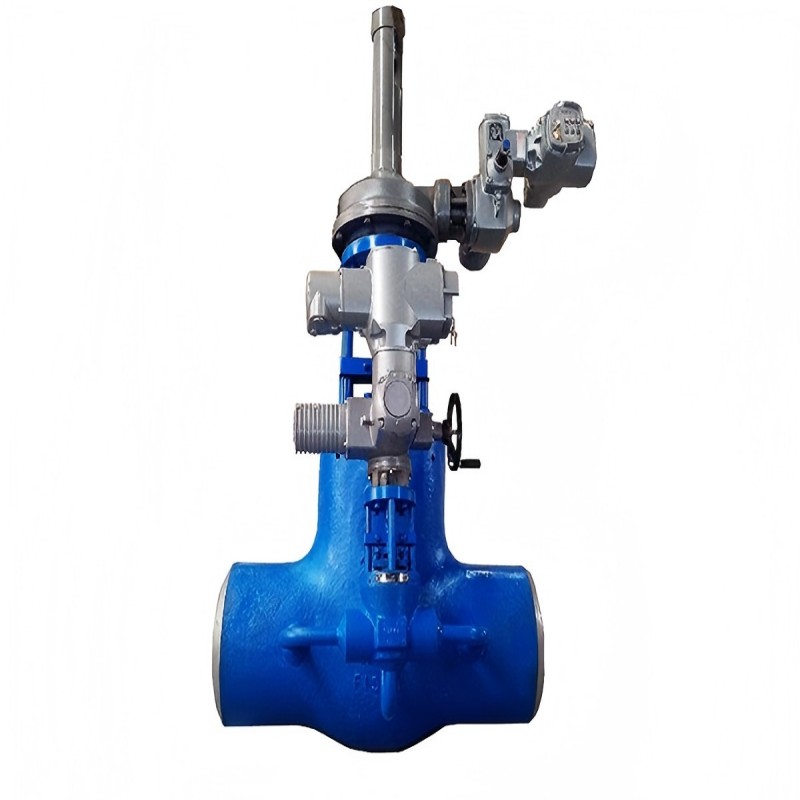

double gate power station gate valve， power station gate valve，Double Disc Gate Valves

Compared with other valve products, power station valve is characterized by high temperature and high pressure, self-sealing design, the higher the pressure, the more reliable the seal. Due to the special performance and technical characteristics and working conditions, the product has also formed the characteristics that can not be replaced by other products.

Design specification:

Design and manufacture GB/T12234 ASMEB16.34

Structure length JB/T3595

Interface connection size JB/T3595 GB/T12224

Inspection and test JB/T3595 MSS SP61

Pressure and temperature standard JB/T3595 ANSI B16.34

Relevant standards:

JBT 3595-2002 General requirements for power station valves

JB/T 5263-2005 power station valve cast steel technical conditions

JB/T 4018 power station valve model preparation

DL 959-2005 Guidelines for the application of safety valves for power station boilers

DLT 531-1994 Technical conditions for high temperature and high pressure stop valve gate valve in power station

DLT 641-2005 power station valve electric actuator

DLT 850-2004 power plant piping

GB 10869 power station control valve technical conditions

GBT 10868-2005 temperature and pressure reducing valve for power station

Double gate power station gate valve, also known as power station valve, is mainly used in the pipeline of various systems of thermal power stations to cut off or connect the pipeline medium. Applicable media: water, steam and other non-corrosive media. Compared with other valve products, power station valve is characterized by high temperature and high pressure, self-sealing design, the higher the pressure, the more reliable the seal. Product use:

Power station gate valve, also known as power station valve, is mainly used in the pipeline of various systems of thermal power stations to cut off or connect the pipeline medium. Applicable media: water, steam and other non-corrosive media.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
