Product Code : VF--DZCC-DZ4-CU
Product model: J965Y, J65Y
Pressure environment :20.0MPa 32.0MPa P54140V P54170V
The valve body material WCB, A105, 12 cr1mov, 20 crmov
Connection type: welding
Nominal diameter: DN15-DN200
Applicable media: water, oil, steam - carbon steel + chromium molybdenum steel; Propane, ethylene, etc. - low temperature steel;
Working temperature: carbon steel -29℃ ~ 425℃; Low temperature steel -46℃ ~ 350℃, chromium molybdenum steel -29℃ ~ 550℃.
Design and Manufacture: JB/T3595
Drive mode: manual, electric
Applicable industries: petroleum, chemical, thermal, pharmaceutical, chemical fertilizer, power plant and other industries
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
Product | Product Code | Purity | Size | Contact Us |

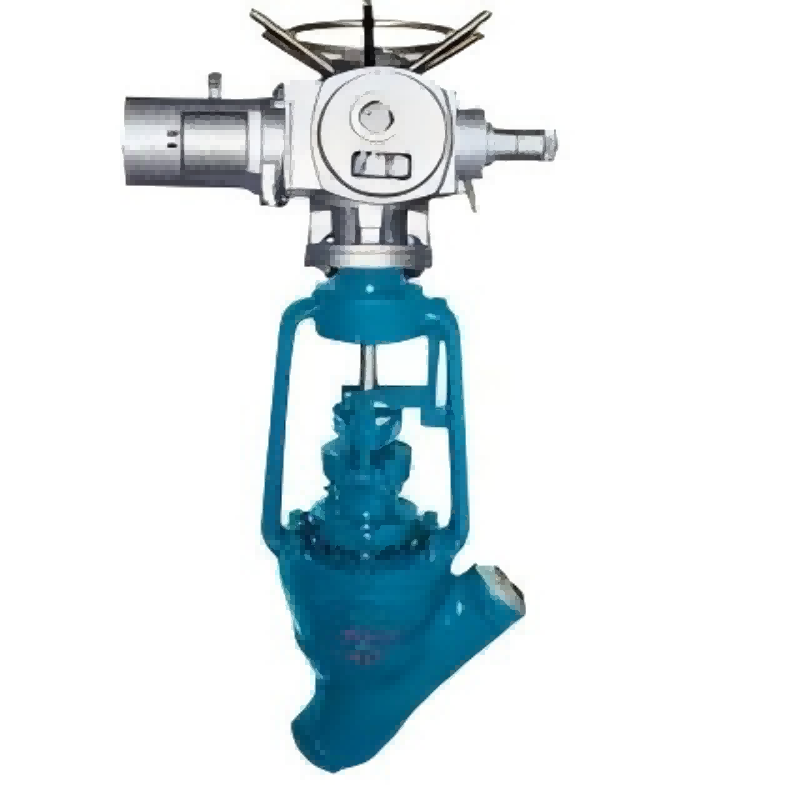

J965Y high temperature and high pressure electric Y-type power station stop valve is composed of the best stop valve and high precision electric actuator. The electric DC butt welding stop valve has the advantages of reasonable structure, excellent performance, beautiful appearance, wide applicable pressure range, mainly used to connect or cut off the medium in the pipeline. The electric DC butt welding stop valve has the advantages of wear resistance, high temperature resistance, good abrasion resistance, long service life and so on. Installed on the main water supply pipe of the boiler, as a opening and closing device, the valve must be in a fully open or fully closed state, can not be used as a regulating valve, the valve is Y type resistance is small, the valve stem center line and the branch pipe center line is 45 degrees.
Installed on the main water supply pipe of the boiler, as a opening and closing device, the valve must be in a fully open or fully closed state, can not be used as a regulating valve, the valve is Y type resistance is small, the valve stem center line and the branch pipe center line is 45 degrees
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
