Product Code : VF--DZCC-DZ3-CU
Main material: A216WCB,A217WC1,A217WC6,A217WC9
Nominal diameter: DN100~DN300
Pressure range: 10~32Mpa
Applicable temperature: -29 ~ 540℃
Operation mode: manual, gear drive, electric, etc
Applicable media: water, oil, steam, etc.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Main feature
1, the middle no valve cover pressure self-tightening connection
2, the ram is to wedge type elastic single ram or wedge type double ram structure
3, both sides of the gate/seat surfacing drilling base carbide
4, high temperature creep resistance design
5. The valve stem is made of nitriding precipitation-hardened stainless steel
6, manual, gear (bevel gear and spur gear) transmission, electric
Product specification
Design specification: ANSI B16.34 E101 JB/T3595
Structure length: ANSI B16.10E101
Pressure temperature rating: ANSI B16.34 E101 JB/T3595
Pressure test: API598 E101 JB/T3595

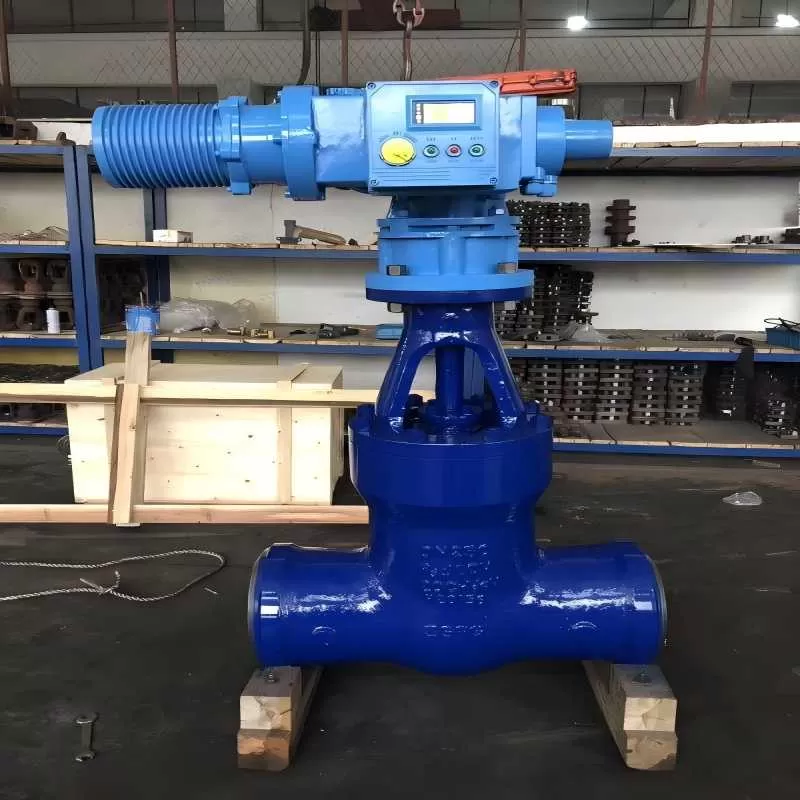

"High temperature and high pressure power station gate valve", also known as power station special valve, is mainly used in the pipeline of various systems of thermal power stations, to cut off or connect the pipeline medium. Applicable media: water, steam and other non-corrosive media. Compared with other valve products, power station valve is characterized by high temperature and high pressure, unique self-sealing design, the higher the pressure, the more reliable the sealing. Due to the special performance and technical characteristics and working conditions, the product has also formed the characteristics that can not be replaced by other products. This type of valve should generally be installed horizontally in the pipeline.
