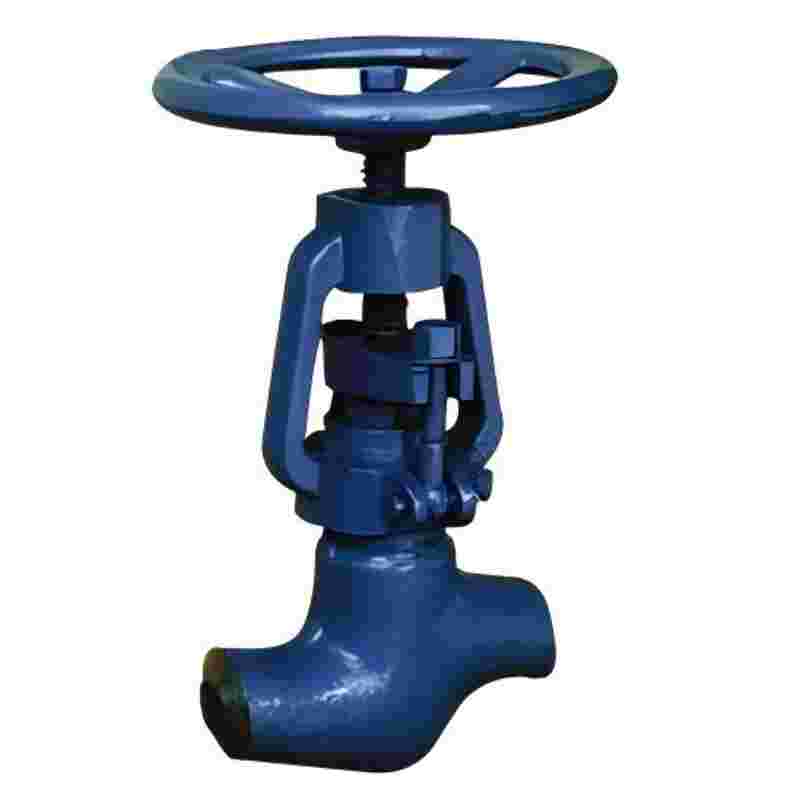

power station stop valve，Power station valve，stop valve

Power station stop valve is also known as power station special stop valve, power station stop valve compared with other stop valve products are characterized by high temperature and high pressure, unique self-sealing design, the higher the pressure, the more reliable the seal. Due to the special performance and technical characteristics and working conditions, the product has also formed the characteristics that can not be replaced by other products. Manufacturing acceptance technical conditions according to the Japanese thermal power generation valve standard E101 provisions. The structural length of the pound-class power station stop valve is specified in E101. Valve body welded groove according to ANSI B16.25 or user supplied dimensions. The valve cover packing box is reasonable, the filler is added with corrosion inhibitor, the seal is reliable, and the switch is stable. The valve has an upper sealing structure to ensure that the valve stem will not leak when the valve is opened and operated.

Power station stop valve structure features:

1. Product design and manufacture according to ASME B16.34, E101 standards, can be used with imported equipment.

2. The valve cavity adopts pressure self-tightening sealing structure, the higher the pressure of the inner cavity, the better the sealing performance.

3. Both ends of the branch pipe are butt welded to meet different nozzle requirements.

4. The sealing surface of the valve disc and seat is made of stellite cobalt-based cemented carbide surfacing, which has good wear resistance, high temperature resistance, good abrasion resistance and long service life.

5. The valve cover packing box is reasonable, the filler is added with corrosion inhibitor, the seal is reliable, and the switch is stable.

6. The valve has an upper sealing structure to ensure that the valve stem will not leak when the valve is opened and operated.

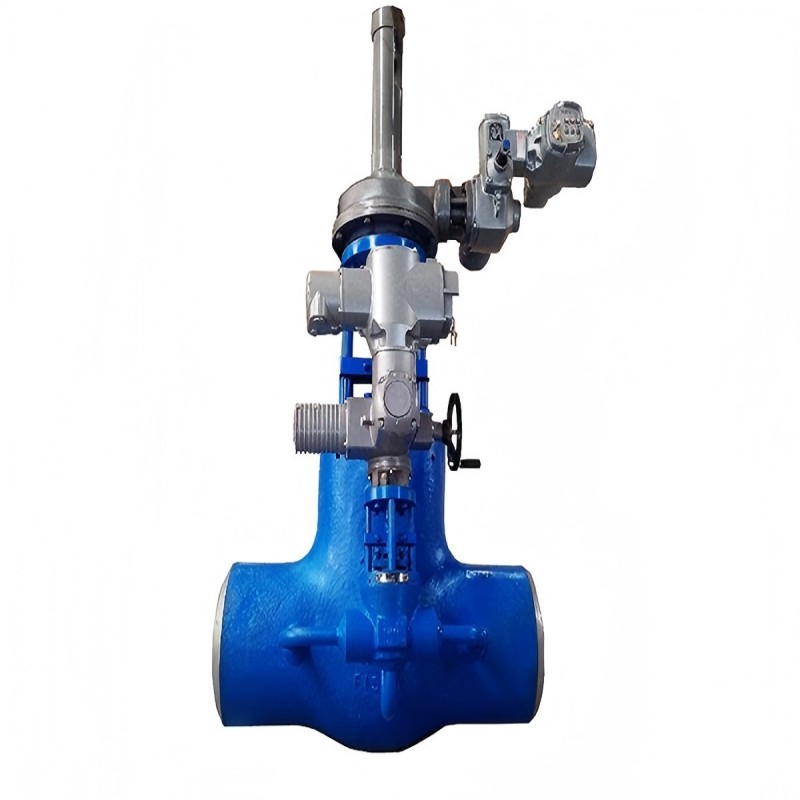

7. The opening and closing of the electric stop valve are controlled by the electric device, which is equipped with special motor, reducer, torque control mechanism, field operation mechanism, manual and electric switching mechanism. In addition to local operation, it can also be operated remotely.

Power station shut-off valve standard specification:

Design and manufacturing standards: ASME B16.34, E101

Structure length standard: GB/T 12221-2005

Connection flange standard: GB/T 9113

Pressure temperature grade: GB/T 12224-2005

Test standard: GB/T 13927-2008

Power station stop valve is suitable for Class1500 ~ 3500Lb, working temperature -29 ~ 570℃ of petroleum, chemical, thermal power station and other working conditions of the pipeline cut off or connected medium. Applicable media: water, oil, steam and other non-corrosive media.
