Product Code : VF--ZCC-Z115-CU
Duplex steel gate valves are suitable for various pipelines with ANSIClass150 to 900, PN2.0 to 16.0MPa, JIS10 to 20K, and working temperatures of -29 to 425℃ (carbon steel) and -40 to 500℃ (stainless steel). They are used to cut off or connect the medium in the pipeline. By choosing different materials, it can be applied to various media such as water, steam, oil products, nitric acid, acetic acid, strong oxidizing media and urea. There are manual, bevel gear transmission and electric, etc.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

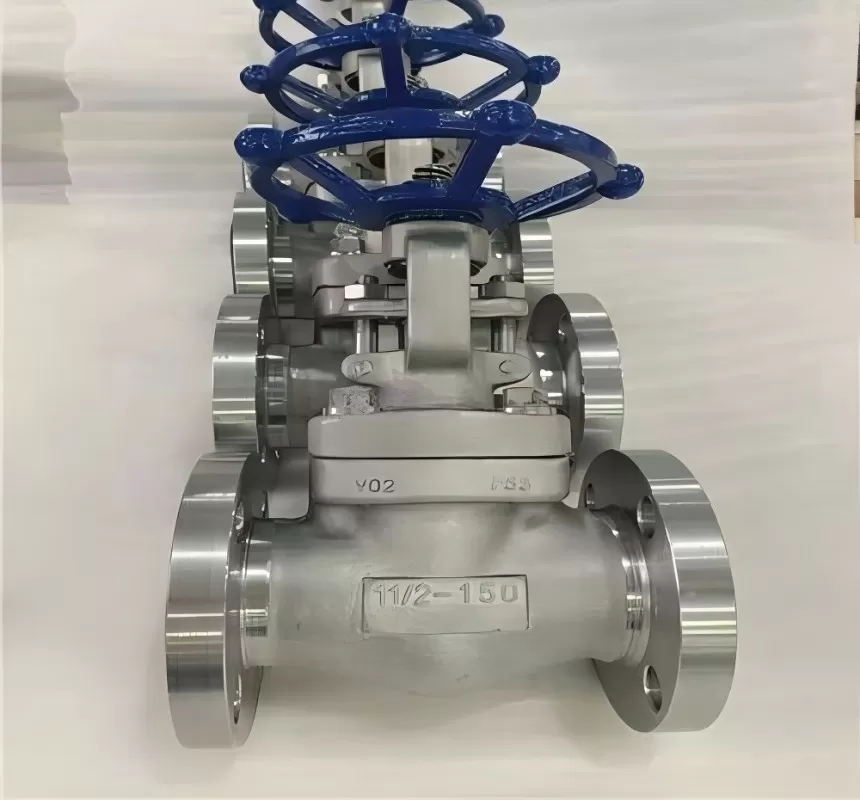

The Z41Y-2507 duplex steel gate valve is widely used in fields such as petrochemicals, offshore and coastal facilities, oilfield equipment, papermaking, shipbuilding, and environmental protection. 2507 duplex stainless steel was developed based on the second-generation 2205 duplex steel gate valve. The structure of 2507 is composed of austenite and ferrite, possessing the dual characteristics of both austenitic and ferritic stainless steels. It has a lower coefficient of thermal expansion and a higher thermal conductivity than austenitic stainless steel. Duplex steel gate valves are suitable for various pipelines with ANSIClass150 to 900, PN2.0 to 16.0MPa, JIS10 to 20K, and working temperatures of -29 to 425℃ (carbon steel) and -40 to 500℃ (stainless steel). They are used to cut off or connect the medium in the pipeline. By choosing different materials, it can be applied to various media such as water, steam, oil products, nitric acid, acetic acid, strong oxidizing media and urea. There are manual, bevel gear transmission and electric, etc.
Main features of Z41Y-2507 duplex steel gate valve:
The product design and manufacture comply with the requirements of * standards, featuring reliable sealing and excellent performance.
② The structure design is compact and reasonable, and the shape is beautiful.
③ It adopts a wedge-type elastic gate plate structure. For medium and large diameters, rolling bearings are set, making opening and closing easy.
④ The valve body materials are complete in variety. The packing and gasket are reasonably selected according to the actual working conditions or the user's requirements, which can be applied to various pressure, temperature and medium working conditions.
⑤ Adopt a variety of domestic and international pipe flange standards and flange sealing surface types to meet the needs of various projects and user requirements.
⑥ The fluid resistance is small, and the sealing surface is less eroded and scoured by the medium.
⑦ It is relatively easy to open and close.
⑧ The flow direction of the medium is unrestricted, without disturbing the flow or reducing the pressure.
⑨ It has a simple shape, short structural length, good manufacturing processability and wide application range
It is widely applied in fields such as petrochemicals, offshore and coastal facilities, oilfield equipment, papermaking, shipbuilding and environmental protection.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
