Product Code : VF--GMCC-GM13-CU
The main component materials of the rubber-lined diaphragm valve
Valve body Cast iron, ductile iron, carbon steel, stainless steel
Lining Unlined, rubber, diaphragm
Valve disc Cast iron
Valve cover Cast iron, ductile iron, carbon steel, stainless steel
Valve stem Carbon steel, stainless steel
Handwheel Cast iron
Lining layer Electric spark detection
Test and Inspection In accordance with the GB/T13297 standard
Nominal pressure 0.6, 1.0, 1.6PN (Mpa)
Valve body: PN×1.5
Sealing: PN×1.1-50-150℃

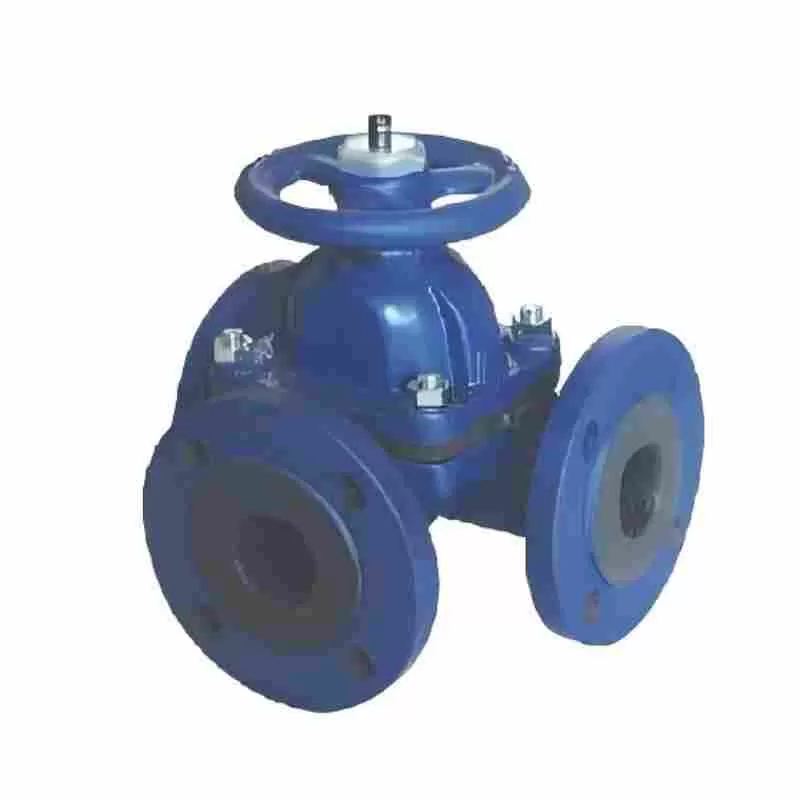

Design Specification for Three-way Rubber-lined Diaphragm Valve
Design and Manufacturing GB/T12239
Structural length GB/T12221, JB/T1688
Flange connection dimensions GB/T4216, JB/T 78
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Structural characteristics
The three-way diaphragm valve is a special type of stop valve.
1. The opening and closing parts with elastic sealing ensure no internal leakage.
2. The streamlined flow channel results in low pressure loss.
3. There is no stuffing box, so there is no external leakage.
4. The valve body and the cover are separated by a diaphragm in the middle, which protects the valve cover and valve stem parts above the diaphragm from being eroded by the medium.
5. The diaphragm is replaceable and the maintenance cost is low.
6. The diversity of lining materials makes it suitable for various media and has excellent corrosion resistance.
Three-way diaphragm valve application: This valve is specifically designed for controlling non-corrosive or generally corrosive media. The inner cavity surface of the valve body is either unlined or covered with various rubber options available, making it suitable for different working temperatures and fluid pipelines.
