Product Code : VF--GMCC-GM12-CU
Ii. Materials
Valve body: cast iron, ductile iron, carbon steel, stainless steel
Valve cover: cast iron, ductile iron, carbon steel, stainless steel
Lining: Unlined, rubber
Diaphragm: Rubber
Valve disc: Cast iron
Valve stem: Carbon steel, stainless steel
Handwheel: Cast iron
Iii. Testing
Lining layer: Electric spark detection
Tests and inspections shall be conducted in accordance with the standard of GB/T13297
Nominal pressure: PN (Mpa)
Valve body: PN×1.5
Sealing: PN×1.1
Applicable temperature: ≤85℃, ≤100℃, ≤120℃, ≤150℃ (depending on the lining and diaphragm materials)
Nominal diameter: DN15-500
Nominal pressure MpaPN0.6, 1.0, 1.6
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

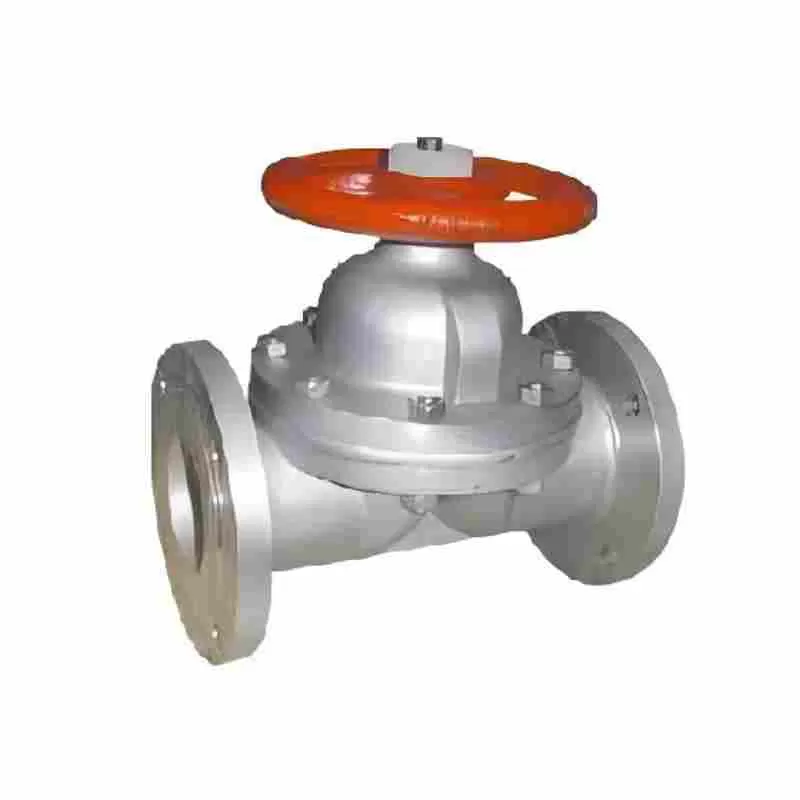

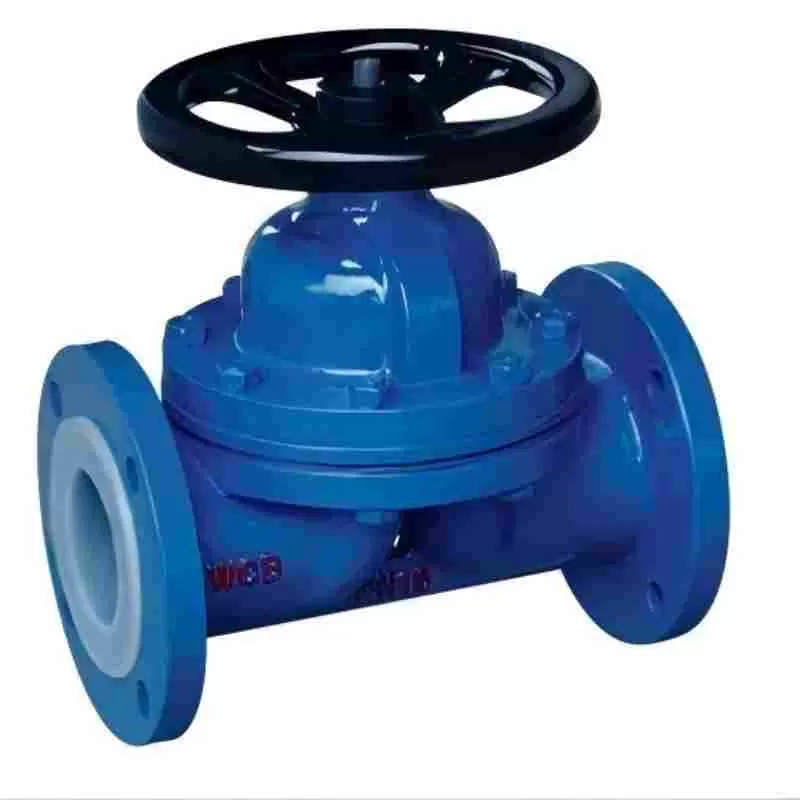

Structural features: The diaphragm valve is a special type of shut-off valve;
1. The opening and closing parts with elastic sealing ensure no internal leakage.
2. The streamlined flow channel results in low pressure loss.
3. There is no stuffing box, so there is no external leakage.
4. The valve body and the cover are separated by a diaphragm in the middle, which protects the valve cover, valve stem and other parts above the diaphragm from being eroded by the medium.
5. The diaphragm is replaceable and the maintenance cost is low.
6. The diversity of lining materials makes it suitable for various media and has excellent corrosion resistance.
Application: This valve is specifically designed for controlling non-corrosive or generally corrosive media. The inner cavity surface of the valve body is either unlined or covered with various rubber options available, making it suitable for different working temperatures and fluid pipelines.
