Product Code : VF--QCC-Q207-CU
Model :Q45F, Q45H
Nominal diameter :2"-20"
Pressure rating :150Lb-1500LB
Applicable temperature :-29℃-425℃
Structural forms: T-shaped floating ball, L-shaped floating ball;
Medium range: water, liquid, steam, oil products, etc.
Drive mode: manual, turbine, pneumatic, electric;
Main materials :A105, LF2, 304(L), 316(L), F347, F321, F51, etc.
Design and manufacture [BS5351 MSS SP-118]
The socket size is in accordance with [ANSI B16.11, JB/T1751].
The dimensions of the threaded end are in accordance with [ANSI B1.20.1, JB/T7306]
The dimensions of the welded ends shall be in accordance with [ANSI B16.25, JB/T12224]
The flange end dimensions are in accordance with [ANSI B16.5, JB79].
The materials are in accordance with [ANSI/ASTM regulations]
Valve inspection and testing [API 598;GB/T13927, JB/T9092]
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

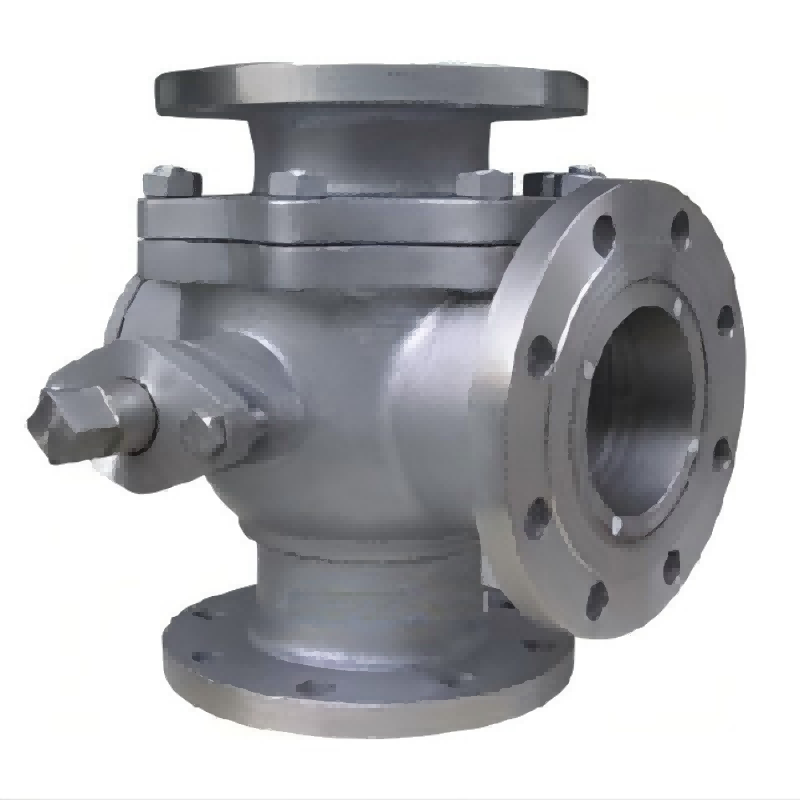

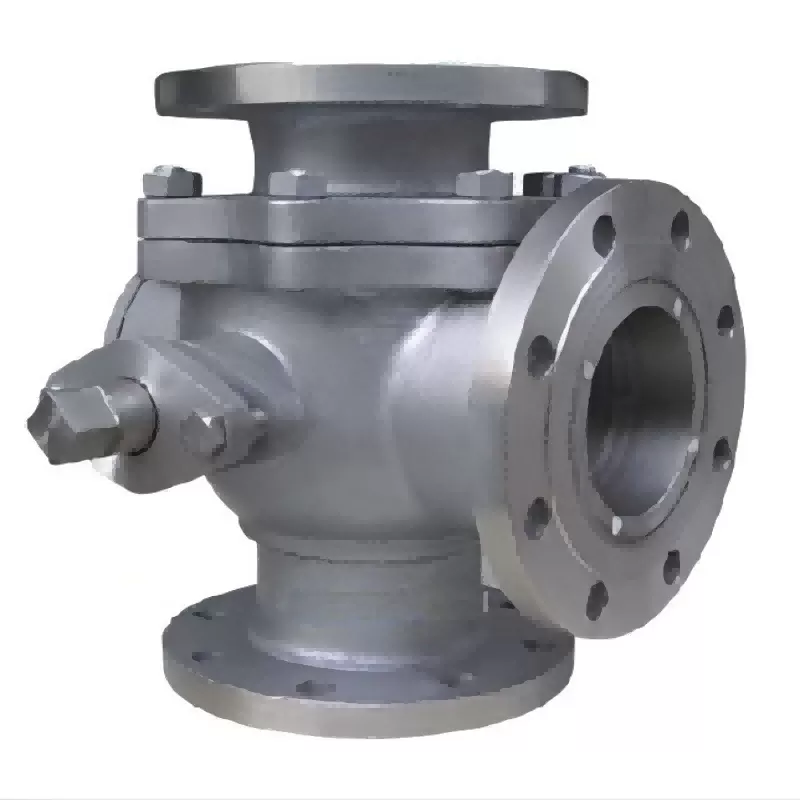

The Q45F stainless steel T-type three-way ball valve is a four-seat sealed three-way ball valve with an elegant design
It has a compact and reasonable structure. It can not only switch the flow direction of the medium, but also make
The three channels are interconnected. At the same time, any one channel can also be closed to make the other two accessible
The pipeline is connected, allowing for flexible control of the confluence or diversion of the medium in the pipeline.
The Q45F stainless steel T-type three-way ball valve features a novel, unique and specialized control system design, and is widely used in metallurgy, mining, petroleum, chemical industry, power, and light industry.
It is applicable to the mixing and diversion conditions of fluids, gases and dust-like substances in industrial sectors such as aerial photography and automatic control systems
