Product Code : VF--QCC-Q276-CU
Technical parameters of imported 2000PSI three-piece ball valve:
Nominal pressure: 1.6-14MPa
2. Applicable temperature range: -20 to 180℃
3. Applicable media: Water, oil, gas and certain corrosive liquids (W.O.G)
4. Thread types: G, NPT, BSPT, BSP, DI259/2999
5. Materials: P nitric acid type, R acetic acid type
The three-piece ball valve switch is locked in the position where the valve must be maintained to prevent the risk of accidental misoperation. The platform and handle of the ball valve are equipped with lock holes, which can be locked in the closed or open position with padlocks.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

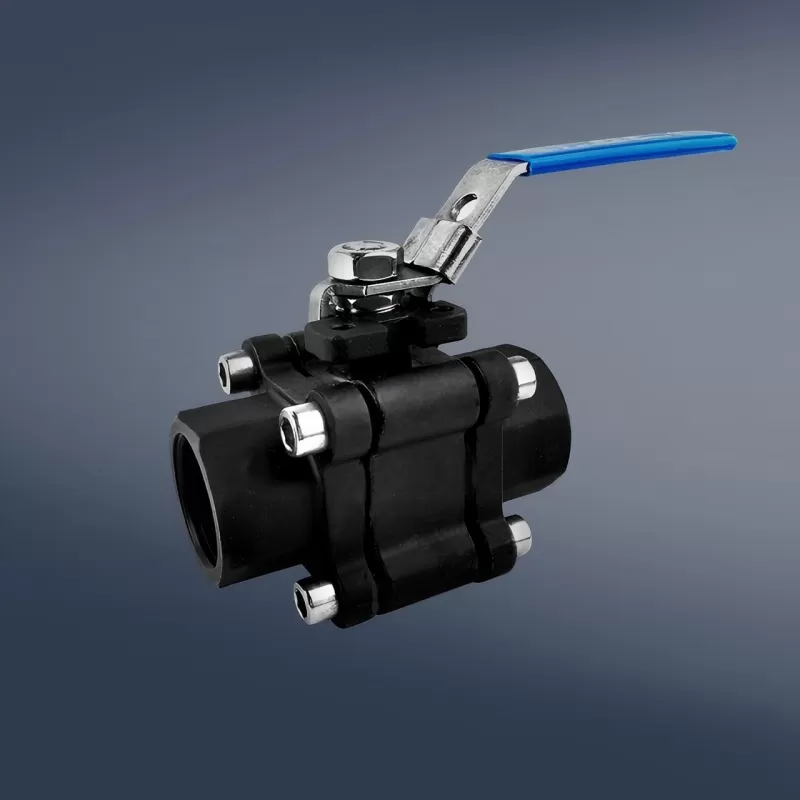

The three-piece high-pressure ball valve is composed of three parts of the valve housing. It is formed by four relatively long bolts clamping the middle valve body and the valve ball from both ends. Its advantage is that during maintenance and disassembly, there is no need to remove the pipeline threads. Instead, the four bolts can be directly removed, and the middle part of the valve body can be taken out. The closing part of the three-piece stainless steel threaded ball valve is a ball. The ball rotates around the centerline of the valve body to achieve opening and closing. Ball valves are mainly used in pipelines to cut off, distribute and change the flow direction of the medium.
The casting of the three-piece high-pressure ball valve body adopts the advanced imported technology, with a reasonable structure and beautiful shape. The valve seat of the 2000PSI three-piece ball valve adopts an elastic sealing structure, ensuring reliable sealing and easy opening and closing. The valve stem adopts a bottom-mounted structure with an inverted seal. When the valve cavity abnormally increases in pressure, the valve stem will not be pushed out.
The 2000PSI three-piece ball valve is easy to operate, compact in size, can be made in large diameters, has reliable sealing, a simple structure, and is convenient for maintenance. The sealing surface and the ball surface are often in a closed state, making it less prone to erosion by the medium. It is widely used in various industries.
The 2000PSI three-piece ball valve is easy to operate, compact in size, can be made in large diameters, has reliable sealing, a simple structure, and is convenient for maintenance. The sealing surface and the ball surface are often in a closed state, making it less prone to erosion by the medium. It is widely used in various industries
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
