Product Code : VF--QCC-Q275-CU
Product models: Q41F,Q11F,Q61F
Nominal diameter: DN8-DN250
Nominal pressure: PN1.6-PN16.0MPA
Transmission methods: manual, pneumatic, electric
Connection methods: flange, thread, welding
Operating temperature (℃) : 150
Media used: seawater, acid solution, alkali solution, desulfurized water
Valve structure: Full bore, floating ball, through
Valve body material: 1.4529 super austenitic stainless steel
Valve core material: 1.4529
Valve stem material: 1.4529
Valve seat seal: PTFE, PEEK
Application standards: Chinese national standard, American standard, Japanese standard, German standard
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

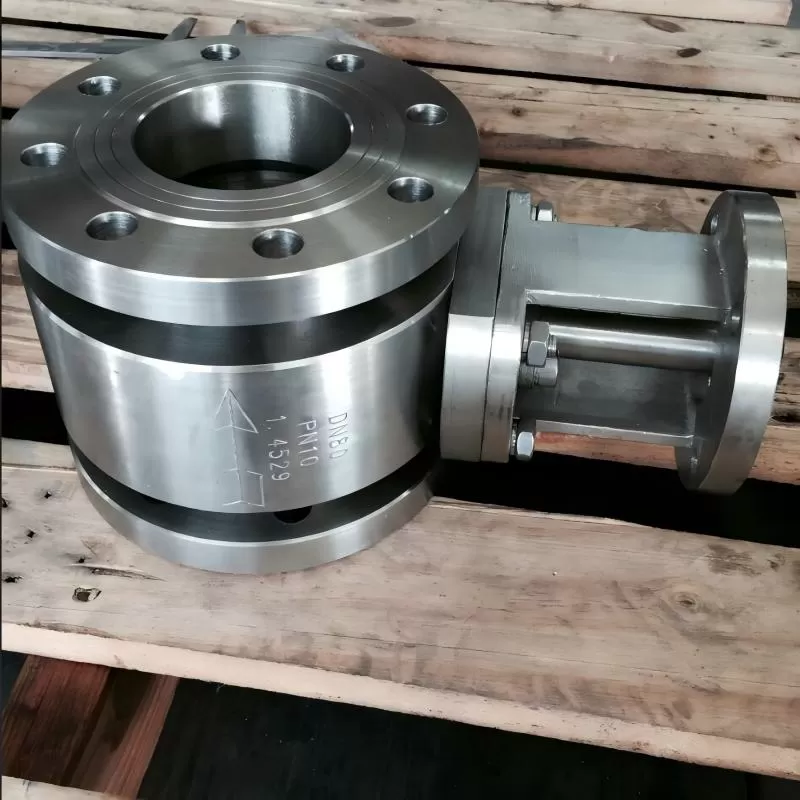

1.4529 stainless steel ball valve, resistant to pitting and crevice corrosion, resistant to chloride stress corrosion, DN8-DN250, pressure 1.6MPa-16.0MPa, Japanese standard 10K-20K, American standard 150LB-1500LB. 1.4529 hexamolybdenum steel, super austenitic stainless steel, main alloy composition: 20Cr-25Ni-6Mo-1Cu-0.2N.
1.4529 super austenitic stainless steel, commonly known as hexagonal molybdenum steel, has the following main alloy components: 20Cr-25Ni-6Mo-1Cu-0.2N has a very high resistance to pitting and crevice corrosion in halide media and sulfur-hydrogen acidic environments. It can effectively resist chloride ion stress corrosion cracking. It also has good corrosion resistance in oxidizing and reducing media, with good stability and slightly better mechanical properties than 904L.
1.4529 stainless steel ball valves can be flanged or welded. They come in two structures: floating ball and fixed ball. O-type ball valves are used for shut-off type, while V-type ball valves are used for regulating type. Depending on the temperature of the medium, soft-sealed ball valves and hard-sealed ball valves (high-temperature type) can be selected.
1.4529 super austenitic stainless steel, commonly known as hexagonal molybdenum steel, has the following main alloy components: 20Cr-25Ni-6Mo-1Cu-0.2N has a very high resistance to pitting and crevice corrosion in halide media and sulfur-hydrogen acidic environments. It can effectively resist chloride ion stress corrosion cracking. It also has good corrosion resistance in oxidizing and reducing media, with good stability and slightly better mechanical properties than 904L
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
