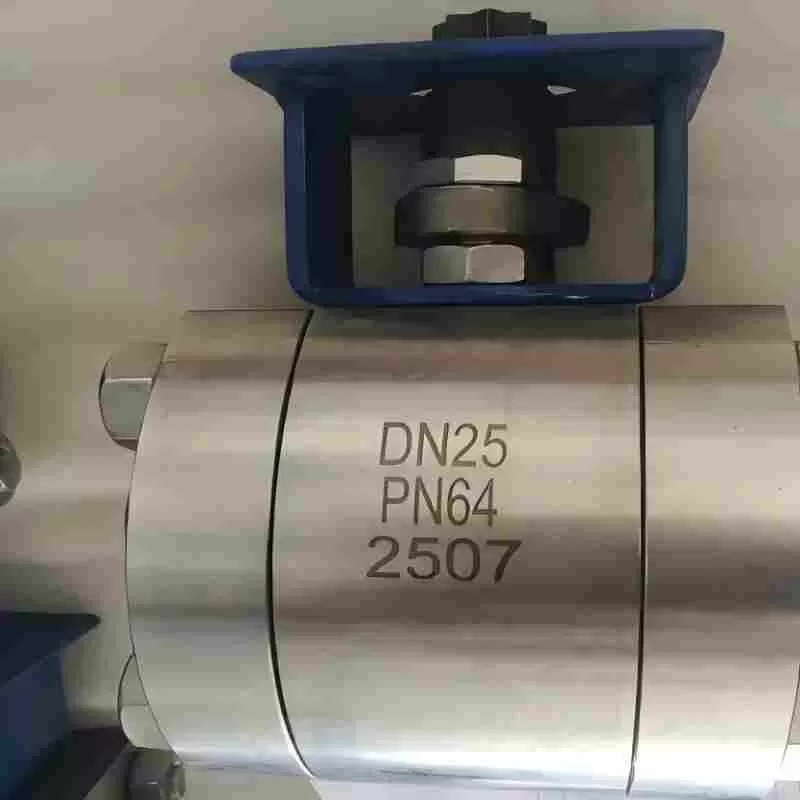

2507 duplex steel welded forged steel ball valve,welded forged steel ball valve,2205ball valve

Product Code : VF--QCC-Q274-CU

Product models: Q61F,Q661F,Q961PEEK

Nominal diameter: DN8-DN100

Nominal pressure: PN16-PN160

Transmission methods: manual, pneumatic, electric

Connection method: Butt welding

Operating temperature (℃) : 200

Medium used: seawater, industrial wastewater, desulfurized water

Valve structure: three-piece type, forged, straight-through floating ball, full diameter

Valve body material: 2507 duplex steel

Valve core material: 2507

Valve stem material: 2507

Valve seat seal: PEEK, PTFE

Application standards: GB,ASME,ANSI,JIS,DIN


Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Product Product Code Purity Size Contact Us
2507 duplex steel welded forged steel ball valve,welded forged steel ball valve,2205ball valveVF--QCC-Q274-CUCustomizedCustomize

2507 duplex steel welded forged steel ball valve, forged, three-piece structure ball valve with left, middle and right valve bodies, can be manufactured in accordance with national standards, American standards, Japanese standards and German standards. Duplex steel is resistant to chloride ion corrosion and is often used in seawater, chloride and high-salt water. Diameter: DN8-DN100, pressure: 1.6MPa-16.0M

2507 duplex steel welded forged steel ball valve, forged, three-piece structure ball valve with left, middle and right valve bodies, can be manufactured in accordance with national standards, American standards, Japanese standards and German standards. Duplex steel is resistant to chloride ion corrosion and is often used in seawater, chloride and high-salt water. Diameter: DN8-DN100, pressure: 1.6MPa-16.0MPa

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
