Product Code : VF--ZCC-212-CU

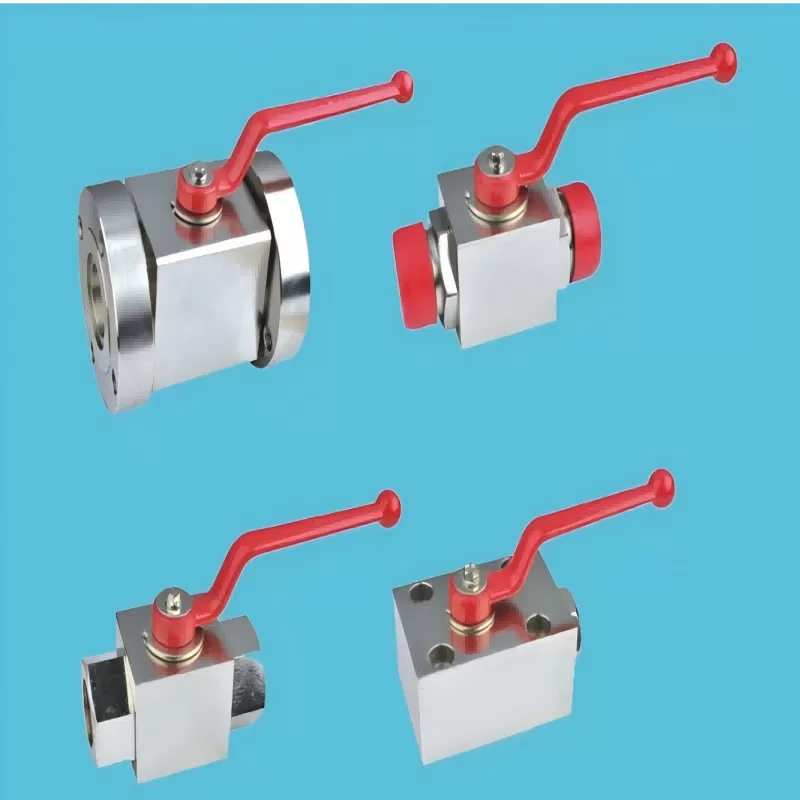

Product Name: Ball Core Stop Valve
Product Model: QJH
Nominal diameter: DN6 - DN80
Structural form: Cut-off type
Nominal pressure: 31.5MPa to 50.0MPa
Connection methods: plate type, flange type, internal thread, external thread
Applicable temperature: -29 ° C to +80 ° C
Drive mode: Handwheel
Valve body material: carbon steel, cast steel, stainless steel
Manufacturing standards: National standard GB, German DIN, American API, ANSI
Applicable media: water, oil, gas, liquid
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
The QJH ball core stop valve is a product of our company that has introduced advanced German technology and processes. It is mainly used to control the flow and stop of oil in hydraulic pipelines. With a ball core structure, it features low flow resistance loss, reliable sealing performance, convenient operation and an elegant appearance. Applicable media: Hydraulic oil, water-ethylene glycol, other mixed liquids.
The QJH ball core stop valve is a product of our company that has introduced advanced German technology and processes. It is mainly used to control the flow and stop of oil in hydraulic pipelines. With a ball core structure, it features low flow resistance loss, reliable sealing performance, convenient operation and an elegant appearance. Applicable media: Hydraulic oil, water-ethylene glycol, other mixed liquids.
