Product Code : VF--ZCC-209-CU
Nominal diameter DN10-DN50
Nominal pressure PN10-25
Material: 2205, 2507 duplex stainless steel.
Connection methods: NPT thread, G thread, BS thread;
Valve function: Cut-off;
Sealing type: Metal hard seal
Structural type: straight-through type
Applicable media: seawater, acidic liquids, acidic gases.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

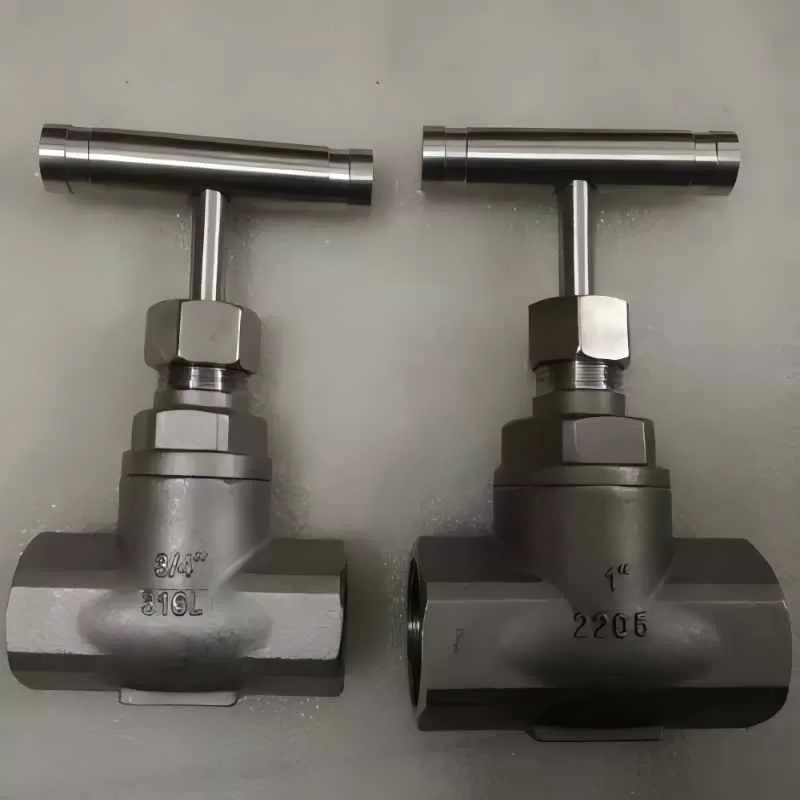

2507 and 2205 duplex steel threaded stop valves are used for small-diameter pipes with diameters ranging from DN10 to DN50. The thread standards can be NPT thread, BS thread, G thread, etc. The nominal pressure is PN10-25, and the material is 2205 and 2507 duplex stainless steel.
Duplex Stainless Steel (abbreviated as DSS) has corrosion resistance in media containing chloride ions. It combines both austenite and ferrite forms. Duplex stainless steel has a low carbon content, high chromium, high nickel, high molybdenum and high nitrogen, and has excellent resistance to pitting corrosion. The pitting corrosion equivalent is greater than 40. It has excellent corrosion resistance and comprehensive mechanical properties.
Valve parameters
Product model:
Connection methods: NPT thread, G thread, BS thread;
Valve function: Cut-off;
Sealing type: Metal hard seal
Structural type: straight-through type
Applicable media: seawater, acidic liquids, acidic gases.
Duplex Stainless Steel (abbreviated as DSS) has corrosion resistance in media containing chloride ions. It combines both austenite and ferrite forms. Duplex stainless steel has a low carbon content, high chromium, high nickel, high molybdenum and high nitrogen, and has excellent resistance to pitting corrosion. The pitting corrosion equivalent is greater than 40. It has excellent corrosion resistance and comprehensive mechanical properties.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
