Product Code : VF--ZCC-230-CU
Specification parameters
Pressure rating: PN1.0-10.0MPa, CLASS150-600Lb
Nominal diameter: DN200-DN350
Corresponding model: J41W-150Lb(Ti), J41W-300Lb(Ti), J41W-600Lb(Ti), J941W-10TI, J941W- 16Ti, J941W-25Ti, J941W-40Ti, J941W-63Ti, J941W-100Ti, J941W-150Lb(Ti), J941W-300Lb (Ti), J941W-600Lb(Ti)
Applicable medium: Oxidizing corrosive medium
Technical Specification
Design standards: GB/T12235, ASME B16.34, BS1873
Structural length: GB/T12221, ASME B16.10
Connection flange: HG, GB, JB, API, ANSI, ISO, BS, DIN, NF, JIS
Test standards: JB/T9092, GB/T13927, API598
Main material
Valve bodies: TA1, TA2, TA10, Gr2, Gr3
Valve discs: TA1, TA2, TA10, Gr2, Gr3
Valve stems: TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

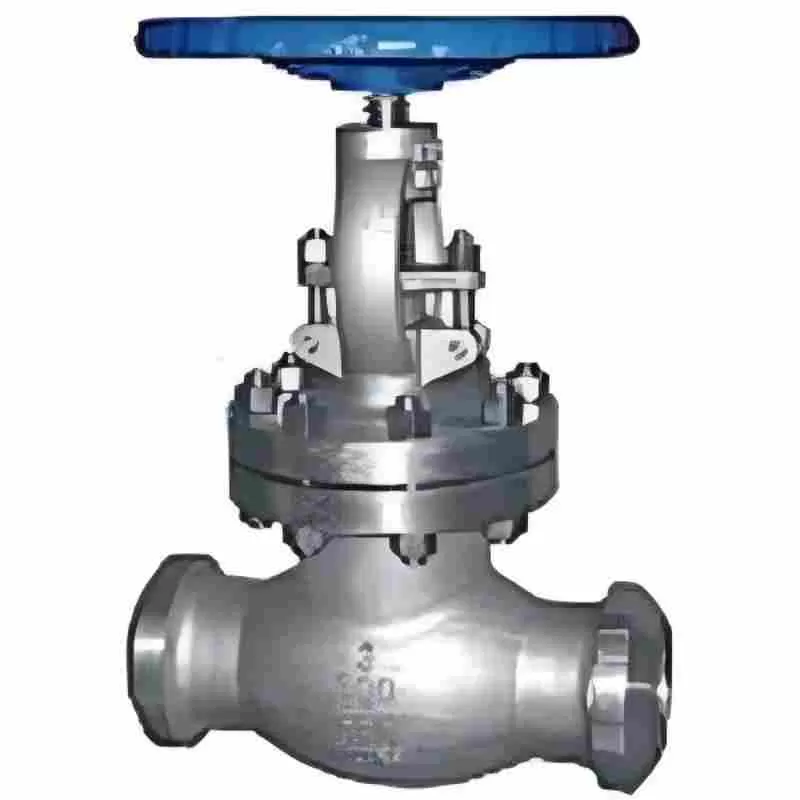

The titanium material selected for the J941W titanium stop valve is a highly chemically reactive metal. It shows particularly excellent corrosion resistance to many corrosive media. The reason is that titanium has a good affinity for oxygen and readily reacts with it to form a firm and dense passive oxide film on its surface. The large-diameter titanium stop valves produced by Shanghai Rongtai feature a compact structure, reasonable design, good valve rigidity, smooth channels and a small negative flow coefficient. The drive mode can be manual, electric or gear transmission. It has been widely applied in the chlor-alkali industry, soda ash industry, pharmaceutical industry, fine chemical industry, production of basic organic acids and inorganic salts, nitric acid industry, etc.
The titanium material selected for the J941W titanium stop valve is a highly chemically reactive metal. It shows particularly excellent corrosion resistance to many corrosive media. The reason is that titanium has a good affinity for oxygen and readily reacts with it to form a firm and dense passive oxide film on its surface. The large-diameter titanium stop valves produced by Shanghai Rongtai feature a compact structure, reasonable design, good valve rigidity, smooth channels and a small negative flow coefficient. The drive mode can be manual, electric or gear transmission. It has been widely applied in the chlor-alkali industry, soda ash industry, pharmaceutical industry, fine chemical industry, production of basic organic acids and inorganic salts, nitric acid industry, etc.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
