Product Code : VF--ZCC-229-CU

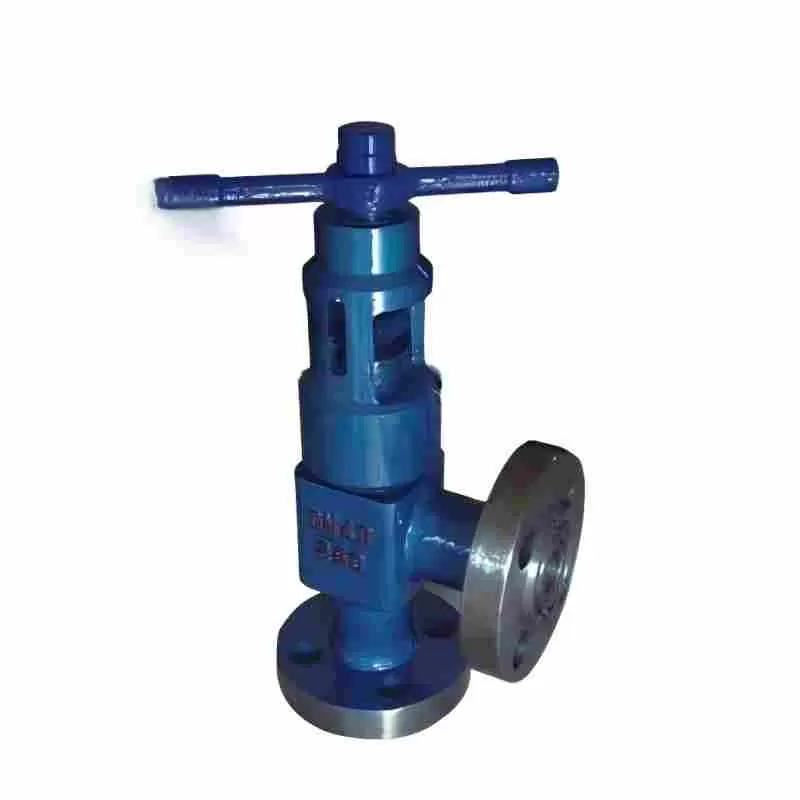

Product Name: High-pressure Balanced Angle Stop Valve
Product models: J47Y, J67Y
Nominal diameter: DN25 - DN150
Structural form: Balanced type
Nominal pressure: 16.0MPa to 32.0MPa to 45.0MPa
Connection methods: flange, welding, clamp
Applicable temperature: -29 ° C to +550 ° C
Drive mode: Handwheel
Valve body material: WCB, cast steel, carbon steel
Standards: National Standard GB, German DIN, American API, ANSI
Applicable media: water, oil, steam, gas, liquid
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
The J47Y and J67Y high-pressure balanced Angle stop valves are optimized and designed in reference to API and relevant standards. They feature a novel structure, with several holes on the valve disc communicating with the upper chamber, achieving self-balancing of the upper and lower pressures. The adoption of composite packing ensures reliable sealing and low friction. The sealing adopts a live valve seat structure. Surfacing hard alloy. Valves can be installed on horizontal or vertical pipes.
Product Features
It is designed by referring to API and related standardization, with a novel structure.
The valve disc has several holes communicating with the upper chamber to achieve self-balancing of the upper and lower pressures.
The adoption of composite packing ensures reliable sealing.
The sealing adopts a live valve seat structure and is surfacing with hard alloy.
Valves can be installed on both horizontal and vertical pipes.
Design standard
Flange standards: GB12235-1994, GB/T9113-2000.
Structural length: GB/T15188.1-1994, GB/T12221-1989
Valve test: GB/T13927-1992.
The J47Y and J67Y high-pressure balanced Angle stop valves are optimized and designed in reference to API and relevant standards. They feature a novel structure, with several holes on the valve disc communicating with the upper chamber, achieving self-balancing of the upper and lower pressures. The adoption of composite packing ensures reliable sealing and low friction. The sealing adopts a live valve seat structure. Surfacing hard alloy. Valves can be installed on horizontal or vertical pipes.
