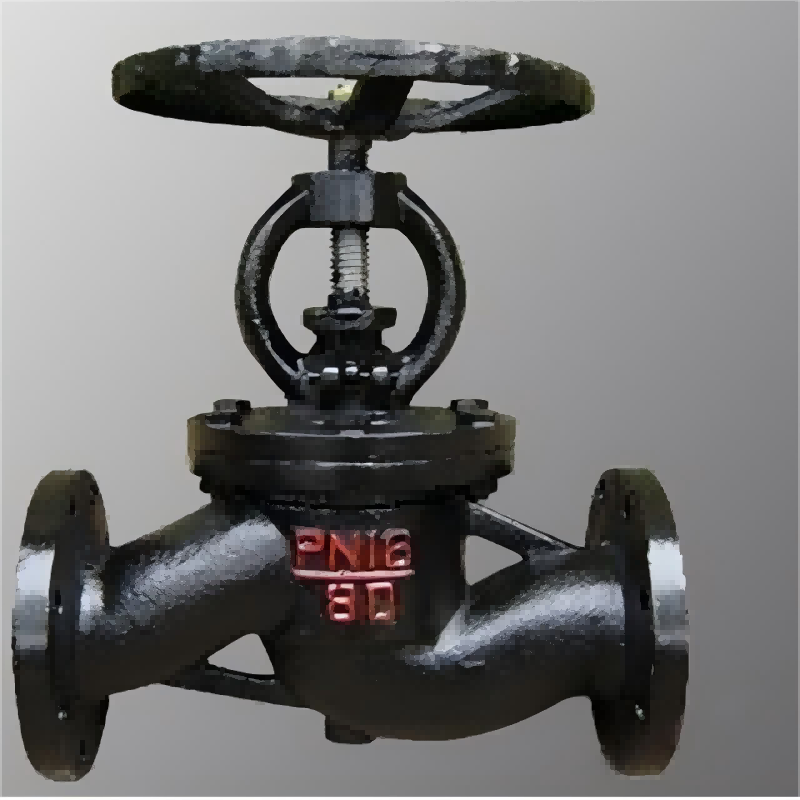

J41T cast iron stop valve,cast iron stop valve,stop valve

The opening and closing part of the J41T cast iron stop valve is a stopper disc. The sealing surface is flat or conical, and the disc moves linearly along the centerline of the valve seat. The opening or closing stroke of the valve stem of the stop valve is relatively short, and it has a cut-off action, making it suitable for use as a medium cut-off, regulation and throttling device.

Cast iron stop valves are of the forced sealing type. Therefore, when the valve is closed, pressure must be applied to the valve disc to force the sealing surface not to leak. Since the emergence of self-sealing valves, the medium flow direction of stop valves has changed to enter the valve cavity from above the valve disc. At this time, under the action of medium pressure, the force required to close the valve is small, while the force required to open the valve is large, and the diameter of the valve stem can be reduced accordingly. Meanwhile, under the action of the medium, this type of valve is also relatively tight.

Cast iron stop valves are a commonly used type of shut-off valve, mainly used to open or cut off the medium in pipelines, and are generally not used to regulate flow. Cast iron stop valves have a wide range of applicable pressures and temperatures, but they are generally used for medium and small diameter pipelines. Compared with gate valves, globe valves have a simpler structure, are easier to maintain, their sealing surfaces are less prone to wear and scratches, have better sealing performance, a longer service life, a smaller disc travel during opening and closing, a shorter opening and closing time, and a smaller valve height. It is used in industries such as water supply and drainage, gas, power, metallurgy, petroleum, chemical engineering, light textile and urban construction, and is used for opening and closing on pipelines carrying steam, water and oil media.

Performance characteristics of J41T cast iron stop valve

1. It is applicable to liquid and gas medium pipelines and equipment, and is used for cutting off and connecting the medium in the pipeline.

It features good sealing, convenient operation, excellent sealing surface, long service life and is less likely to cause water hammer.

It is used in industries such as water supply and drainage, gas, power, metallurgy, petroleum, chemical engineering, light textile and urban construction, and is used for opening and closing on pipelines carrying steam, water and oil media.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
