Product Code : VF--ZCC-227-CU

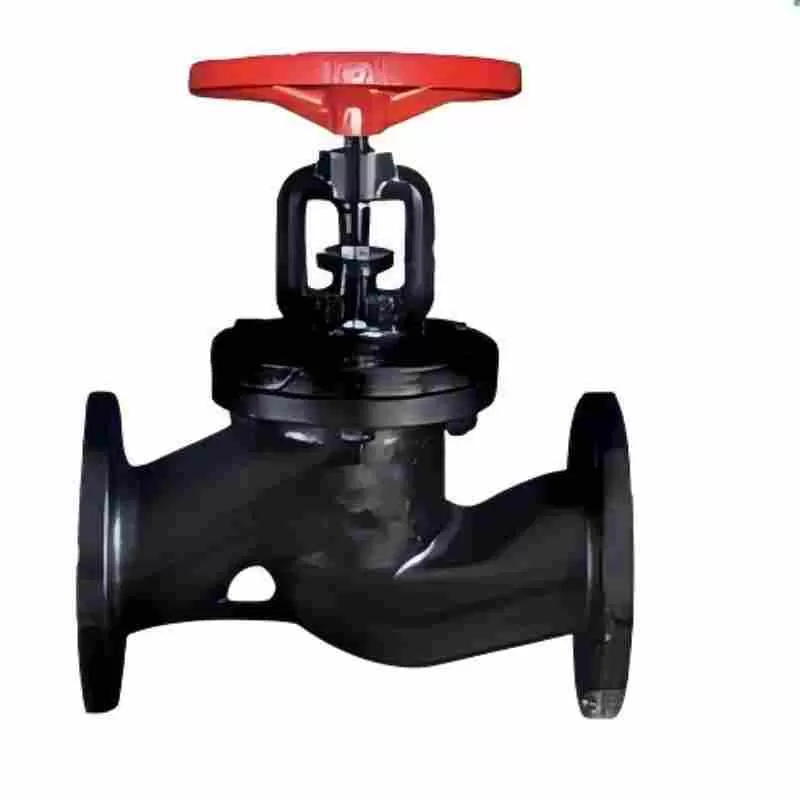

Product Name: Cast Iron Flange Stop Valve
Product Model: J41T
Nominal diameter: DN15 - DN600
Structural form: Cut-off type
Nominal pressure: 1.6MPa
Connection method: Flange
Applicable temperature: -29 ° C to +200 ° C
Drive mode: handwheel, bevel gear, pneumatic, electric
Valve body material: cast iron, HT200, HT250, ductile iron. Standards: National standard GB, German DIN, American API, ANSI
Applicable media: water, oil, steam, gas
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Features
The J41T cast iron flange stop valve is a commonly used shut-off valve, mainly used to open or cut off the medium in the pipeline. Generally, it is not used to regulate flow. The stop valve is applicable to a wide range of pressure and temperature, but is generally used for medium and small diameter pipelines. Compared with gate valves, globe valves have a simpler structure, are more convenient to manufacture and maintain, have a sealing surface that is less prone to wear and scratches, have better sealing performance, a longer service life, a smaller valve disc travel during opening and closing, a shorter opening and closing time, and a smaller valve height. It is widely used in industries such as water supply and drainage, gas, power, metallurgy, petroleum, chemical engineering, light textile and urban construction, and is used for opening and closing on pipelines carrying steam, water and oil media.
Product advantages
1. Low flow resistance. The medium channel inside the valve body is straight through, and the medium flows in a straight line with low flow resistance.
2. It is relatively easy to open and close. Compared with the stop valve, because whether it is open or closed, the movement direction of the gate plate is always perpendicular to the flow direction of the medium.
3. It has a large height and a long opening and closing time. The opening and closing stroke of the gate plate is relatively large, and the lowering is carried out through a screw.
4. Water hammer is not likely to occur. The reason is that the closure time is long.
The structure of the J41T cast iron flange stop valve is relatively simple, and it is convenient to manufacture and maintain. The sealing surface is not prone to wear or scratches, has good sealing performance, a long service life, a small valve disc travel during opening and closing, a short opening and closing time, and a small valve height. It is widely used in industries such as water supply and drainage, gas, power, metallurgy, petroleum, chemical engineering, light textile and urban construction, and is used for opening and closing on pipelines carrying steam, water and oil media.
