Product Code : VF--ZCC-218-CU

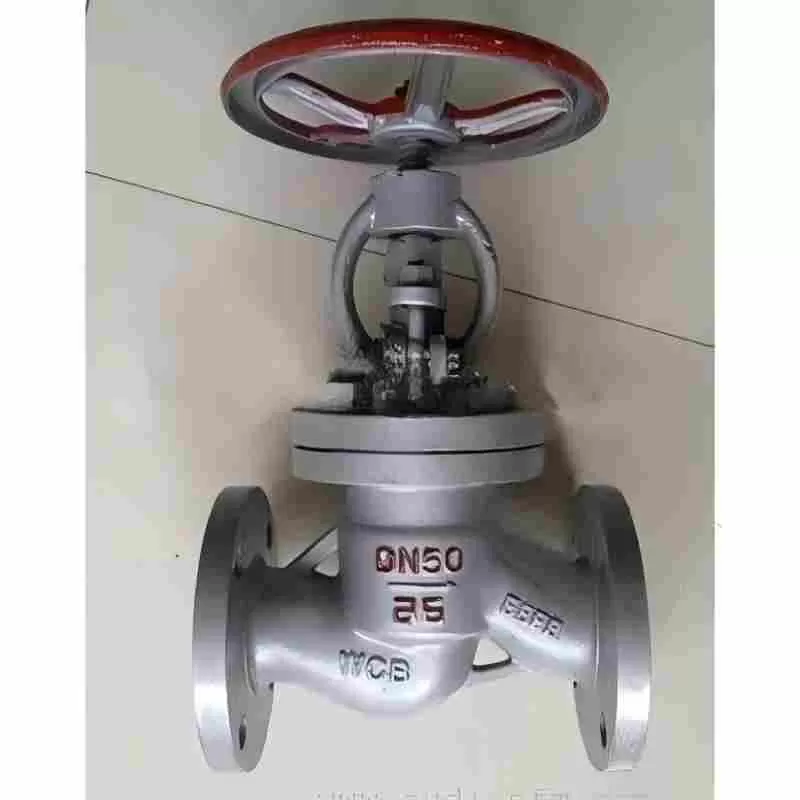

Product Name: Special Stop Valve for Liquefied Gas
Product Model: J41N
Nominal diameter: DN15 - DN300
Structural form: Cut-off type
Nominal pressure: 2.5MPa to 4.0MPa
Connection method: Flange
Applicable temperature: -29 ° C to +570 ° C
Drive mode: Handwheel, bevel gear
Valve body material: WCB, cast steel, carbon steel, stainless steel \ nStandards: National standard GB, German DIN, American API, ANSI
Applicable media: natural gas, liquefied gas, gas
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
The J41N liquefied gas dedicated stop valve adopts elastic formed polytetrafluoroethylene as packing. The sealing performance of the packing increases with the rise of medium pressure and it also has a reverse sealing function. It is suitable for high and medium pressure gas transmission pipelines.
The J41N liquefied gas dedicated stop valve adopts elastic formed polytetrafluoroethylene as packing. The sealing performance of the packing increases with the rise of medium pressure and it also has a reverse sealing function. It is suitable for high and medium pressure gas transmission pipelines.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
