Product Code : VF--ZCC-WS40-CU

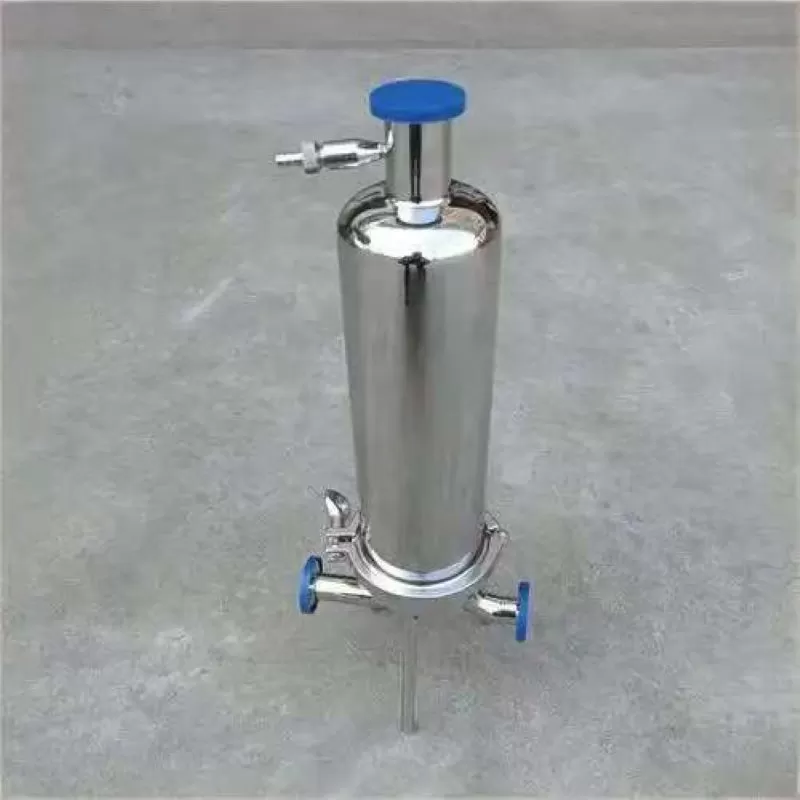

Sanitary grade microporous filter
Product diameter: DN10-DN300
Product pressure: 10bar
Product material: 304/316L
Connection type: Clamp, welding, thread,3A BPE DIN SMS IDF ISO
Product sealing: EPDM, FPM, HNBR
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Details
Sanitary grade microporous filters have a wide range of applications. In the pharmaceutical industry, it can ensure the purity of the medicinal liquid, effectively filter out tiny particles and bacteria, and provide safety guarantees for the production of drugs and medical processes. In the field of chemical engineering, it can be used for the filtration of various chemical raw materials and products, improving product quality and preventing the influence of impurities on chemical reactions and production equipment. In the electronics industry, it can filter out tiny particles in ultrapure water, meeting the high water quality requirements for the production of electronic products. The beverage and fruit wine industries rely on it to remove impurities and microorganisms, improve the taste and quality of products, and extend the shelf life of products. In biochemical treatment, it helps to separate and purify biological products and related liquids. In the field of environmental protection, it can be used in sewage treatment and other links to remove harmful substances and particles. It can be said that it is an indispensable key equipment in industries such as medicine, chemical engineering, electronics, beverages, fruit wine, biochemical treatment, and environmental protection.
Characteristics
High-efficiency filtration performance
It can filter out particles and bacteria larger than 0.1μm in liquids and gases, with extremely high filtration accuracy, ensuring that the filtered medium meets very high purity requirements.
It offers a variety of filtration pore size options, including 0.1μm, 0.22μm, 1μm, 3μm, 5μm, 10μm, etc., which can be precisely matched according to different filtration requirements.
Fast filtration speed
While ensuring high filtration accuracy, it features a relatively fast filtration speed, which can meet the demands of large-scale production and processing, and enhance production efficiency.
High-quality filter element material
The filter element materials are diverse, including polytetrafluoroethylene (PTFE), polyvinyl chloride (PE), Nylon (Nylon), polypropylene (PP), etc. These materials have excellent chemical stability and corrosion resistance, and can adapt to different filtration media and working conditions.
Filter elements made of different materials also have their own characteristics. For instance, polytetrafluoroethylene has excellent acid and alkali resistance and high-temperature resistance, while nylon has good flexibility and mechanical strength, providing users with more choices.
Flexible filter configuration
The filter cartridges come in various specifications such as 1-core, 3-core, 5-core, and 7-core. The height of the filter barrels is available in multiple options including 10", 20", 30", and 40". They can be combined and configured according to actual production needs and site conditions to meet the requirements of different flow rates and filtration areas.
Reliable filter element interface
It offers multiple filter element interface methods such as 226 flat nozzle type and 222 insertion type to ensure the sealing and stability of filter element installation and prevent leakage and other problems during the filtration process.
Good inner surface treatment
The inner surface treatment roughness of the filter barrel is Ra < 0.2μm, with a smooth surface that is not prone to residual impurities and microorganisms, and is easy to clean and maintain, meeting the hygiene standards.
Sturdy filter bucket material
The filter barrel is made of ASTM304/316L stainless steel, which features excellent strength and corrosion resistance, and can operate stably for a long time in various harsh environments.
Application field
Sanitary grade microporous filters have a wide range of applications. In the pharmaceutical industry, it can ensure the purity of the medicinal liquid, effectively filter out tiny particles and bacteria, and provide safety guarantees for the production of drugs and medical processes. In the field of chemical engineering, it can be used for the filtration of various chemical raw materials and products, improving product quality and preventing the influence of impurities on chemical reactions and production equipment. In the electronics industry, it can filter out tiny particles in ultrapure water, meeting the high water quality requirements for the production of electronic products. The beverage and fruit wine industries rely on it to remove impurities and microorganisms, improve the taste and quality of products, and extend the shelf life of products. In biochemical treatment, it helps to separate and purify biological products and related liquids. In the field of environmental protection, it can be used in sewage treatment and other links to remove harmful substances and particles
