Product Code : VF--TJCC-TJ39-CU
Product Name: Stainless Steel Steam Pressure Reducing Valve
Product Model: Y43H
Nominal diameter: DN15 - DN500
Structural forms: Piston type, pilot type
Working pressure: 1.0MPa - 6.4.0MPa - 16.0MPa \ nConnection method: Flange, thread
Applicable temperature: -20 ° C to +425 ° C
Function and role: Pressure stabilization after pressure reduction
Valve body material: cast iron, cast steel, stainless steel
Manufacturing standards: National standard GB, German DIN, American API, ANSI
Applicable media: water, oil, steam, etc
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

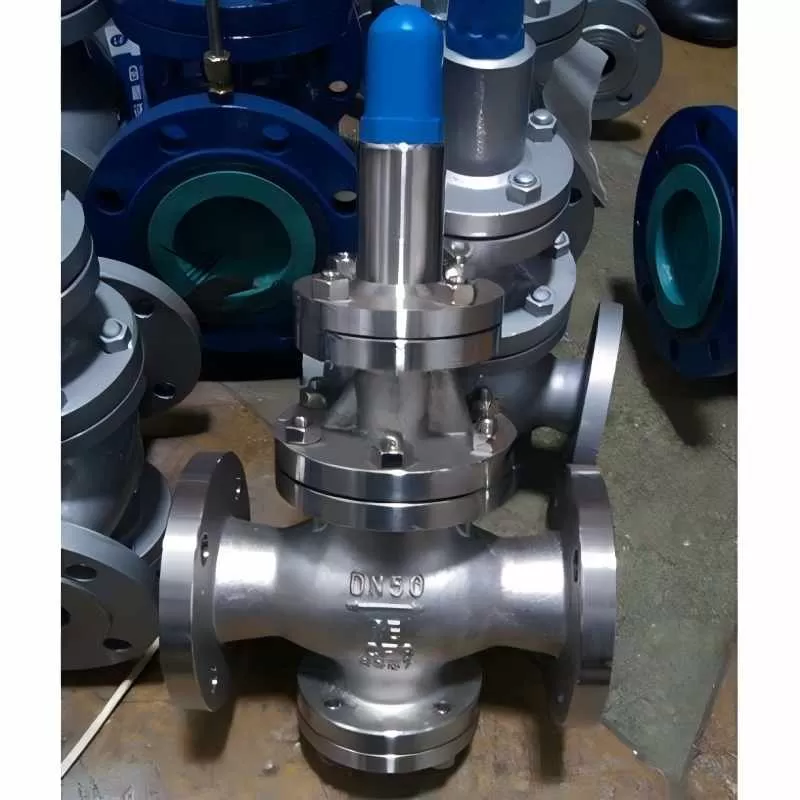

The Y43H stainless steel steam pressure reducing valve. This series of pressure reducing valves belongs to the pilot piston type pressure reducing valve. It consists of two parts: the main valve and the pilot valve. The main valve is mainly composed of parts such as the valve seat, main valve disc, piston and spring. The pilot valve is mainly composed of parts such as the valve seat, valve disc, diaphragm, spring and regulating spring. The outlet pressure is set by adjusting the pressure of the regulating spring. The changes in the outlet pressure are sensed by the diaphragm. The opening and closing of the pilot valve drives the piston to adjust the size of the flow area at the throttling part of the main valve, thereby achieving the function of pressure reduction and pressure stabilization.
The Y43H stainless steel steam pressure reducing valve. This series of pressure reducing valves belongs to the pilot piston type pressure reducing valve. It consists of two parts: the main valve and the pilot valve. The main valve is mainly composed of parts such as the valve seat, main valve disc, piston and spring. The pilot valve is mainly composed of parts such as the valve seat, valve disc, diaphragm, spring and regulating spring. The outlet pressure is set by adjusting the pressure of the regulating spring. The changes in the outlet pressure are sensed by the diaphragm. The opening and closing of the pilot valve drives the piston to adjust the size of the flow area at the throttling part of the main valve, thereby achieving the function of pressure reduction and pressure stabilization.
