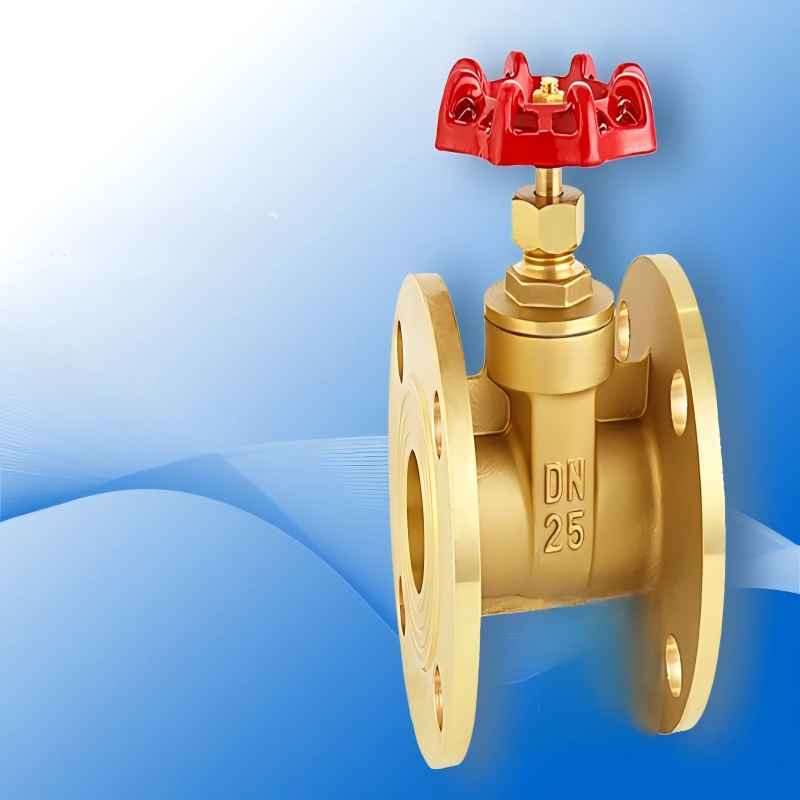

Z45W flanged copper gate valve, flanged copper gate valve,copper gate valve, gate valve

The Z45W flanged copper gate valve is a control component in the pipeline system that drives the gate plate to move perpendicularly along the channel axis by the handwheel to cut off and connect the medium flow. During use, the valve must be fully open or fully closed and cannot be used to regulate the flow rate. When the gate valve is closed, the sealing surface can be sealed only by the pressure of the medium, that is, only by the pressure of the medium to press the sealing surface of the gate against the valve seat on the other side to achieve the sealing of the sealing surface. This is self-sealing. Most gate valves adopt forced sealing, that is, when the valve is closed, an external force is relied on to forcibly press the gate against the valve seat to ensure the sealing performance of the sealing surface.

Performance features of Z45W flanged copper gate valve

It adopts a pressure cap structure, which is convenient for adjustment.

2. The valve body and valve cover are sealed with gaskets, making disassembly and maintenance convenient.

3. The valve stem and the valve plate are connected by trapezoidal threads, enabling the gate plate to adjust itself and ensuring good sealing

The Z45W flanged copper gate valve is widely used in the following fields

Construction, power and municipal: used in plumbing systems and transformer oil systems, etc

Petroleum, chemical and pharmaceutical industries: Applicable to pipelines of steam, water and oil media with nominal pressure ≤1.0MPa

Water conservancy and gas systems: Used as a valve, it has good fluidity and opening and closing performance

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
