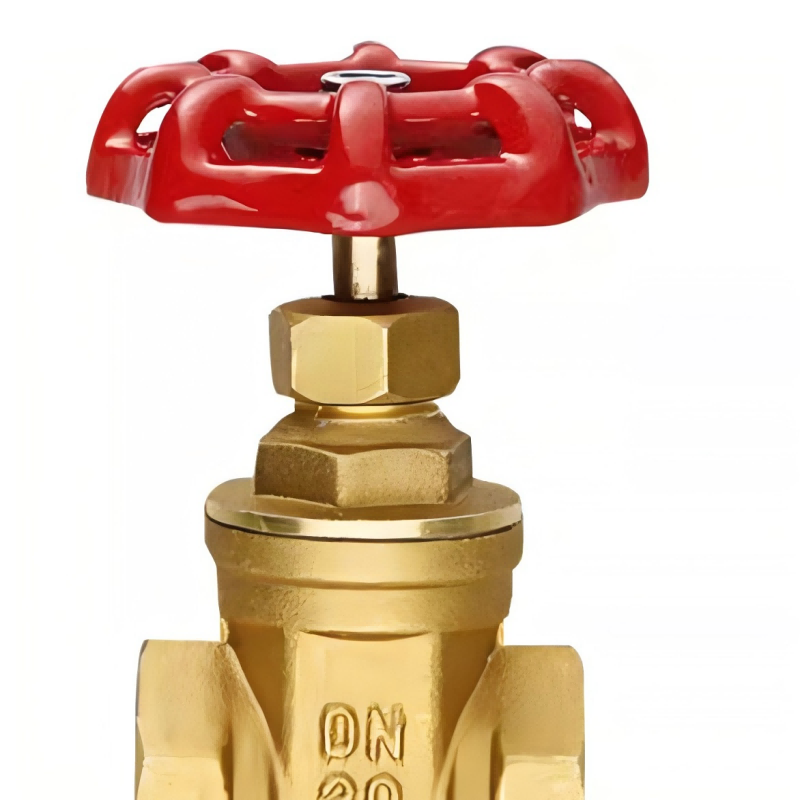

Z15W threaded copper gate valve, threaded copper gate valve, copper gate valve,gate valve

The Z15W threaded copper gate valve is a control component in the pipeline system that drives the gate plate to move perpendicularly along the channel axis by the handwheel to cut off and connect the medium flow. During use, the valve must be fully open or fully closed and cannot be used to regulate the flow rate.

When the threaded copper gate valve is closed, the sealing surface can be sealed only by the pressure of the medium, that is, only by the pressure of the medium to press the sealing surface of the gate against the valve seat on the other side to achieve the sealing of the sealing surface. This is self-sealing. Most gate valves adopt forced sealing, that is, when the valve is closed, an external force is relied on to forcibly press the gate against the valve seat to ensure the sealing performance of the sealing surface.

Performance features of Z15W threaded copper gate valve

1. It adopts a pressure cap structure for convenient adjustment.

2. The valve body and valve cover are sealed with gaskets, making disassembly and maintenance convenient.

3. The valve stem and the valve plate are connected by trapezoidal threads, enabling the gate plate to adjust itself and ensuring good sealing.

The Z15W-16T copper gate valve can only perform fully open and fully closed functions and cannot be used for regulation and throttling. Applicable to media such as oil, water and steam. It can be widely applied in fields such as chemical engineering, petrochemical and petroleum, papermaking, mining, food, water supply and drainage, municipal services, mechanical equipment matching, electronics industry, and urban construction. It is applicable to various light and heavy industries as well as building pipelines.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
