Product Code : VF--ZCC-Z80-CU
Product Model :PZ941H
Product diameter (DN):50-500(mm)
Product pressure (PN):1.6-4.0(Mpa)
Design and Manufacture :GB12234 GB3595
Structural length :GB12221
Pressure and temperature grade :GB9131 JB/T74 HG20604
; Connection to Fran :JG/T79 GB9113 HG20593-20635;
Testing and Inspection :GB13927 JB/T9092
On the pipelines of the slurry discharge system of thermal power stations and water conservancy projects with working temperatures ranging from 0 to 100℃, cut off or connect the ash-water mixture and slag-water mixture in the pipelines
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

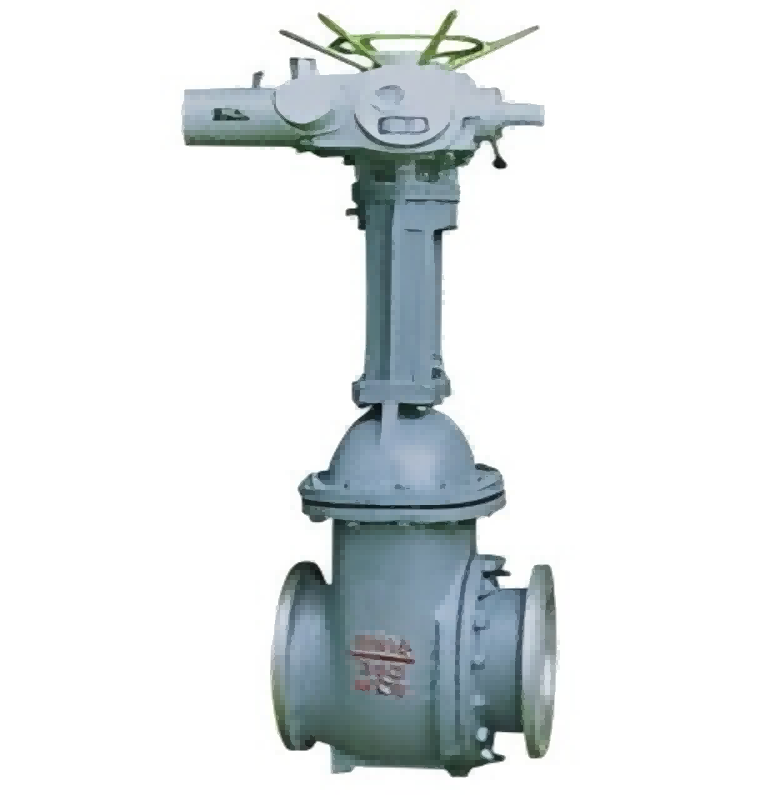

The PZ941H electric slag discharge gate valve is suitable for the slurry discharge system pipelines of thermal power station water conservancy systems and water conservancy projects with a working pressure of 1.6 to 6.4MPa and a working temperature of 0 to 100℃, to cut off or connect the ash-water mixture and slag-water mixture in the pipeline
things
Product structure features:
1. Middle flange bolt connection is adopted, and the two ends of the branch pipe are flange connection or butt welding connection.
2. The opening and closing parts adopt a semi-sealed pair for forced sealing, which has excellent performance.
3. The sealing pair material is wear-resistant ceramic or wear-resistant alloy, which has strong wear resistance, is durable against erosion and scratches, has low friction, and ensures reliable sealing.
4. The flow channel structure at the valve body outlet is reasonable, with no slag accumulation, flexible opening and closing, and no jamming.
5. The valve stem has undergone quenching and tempering as well as surface nitriding treatment, which endowing it with excellent corrosion resistance, scratch resistance and wear resistance.
6. Rolling bearings are set for medium and large diameters, making opening and closing easy.
Product reference standard:
Design and Manufacture :GB12234 GB3595 Structural length :GB12221 Pressure and temperature grade :GB9131 JB/T74 HG20604 Connection to Fran :JG/T79 GB9113 HG20593-20635; Test and Inspection
GB13927 JB/T9092;
The PZ941H electric slag discharge gate valve is suitable for the slurry discharge system pipelines of thermal power station water conservancy systems and water conservancy projects with a working pressure of 1.6 to 6.4MPa and a working temperature of 0 to 100℃, to cut off or connect the ash-water mixture and slag-water mixture in the pipeline
things
