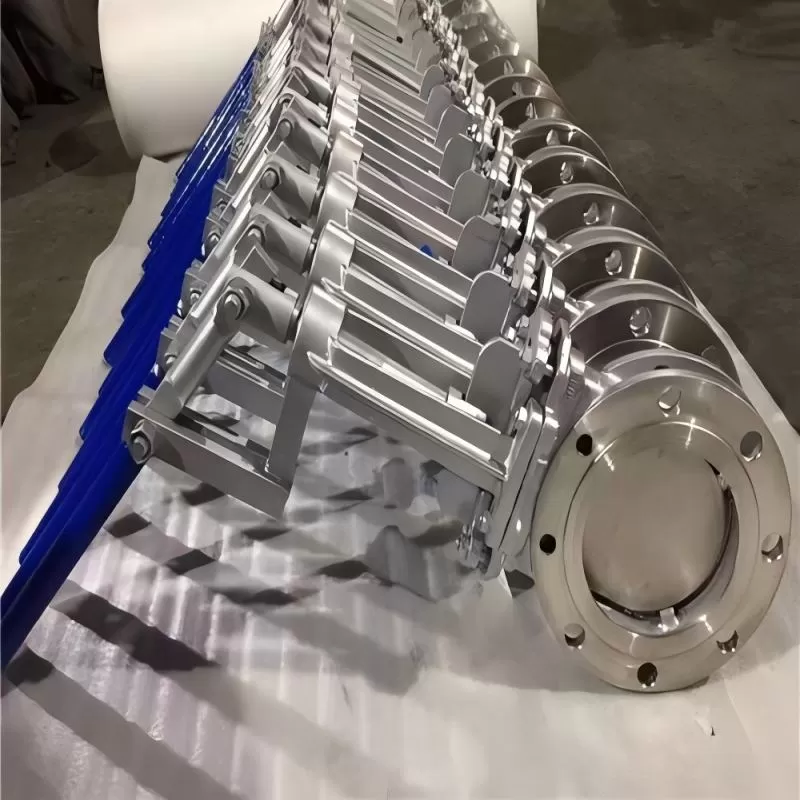

PZ73H- Lever knife Gate valve, Lever knife Gate valve,Gate valve

The PZ73H- lever-type knife gate valve can be manually opened and closed quickly, is easy and flexible to operate, and is suitable for small-diameter pipelines. The knife gate valve is suitable for powder material transportation and pipeline transportation with fast manual opening and closing speed. The gate plate and the sealing ring can be opened and closed without gap, and it has the function of self-cleaning after cutting off. Its structure is divided into soft seal and hard seal. The soft seal is composed of an movable valve seat and a replaceable rubber ring, which can conveniently replace the worn sealing ring. The bracket is also made by casting, which makes the valve have better firmness and usability. It is a commonly used product in the fields of papermaking, industry and mining, sewage treatment, chemical engineering and food.

Detailed product Introduction of PZ73H- Lever Knife Gate Valve

The sealing structure of the knife gate valve adopts a spherical lining between a metal sealing ring and the valve seat cover. When in operation, the sealing ring can make appropriate spherical arc-shaped sliding within the valve body under different force conditions. The greater the pressure on the gate plate, the better the sealing performance (the principle is equivalent to the sealing structure of a check valve). This sealing structure can achieve a completely sealed state between the gate plate and the sealing ring, reaching zero leakage. Meanwhile, during the opening and closing process of the gate plate, the sealing surface is in a friction-free area, which increases the service life of the valve. Wear-free opening and closing, only the movable valve seat sealing ring. It is composed of four components: the valve body, the valve seat cover, the metal sealing ring and the gate plate. Two are fixed to form a secondary seal.

When the valve is closed, the gate plate, under the action of the wedge block of the valve body, pushes the gate plate towards the sealing ring, making the gate plate and the sealing ring fit tightly to achieve a complete seal with zero leakage. When the valve is opened, due to the active interlocking of the sealing ring and the spherical surface of the valve seat cover, the compressed sealing ring returns to its original state and moves to the left. At this time, the sealing ring detach from the gate plate, and the gate plate continues to rise. During the rising process of the gate plate, the gate plate and the sealing ring remain in a frictionless state.

The knife gate valve is suitable for powder material transportation and pipeline transportation with fast manual opening and closing speed. The gate plate and the sealing ring can be opened and closed without gap, and it has the function of self-cleaning after cutting off. Its structure is divided into soft seal and hard seal. The soft seal is composed of an movable valve seat and a replaceable rubber ring, which can conveniently replace the worn sealing ring. The bracket is also made by casting, which makes the valve have better firmness and usability. It is a commonly used product in the fields of papermaking, industry and mining, sewage treatment, chemical engineering and food.
