Product Code : VF--ZCC-Z104-CU
Nominal diameter: DN40 - DN900mm.
Applicable temperature Soft seal: (tetrafluoroethylene ≤150℃), (polyurethane ≤80℃), Hard seal: ≤425℃.
Working pressure: 0.6-1.6 MPa
Applicable media: gold ore powder, tailings, pulp, wood pulp, fibers, dust, wastewater from chemical treatment, sedimentation tanks, mineral sand, slag, coal slime, asphalt, silo outlets, fruits, grains, cement slurry, wastewater from slaughterhouses, etc.
The connection forms of the electric knife-type slurry valve include wafer type and flange support ear type. The seals include metal-to-metal hard seal, metal-to-polyurethane seal and reinforced polytetrafluoroethylene soft seal.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

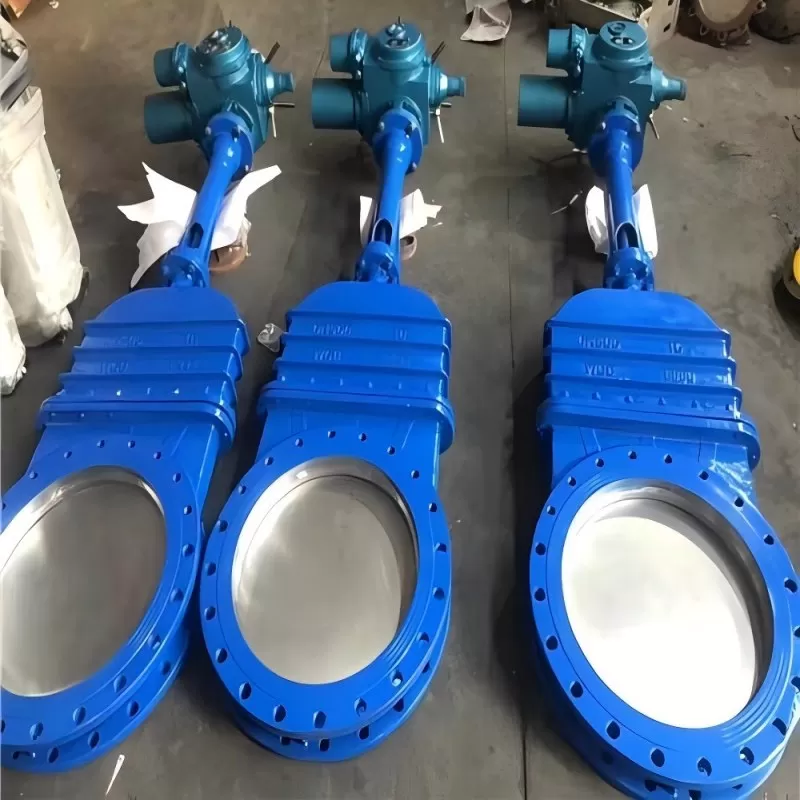

Product Introduction of DMZ973H- Electric Concealed Bar Knife Gate Valve
Compact design, small space occupation, light weight, easy installation, perfect wear-resistant and anti-clogging measures, convenient maintenance and long service life. It is widely applied in fly ash treatment, bulk material transportation, chemical plants, food and beverage, papermaking, pulp industry, industrial wastewater, and urban sewage treatment industries.
Ii. Main Features of DMZ973H- Electric Concealed Bar Knife Gate Valve Product
1. Applicable media: gold ore powder, tailings, pulp, wood pulp, fibers, dust, wastewater from chemical treatment, sedimentation tanks, mineral sand, slag, coal slime, asphalt, silo outlets, fruits, grains, cement slurry, wastewater from slaughterhouses, etc. Applicable temperature Soft seal: (tetrafluoroethylene ≤150℃), (polyurethane ≤80℃), Hard seal: ≤425℃. Working pressure: 0.6-1.6 MPa, nominal diameter: DN40 - DN900mm.
2. The connection forms of the electric knife-type slurry valve include wafer type and flange support ear type. The seals include metal-to-metal hard seal, metal-to-polyurethane seal and reinforced polytetrafluoroethylene soft seal.
Compact design, small space occupation, light weight, easy installation, perfect wear-resistant and anti-clogging measures, convenient maintenance and long service life. It is widely applied in fly ash treatment, bulk material transportation, chemical plants, food and beverage, papermaking, pulp industry, industrial wastewater, and urban sewage treatment industries
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
