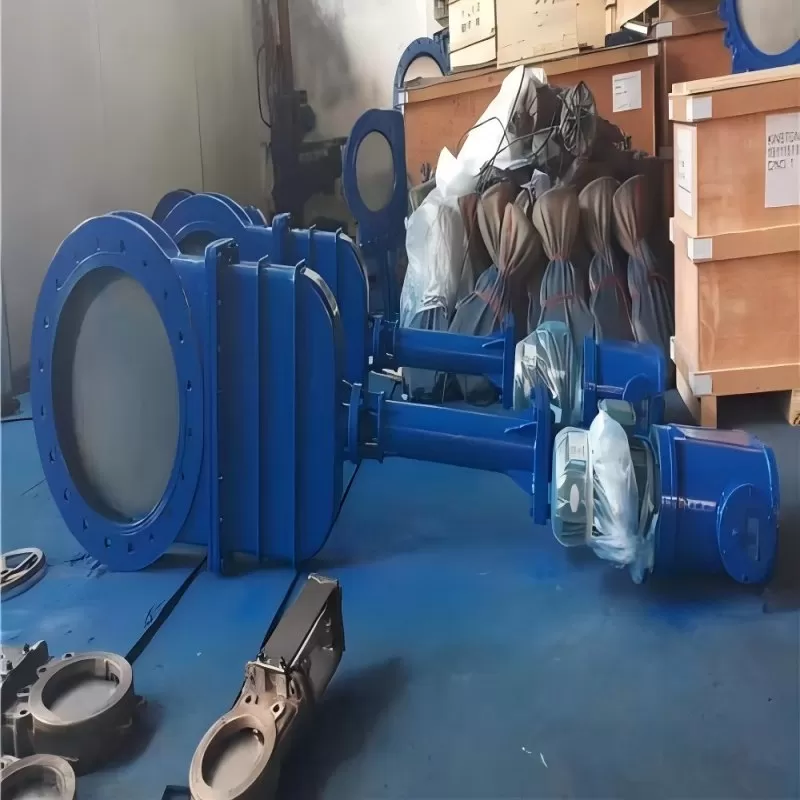

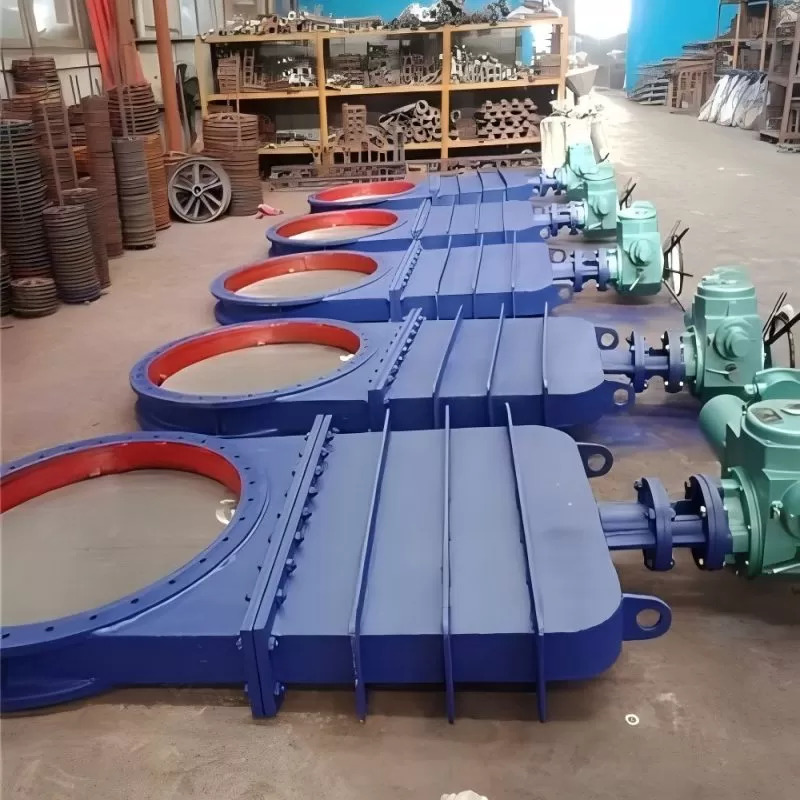

PZ973H- Large-diameter electric concealed stem knife gate valve, Large-diameter electric concealed stem knife gate valve, electric concealed stem knife gate valve, knife gate valve

It is applicable to pipelines carrying media such as pulp containing suspended particles and fibrous materials, sewage, coal slurry, ash slag and cement mixtures, etc. These media are cut off by means of blade-shaped gate plates that can cut fibrous materials. The valve body actually has no chamber. The gate rises and falls in the side guide groove and is tightly pressed against the valve seat by the lugs at the bottom. If a higher medium sealing performance is required, an O-shaped sealing valve seat can be selected to achieve bidirectional sealing. The knife gate valve is easy and flexible to operate, small in size, has a smooth passage, low flow resistance, light in weight, and is easy to install and disassemble. Its nominal size ranges from DN50 to DN800. It can work normally under a working pressure of 0.6MPa to 1.6MPa and a usage temperature of ≤100℃. The knife gate valve has a shearing function on its gate plate, which can scrape off the adhering substances on the sealing surface and automatically remove debris. Stainless steel gate plates can prevent seal leakage caused by corrosion.

Features of PZ973H- Large-diameter Electric Concealed Bar Knife Gate Valve:

The ultra-short structural length saves materials and can significantly reduce the overall weight of the pipeline system.

2. It occupies a small effective space, can effectively support the strength of the pipeline, and can reduce the possibility of pipeline vibration.

3. The gate plate is made of austenitic stainless steel, which greatly enhances its corrosion resistance and effectively prevents seal leakage caused by gate plate corrosion.

4. The upper sealing packing adopts flexible PTFE, ensuring reliable sealing and easy, flexible operation. The gate plate has the function of a knife switch and can effectively cut off all kinds of debris in the medium.

It is applicable to pipelines carrying media such as pulp containing suspended particles and fibrous materials, sewage, coal slurry, ash slag and cement mixtures, etc. These media are cut off by means of blade-shaped gate plates that can cut fibrous materials.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
