Product Code : VF--ZCC-G23-CU
Fully automatic electric Strainers
Product diameter: DN10-800
Product pressure: 0.6-6.4MPa
Product materials: cast steel, stainless steel, alloy steel, etc
Manufacturing standards: Produced in accordance with Chinese GB, Ministry of Machinery JB, Chemical Industry HG, American API, ANSI, German DIN, Japanese JIS, JPI, and British BS. Valve body material: copper, cast iron, cast steel, carbon steel, WCB, WC6, WC9, 20#, 25#, forged steel, A105, F11, F22, stainless steel, 304, 304L, 316, 316L, chromium-molybdenum steel, low-temperature steel, titanium alloy steel, etc. Working pressure: 1.0Mpa-50.0Mpa. Operating temperature: -196℃ to 650℃. Connection methods: internal thread, external thread, flange, welding, butt welding, socket welding, ferrule, clamp. Drive mode: manual, pneumatic, hydraulic, electric
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

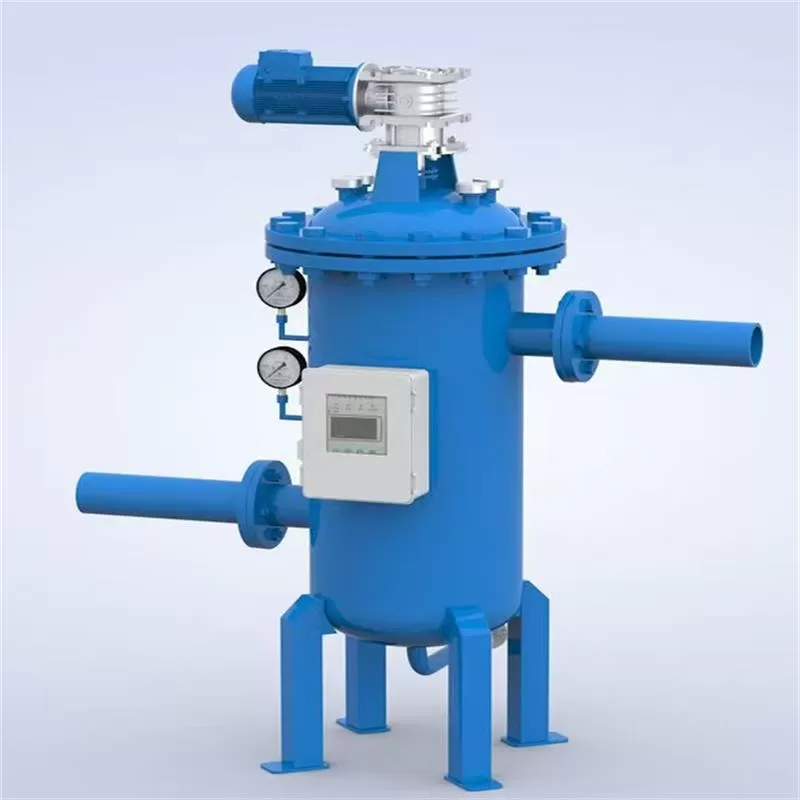

Youdaoplaceholder0 Fully automatic electric filter is a high-efficiency, automated filtration device, mainly used to filter impurities from water to ensure the safe and reliable operation of system equipment.
Structure and Working principle
The internal structure of the fully automatic electric filter includes a pig bristle brush, a stainless steel wire brush, a stainless steel filter screen and transmission parts. When water flows through the filter, mechanical impurities in the water are intercepted by the filter screen. When the impurities accumulated on the surface of the filter screen increase and the pressure difference reaches the set value, the pressure difference switch sends a signal, the PLC issues an instruction, the drive motor starts, the drain valve opens, and the impurities deposited in the filter screen are brushed off by the rotating brush and discharged from the drain port. The ENTIRE process requires no human operation, and the system CAN automatically clean and drain
Features of the fully automatic electric filter:
The sewage discharge time is adjustable, and the sewage discharge pressure difference is also adjustable. Its flexibility is stronger than that of other similar products.
Fully automatic cleaning electric device.
The filtration accuracy can range from 3500 microns to 200 microns.
Simple cleaning method: stainless steel brush type.
Corrosion resistance: Phosphating treatment, resin coating on the steel body. It can also be made into a seawater corrosion-resistant shell or a stainless steel body according to requirements.
Backwashing ensures continuous flow
It provides a standard communication port that can be connected to a host computer and integrated into any monitoring network.
Youdaoplaceholder0 Fully automatic electric filter has a wide range of applications in many fields mainly including environmental protection field, industrial production, food processing, pharmaceutical manufacturing, etc.
The field of environmental protection
In the field of environmental protection, fully automatic electric filters are mainly used for water treatment and air filtration. In terms of water treatment, it can remove impurities and harmful substances from water and improve water quality. In air filtration, it can effectively filter out particulate matter and harmful gases in the air to improve air quality
Industrial production
In industrial production, fully automatic electric filters are typically used to filter impurities and contaminants from liquids or gases. For example, the use of fully automatic electric filters in the production process can improve product quality and production efficiency while reducing production and maintenance costs
one. In addition, the fully automatic high efficiency high-speed filter performs well in the wastewater treatment and circulating water system of metallurgical, chemical, light industry and other plants, suitable for the treatment of raw water and circulating water system with high suspended matter
Food processing
In the food processing industry, fully automatic electric filters can effectively remove impurities and unsafe substances from food, ensuring food safety and quality. Meanwhile, IT can also perform separation and clarification operations on FOOD to improve the taste and quality of food
Pharmaceutical manufacturing
In PHARMACEUTICAL MANUFACTURING, fully automatic electric filter is used to filter various impurities and particulate matter in pharmaceutical raw materials and finished products to ensure the PURITY and safety of pharmaceuticals, extend the validity period of pharmaceuticals and improve their stability
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
