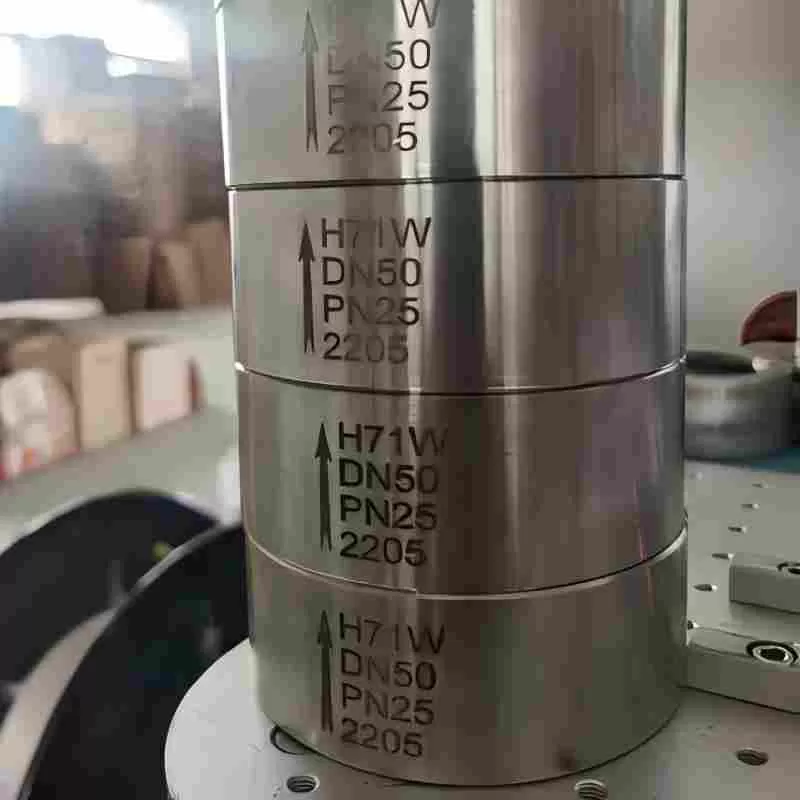

2205 double-phase steel lift wafer check valve, 2205 lift wafer check valve,check valve

Product Code : VF--ZHCC-ZH53-CU

Valve model: H71W

Nominal diameter: DN15-DN250

Nominal pressure: PN16-PN100

Transmission mode: Self-powered

Connection method: Wafer type

Operating temperature (℃) : 350

Medium used: seawater, wastewater

Valve structure: Lifting type

Valve body material: 2205

Valve core material: 2205

Valve stem material: 2205

Valve seat seal: 2205

Process requirements: Acid washing and solid solution


Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Product Product Code Purity Size Contact Us
2205 double-phase steel lift wafer check valve, 2205 lift wafer check valve,check valveVF--ZHCC-ZH53-CUCustomizedCustomized

The 2205 duplex steel lift wafer check valve is available in both soft and hard sealing types. It is suitable for use in acidic or alkaline solutions, seawater, high-concentration chloride ion wastewater and other media. It is widely used in engineering projects in industries such as chemical engineering, petroleum, papermaking, textile printing and dyeing, wastewater and waste gas treatment, electronics, power plants, and seawater desalination. It has excellent resistance to chloride ion corrosion and is resistant to pitting and stress corrosion

The function of a check valve is to prevent backflow, allowing the medium to flow only in one direction and blocking the flow in the opposite direction. Usually, this type of valve operates automatically. The fluid pressure flowing from the inlet direction acts on the valve core of the check valve. When the valve core leaves the valve seat, the valve is opened and the medium passes through the valve. When the medium pressure at the inlet end decreases and is less than the sum of the spring pressure inside the lift wafer check valve and the reverse pressure of the medium, the valve core is pushed towards the valve seat, and the valve core tightly presses against the valve seat. At this time, the valve is closed.

The 2205 duplex steel lift wafer check valve is available in both soft and hard sealing types. It is suitable for use in acidic or alkaline solutions, seawater, high-concentration chloride ion wastewater and other media. It is widely used in engineering projects in industries such as chemical engineering, petroleum, papermaking, textile printing and dyeing, wastewater and waste gas treatment, electronics, power plants, and seawater desalination. It has excellent resistance to chloride ion corrosion and is resistant to pitting and stress corrosion.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
