Product Code : VF--DCC-D100-CU
Application standard
Design standards: GB/T12238, JB/T8527, MSS SP-68, API609;
Structural length: GB/T12221, API6D, ASME B16.10;
Connection flanges: HG, GB, JB, API, ANSI, DIN, JIS
Test standards: JB/T9092, GB/T13927, API598.
Valve material
Valve bodies: TA1, TA2, TA10, Gr2, Gr3;
Butterfly bodies: TA1, TA2, TA10, Gr2, Gr3;
Valve stems: TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5;
Sealing rings: TA1, TA2+PTFE, graphite plate;
Valve parameters
Pressure rating: PN1.0-6.4Mpa, Class150-300Lb;
Nominal diameter: DN50-DN1200, 2"-48"
Drive mode: pneumatic, worm gear, manual, electric;
Connection methods: wafer clamping, flange, welding.
Operating temperature (℃) : 350
Medium used: seawater, concentrated water, urea
Valve structure: Three eccentricities
Valve body material: Titanium
Valve core material: Titanium
Valve stem material: Titanium
Valve seat seal: Titanium material
Application standards: Chinese standard, American standard, German standard, Japanese standard
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

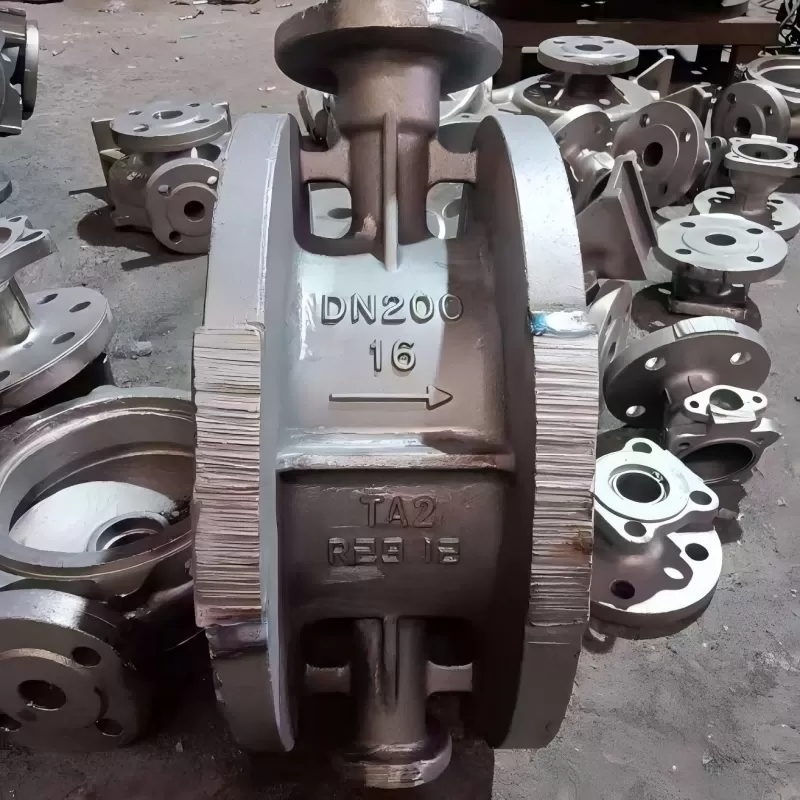

TA2 valve, titanium butterfly valve, titanium triple eccentric hard seal butterfly valve, wafer type, flange type, welded type, resistant to chloride ion corrosion, resistant to acid and alkali corrosion, models D343F, D363F, D643W, D973W, titanium butterfly valve resistant to urea, seawater and concentrated water corrosion.
Titanium, with the element symbol Ti and atomic number 22, is a refractory rare light metal. It is a silvery-white metal, featuring low density, high melting point, high specific strength, strong corrosion resistance, good performance at high and low temperatures, non-magnetism, non-toxicity, and good biocompatibility.
High-purity titanium tetrachloride is processed from ilmenite or rutile as raw materials and then reduced to obtain sponge titanium. The final product is titanium material.
Titanium triple eccentric butterfly valve has three sealing forms (referring to valve plate sealing).
One type is multi-layer metal composite seal (titanium +PTFE);
One type is the all-metal titanium seal.
One type is PTFE sealing, with a PTFE PTFE sealing ring embedded on the valve plate.
Titanium butterfly valves are resistant to corrosion from urea, seawater and concentrated water
