Product Code : VF--DCC-D99-CU
Model: D343Y, D343F, D343W
Pressure: PN1.0-6.4MPA
Diameter: DN50-DN1200
Connection: Flange type
Operation: Worm gear and worm;
Temperature resistance: -20℃ to +425℃.
Main component materials:
Valve body: 2205 duplex steel;
Butterfly plate: 2205 stainless steel
Cover press: 2205
Valve shaft: F51
Worm gear head: 304 stainless steel, cast steel;
Sealing rings: Stainless steel rings, PTFE rings;
Filler: Flexible graphite.
Design standards: GB/T12238-2008, JB/T8527-1997, API609-2004;
Structural length: GB/T12221-2005, ASMEB16.10-2000;
Inspection and Testing: GB/T13927-2008, GB/T26480-2011, API598-2009.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

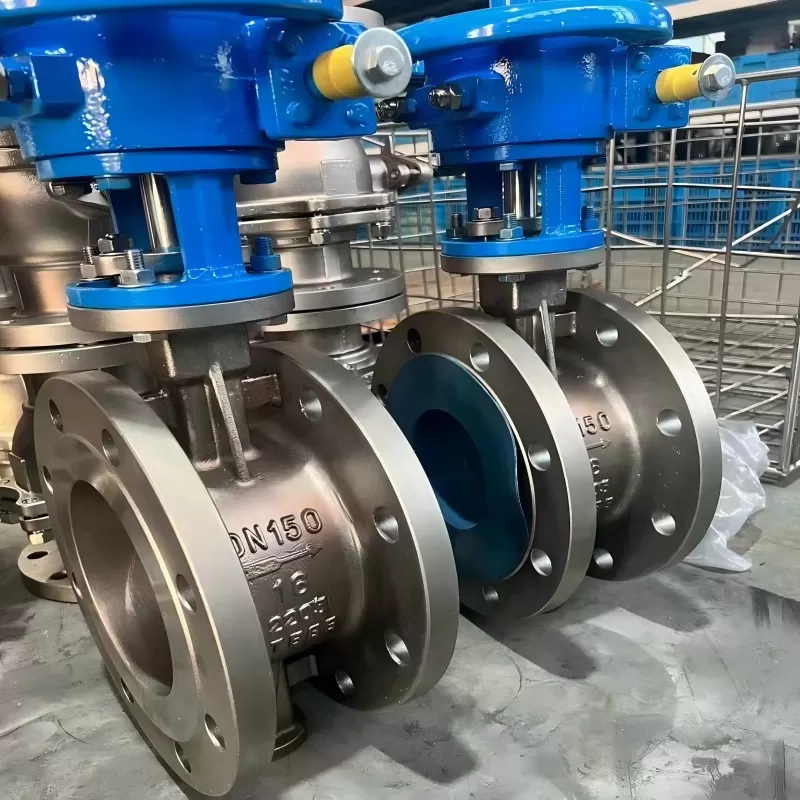

2205 worm gear triple eccentric hard seal butterfly valve, made of 2205 duplex steel, resistant to chloride ion corrosion, flange connection, DN50-DN1200, PN1.0MPA-6.4MPA, model D343F, D343W.
The 2205 worm gear three-eccentric hard-sealed butterfly valve features a valve body, valve plate, cover, valve stem, etc. all made of 2205 duplex steel, which is resistant to chloride ion and acid and alkali corrosion. 2205 duplex steel is a ferritic-austenitic duplex stainless steel with a high content of chromium and molybdenum. It has excellent resistance to pitting corrosion, crevice corrosion and uniform corrosion, as well as a high resistance to stress corrosion cracking. Moreover, it has a high mechanical strength.
The 2205 worm gear three-eccentric hard seal butterfly valve is designed based on the three-eccentric principle, ensuring reliable sealing and meeting various standards. Meanwhile, it features excellent flow characteristics and a regulating function.
2205 duplex steel is a ferritic-austenitic duplex stainless steel with a high content of chromium and molybdenum. It has excellent resistance to pitting corrosion, crevice corrosion and uniform corrosion, as well as a high resistance to stress corrosion cracking. Moreover, it has a high mechanical strength.
The 2205 worm gear three-eccentric hard seal butterfly valve is designed based on the three-eccentric principle, ensuring reliable sealing and meeting various standards. Meanwhile, it features excellent flow characteristics and a regulating function.
