Product Code : VF--DCC-D126-CU
Nominal diameter DN(mm) : 50-2000, 50-1600
The nominal pharmacological PN(MPa) is 0.6, 1.0, 1.6
Sealing test (MPa) : 0.66, 1.1, 1.76
Strength test (MPa) : 0.9, 1.5, 2.4
Applicable temperature: Nitrile rubber :-40℃ to 90℃; Fluororubber :-20℃ to 200℃
Applicable medium Water, air, natural gas, oil products and weakly corrosive fluids
Leakage rate It complies with the GB/T13927-92 standard
Drive mode Worm gear drive, electric, pneumatic, hydraulic
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

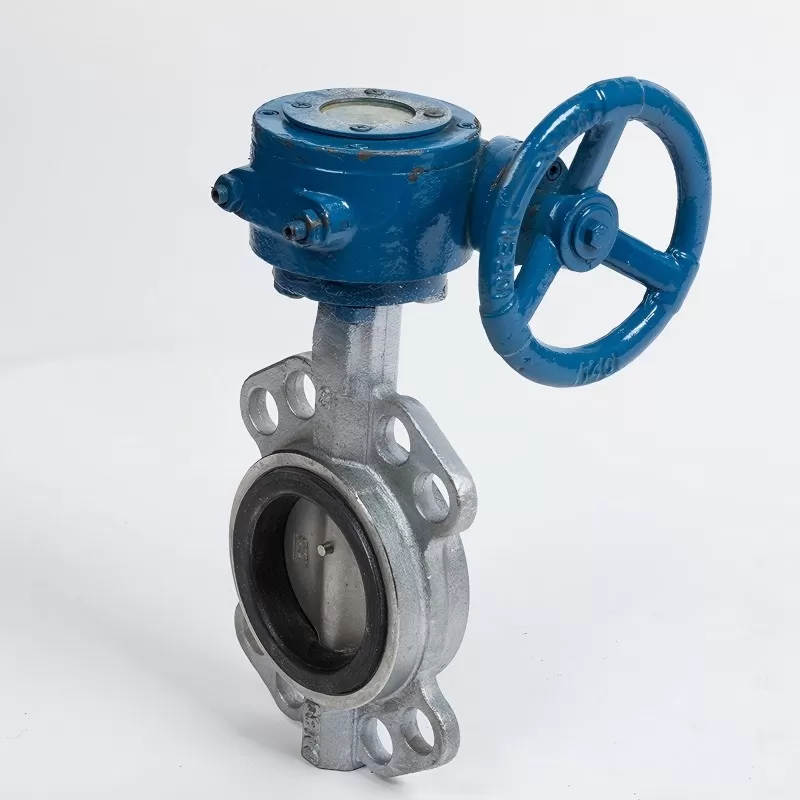

Wafer type butterfly valves, electric butterfly valves, pneumatic butterfly valves, and double eccentric flange type butterfly valves have a compact structure, easy 90° rotation opening and closing, reliable sealing, and a long service life. They are widely used in water supply and drainage systems of water plants, power plants, steel mills, papermaking, chemical, catering and other systems for regulation and shut-off.
Ii. Product Features:
This valve adopts a double eccentric structure and features a sealing function that tightens as it is closed, ensuring reliable sealing performance.
2. The sealing pair material is made of stainless steel and nitrile oil-resistant rubber, which has a long service life.
3. The rubber sealing ring can be located either on the valve body or on the butterfly plate, which can be applied to media with different characteristics for users to choose from.
4. The butterfly plate adopts a frame structure, which features high strength, large flow area and low flow resistance.
5. The overall baking varnish can effectively prevent rust. As long as the sealing valve seat sealing material is replaced, it can be used in different media.
6. This valve features bidirectional sealing function. During installation, it is not controlled by the flow direction of the medium nor affected by the spatial position, and can be installed in any direction.
7. This reader has a unique structure, flexible operation, saves effort and is convenient.
Wafer type butterfly valves, electric butterfly valves, pneumatic butterfly valves, and double eccentric flange type butterfly valves have a compact structure, easy 90° rotation opening and closing, reliable sealing, and a long service life. They are widely used in water supply and drainage systems of water plants, power plants, steel mills, papermaking, chemical, catering and other systems for regulation and shut-off.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
