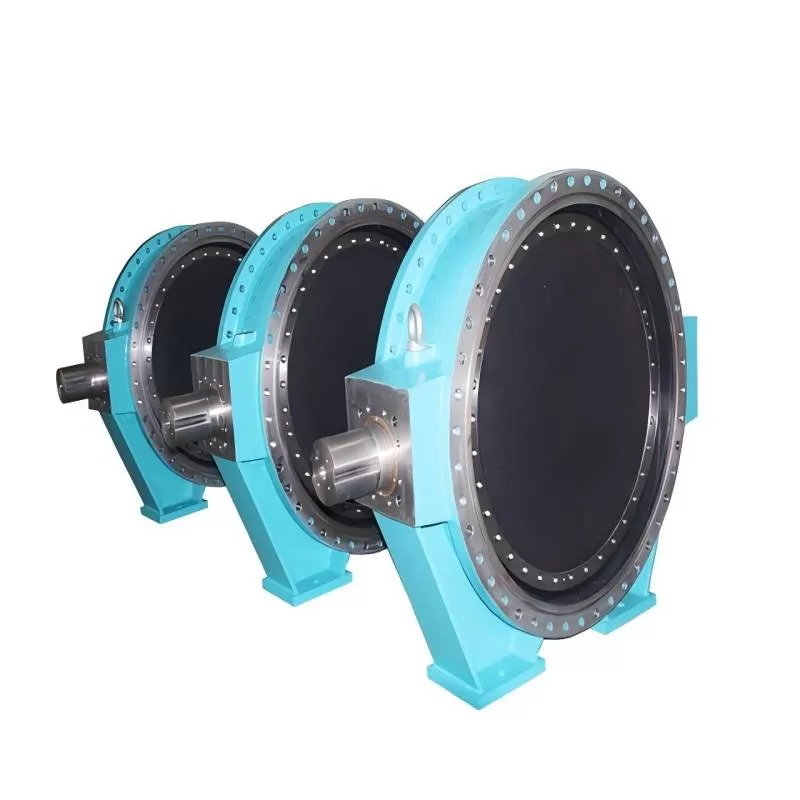

Product Code : VF--DCC-D97-CU
Body materials: carbon steel, stainless steel, alloy steel
Diameter :2" to 120"(DN50 to DN3000)
Pressure range :Class150-600(PN10 - PN100)
Connection methods :RF, RTJ
Operating temperature :-46℃ to +200℃
Operation methods: handle, worm gear, electric, etc
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Main features: Between the opening and closing of the valve, the sealing surface of the butterfly plate gradually deviates, squeezing the sealing surface of the valve seat, thereby reducing mechanical abrasion and damage between the sealing surface of the butterfly plate and the sealing surface of the valve seat. For double eccentric butterfly valves, when the butterfly plate rotates 8 to 12 degrees, the sealing surface of the butterfly plate will completely leave the sealing surface of the valve seat, thereby reducing mechanical abrasion. As it can effectively reduce mechanical scratches, the sealing performance and service life will be effectively enhanced.
Design features
Design standards :API 609, ASME B16.34, GB/T12238, JB/T 8527
Smaller assembly space, light weight and easy to maintain
It has good sealing effect and a long service life
The structure is simple and the switching torque is small
Good flow adjustment capability and highly precise flow characteristic curves
Leakage level :ANSI B 16.104 Ⅵ
Main features: Between the opening and closing of the valve, the sealing surface of the butterfly plate gradually deviates, squeezing the sealing surface of the valve seat, thereby reducing mechanical abrasion and damage between the sealing surface of the butterfly plate and the sealing surface of the valve seat. For double eccentric butterfly valves, when the butterfly plate rotates 8 to 12 degrees, the sealing surface of the butterfly plate will completely leave the sealing surface of the valve seat, thereby reducing mechanical abrasion. As it can effectively reduce mechanical scratches, the sealing performance and service life will be effectively enhanced.
