Product Code : VF--DCC-D116-CU
Product model: D373W/H
Nominal diameter: DN50 - DN1200
Nominal pressure: PN0.6-10.0MPa
Applicable temperature: ≤400℃
Applicable media: water, oil, gas, acetic acid, nitric acid and other media
Valve body material: WCB CF8 CF8 chromium-molybdenum steel, low-temperature steel-nickel alloy
Drive methods: worm gear transmission, electric, pneumatic, hydraulic
Design Specification: GB/T 12238 API609
Structural length: GB/T 12221 API609 ASME B16.10
Flange connection: GB/T 9113, API609, ASME B16.5, ISO5752
Testing and Inspection: GB/T 13927 API598
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

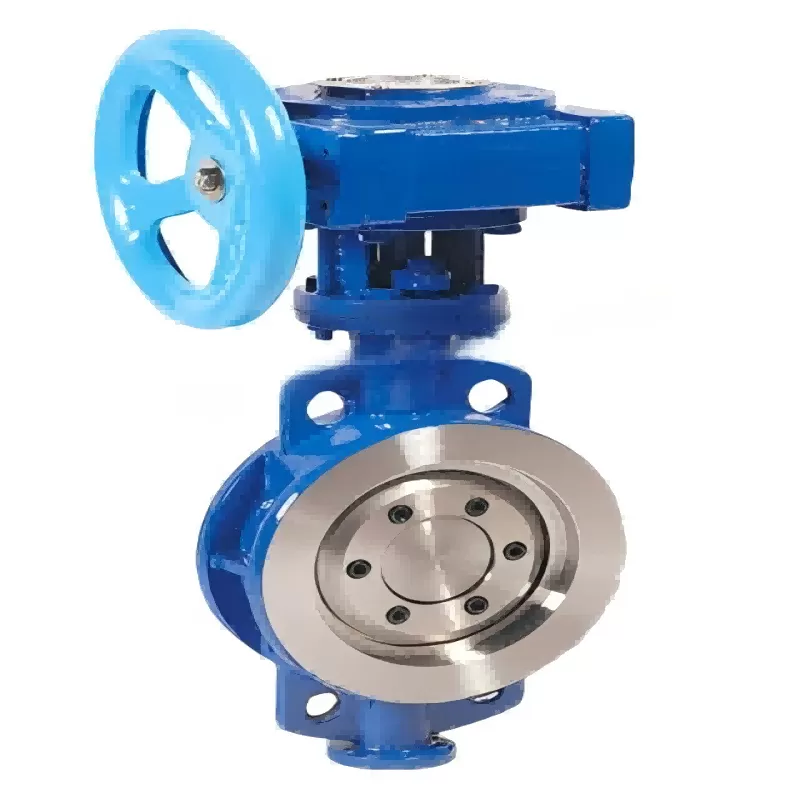

The D373W/H wafer type metal hard seal butterfly valve adopts a precise j shaped elastic sealing ring and a three-eccentric multi-layer metal hard seal structure. It is widely used in industrial pipelines of metallurgy, power, petrochemical, water supply and drainage, and municipal construction where the medium temperature is ≤400℃, for regulating flow and cutting off the fluid.
Product features of D373W/H wafer type metal hard seal Butterfly Valve
The wafer metal multi-layer sealed butterfly valve features a simple wafer connection structure, convenient installation and disassembly, and light weight. The metal hard-sealed butterfly valve adopts a three-eccentric sealing structure. The valve seat and the butterfly plate have almost no wear and have a sealing function that becomes tighter the more you observe.
2. The sealing ring is made of stainless steel, featuring the dual advantages of metal hard sealing and elastic sealing. It maintains excellent sealing performance in both low and high temperatures, and is characterized by corrosion resistance and a long service life.
3. The sealing surface of the butterfly plate is surfacing with cobalt-based hard alloy, which is wear-resistant and has a long service life.
4. The large-sized butterfly plates adopt a quilted structure, featuring high strength, large flow area and low flow resistance.
5. The metal hard-sealed butterfly valve features bidirectional sealing function. During installation, it is not restricted by the flow direction of the medium or affected by spatial position, and can be installed in any direction.
6. The drive unit can be installed in multiple positions (rotating 90° or 180°), which is convenient for users to operate.
The D373W/H wafer type metal hard seal butterfly valve adopts a precise j shaped elastic sealing ring and a three-eccentric multi-layer metal hard seal structure. It is widely used in industrial pipelines of metallurgy, power, petrochemical, water supply and drainage, and municipal construction where the medium temperature is ≤400℃, for regulating flow and cutting off the fluid.
